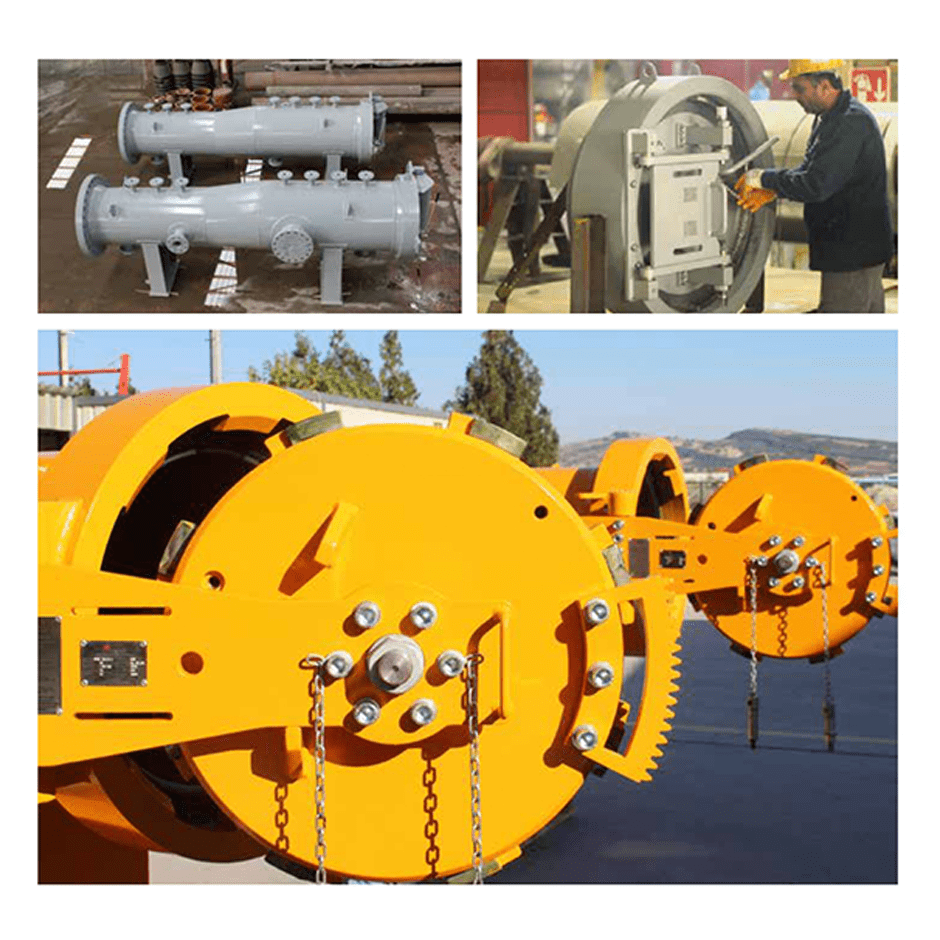

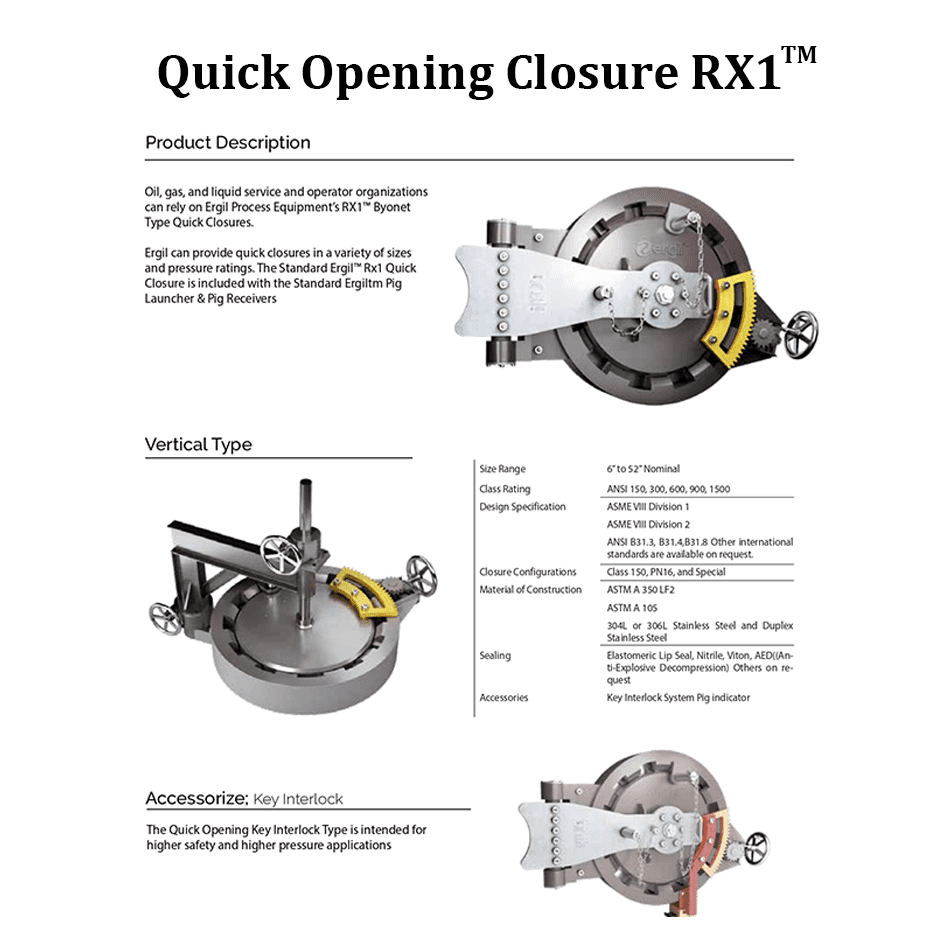

Quick Opening Closure RX1

--------------------------------------

Oil, gas, and liquid service and operator organizations can rely on Ergil Process Equipment’s RX1™ Byonet Type Quick Closures. Ergil can provide quick closures in a variety of sizes and pressure ratings. The Standard Ergil™ Rx1 Quick Closure is included with the Standard Ergiltm Pig Launcher & Pig Receivers.

• Size Range 6” to 52” Nominal
• Class Rating ANSI 150, 300, 600, 900, 1500
• Design Specification ASME VIII Division 1
• ASME VIII Division 2
• ANSI B31.3, B31.4,B31.8 Other international
• standards are available on request.
• Closure Configurations Class 150, PN16, and Special
• Material of Construction ASTM A 350 LF2
• ASTM A 105
• 304L or 306L Stainless Steel and Duplex
• Stainless Steel
• Sealing Elastomeric Lip Seal, Nitrile, Viton, AED((Anti-
• Explosive Decompression) Others on request
• Accessories Key Interlock System Pig indicator

Accessorize; Key Interlock.

The Quick Opening Key Interlock Type is intended for higher safety and higher pressure applications
