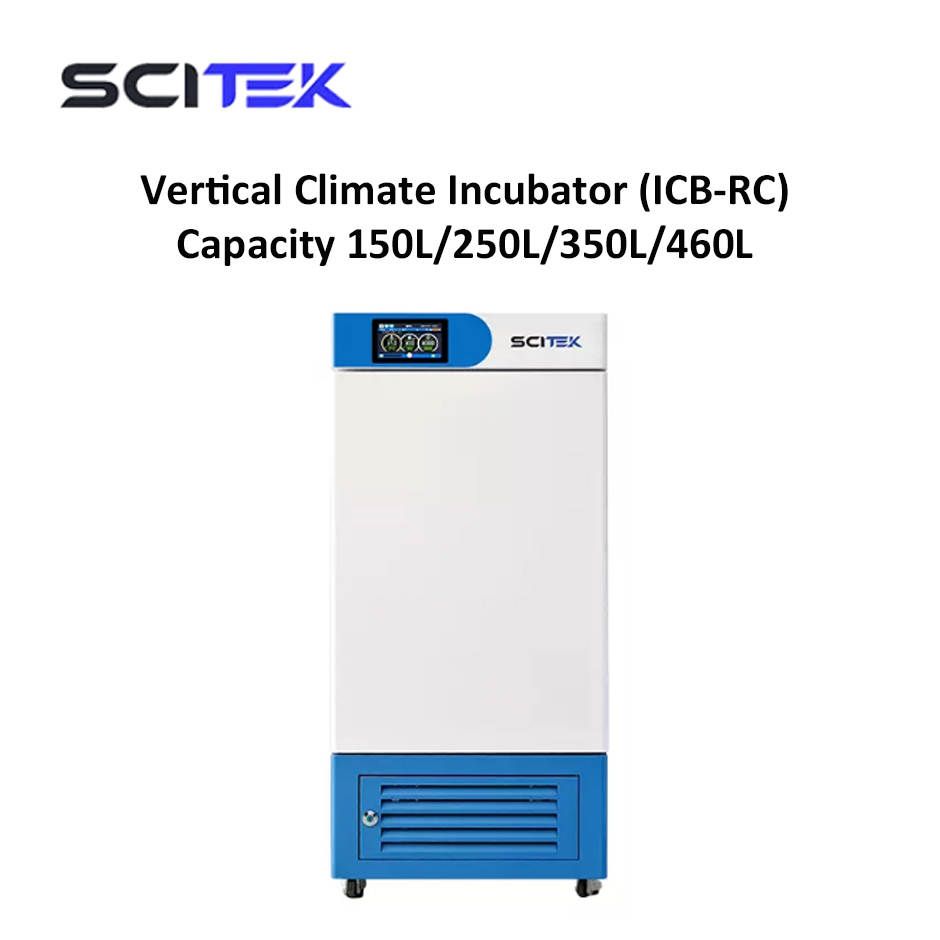

Vertical Climate Incubator (ICB-RC) 150L/250L/350L/460L Scitek
Vertical Climate Incubator (ICB-RC) 150L/250L/350L/460L
Brand SCITEK
Origin CHINA
Climate incubator ICB-RC offers freely programmable and adjustable 99-step temperature and light intensity parameters.
it is energy-efficient and suitable for any project.
Features:
1. Double-door structure, the inner door is made of high-quality tempered glass, observation of samples easily.
2. A controller is installed on the door, and with the 7.0-inch color LCD touch screen.
3. The lighting intensity is adjustable in multiple levels, and it allows for free combination programming and operation of 99 segments of temperature and illuminance parameters.
4. With the functions of data storage, export via a USB flash drive and scheduled power on/off.
5. Top lighting design with full-spectrum LED light sources. It is characterized by high illuminance, low heat radiation, and an extremely long service life.
6. An under-temperature protection function and an independent digital display high-precision over-temperature limiter.
7. Once the temperature exceeds the limit, the heating output will be automatically cut off to ensure the safety of samples and the equipment.
8. It uses a variable-frequency compressor, which offers advantages such as energy conservation, low noise, and no frosting.
9. Built-in humidification system, and with the functions of automatic water intake, water shortage alarm and automatic defrosting function.
-------------------------------------------------------------------------------------------------------------------------------------------------------------
|
Model |
ICB-R150C |
ICB-R250C |
ICB-R350C |
ICB-R460C |
|
|
Capacity |
150 L |
250 L |
350 L |
460 L |
|
|
Circulation Mode |
Forced convection |
||||
|
Internal Size (W×D×H) (mm) |
405×500×755 |
505×545×915 |
585×600×1050 |
650×650×1110 |
|
|
External Size (W×D×H) (mm) |
600×650×1350 |
700×705×1550 |
780×750×1605 |
845×805×1710 |
|
|
Display |
7 inch LCD touch screen |
||||
|
Temperature Range |
With Light: 10~65 °C; Without Light: 0~65 °C |
||||
|
Temperature Resolution |
0.1 °C |
||||
|
Temperature Fluctuation |
±1 °C (The experimental condition is no-load, with an ambient temperature of 20°C and a humidity of 50%RH) |
||||
|
Sensor |
PT100 |
||||
|
Humidity Range |
45~95% RH |
||||
|
Humidity Fluctuation |
±3% |
||||
|
Illuminance (lx) |
0~45000 (supports the input of illuminance) |
||||
|
Illumination Control |
5-level relative illuminance control |
||||
|
Light Source |
4-layer top-mounted LED illumination |
||||
|
Controller |
PID |
||||
|
Timer |
Each segment is 0~999 mins (99×5 segments program) |
||||
|
Material |
Internal |
304 mirror stainless steel |
|||
|
External |
Electrostatic spraying of galvanized sheet |
||||
|
Shelves |
4 |
||||
|
Shelf Loading Capacity |
15 kg |
||||
|
Refrigerant |
R134A (CFC free) |
||||
|
Consumption (W) |
800 |
1000 |
1200 |
1600 |
|
|
Working Environment Temperature |
10~30 °C |
||||
|
Power Supply |
AC 110/220 V, 50/60 Hz |
||||
|
Shipping Size (W×D×H)(mm) |
770×735×1520 |
820×800×1660 |
870×860×1800 |
990×1040×1970 |
|
|
Gross Weight (kg) |
87 |
112 |
139 |
168 |
|
|
Other Functions |
Scheduled power on and off, historical temperature data curve query, U disk data storage and export, deviation correction, menu key locking, power outage compensation, power outage memory, loop self-diagnosis, intelligent defrosting |
||||
|
Safety Device |
Temperature exceeds the limit, the heating will be automatically cut off. In case of a long-term low temperature situation, the refrigeration system will be cut off to protect the samples. Loop self-diagnosis. |
||||
|
Optional Accessory |
Lighting partition, printer |
||||
