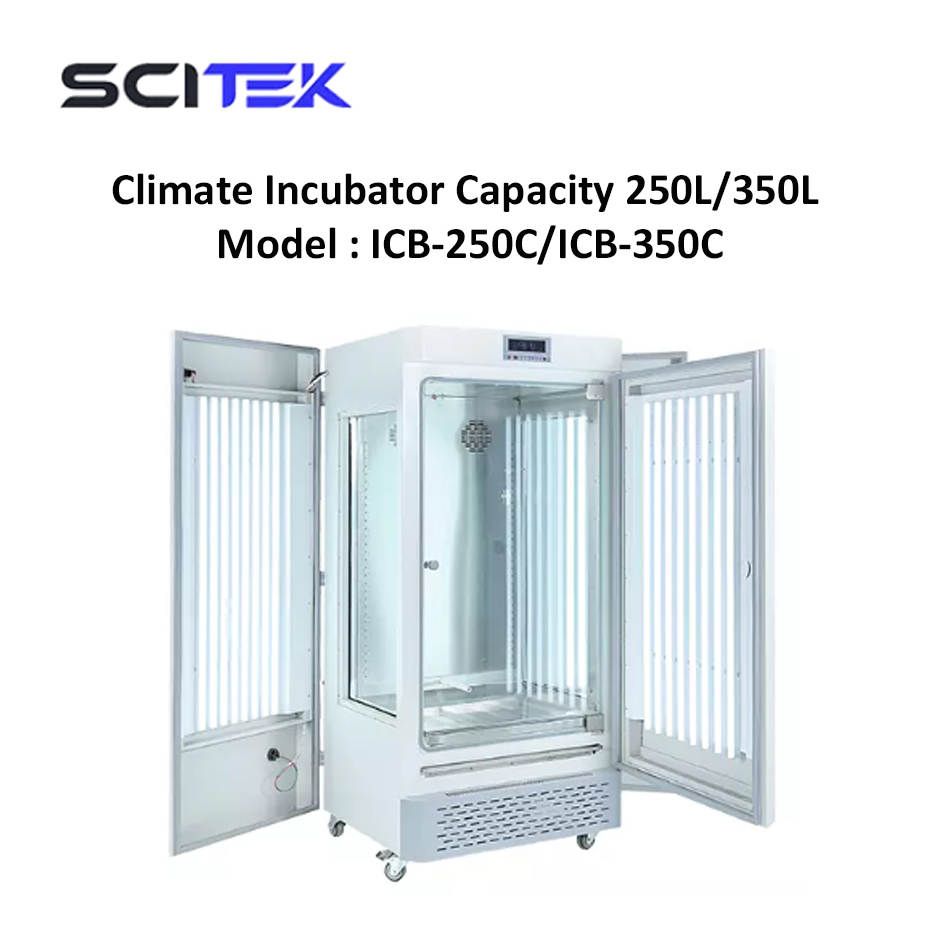

Climate Incubator ICB-250C ICB-350C
Climate Incubator ICB-250C ICB-350C
Climate Chamber Features:
Large-screen LCD display for easy monitoring.
Three-stage electric heating defrosting program control for efficient defrosting.
Back suction and bottom vertical air supply circulation system for optimal airflow.
Laser hollowed-out shelves with round holes for improved ventilation and temperature uniformity.
Adjustable shelves with minimum spacing of 30mm for flexible storage.
Reality:
Equipped with leakage protection device for operator and equipment safety.
Temperature control sound and light alarm system for precise monitoring.
Self-diagnosis function to display fault information for easy troubleshooting.
Waterproof stainless steel heating tube for corrosion resistance and long service life.
|
Model |
ICB-250C |
ICB-350C |
|
|
Capacity(L) |
250 |
350 |
|
|
Circulation Mode |
Forced convection |
||
|
Size(WxDxH) |
Internal (mm) |
555x450x1100 |
550x550x1200 |
|
External (mm) |
680x680x1760 |
780x780x1900 |
|
|
Temperature |
Range (℃) |
With lighting: 10~60; Without lighting: 4~60 |
|
|
Fluctuation (℃) |
±1 |
||
|
Resolution (℃) |
0.1 |
||
|
Uniformity (℃) |
±1 |
±2 |
|
|
Sensor |
PT100 |
||
|
Humidity |
Range |
50~90%RH |
|
|
Stability |
±5 ~ ±7 % |
||
|
Method |
Internal |
||
|
Sensor |
High precision anti-condensation |
||
|
Illumination(Lx) |
0~12000 |
0~15000 |
|
|
Illumination Control |
6-level relative illuminance control |
||
|
Controller |
PID |
||
|
Display |
Large high definition LCD |
||
|
Timer |
1~9999min (Optional 30xsegmentsx100cycles) |
||
|
Material |
Internal |
Stainless steel |
|
|
External |
Cold rolled steel electrostatic spraying exterior |
||
|
Shelves |
3 |
||
|
Internal Socket |
Optional |
||
|
Refrigerant |
R134a (CFC free) |
||
|
Defrosting Mode |
Automatic |
||
|
Safety Device |
Visible & Audible over temperature, over humidity, water shortage alarm; leakage protector |
||
|
Electricity |
Voltage/Frequency |
AC 220/110V, 50/60Hz |
|
|
Consumption (W) |
880 |
1640 |
|
|
N.W./G.W. (kg) |
120/150 |
140/285 |
|
|
Shipping Size (W x D x H) (mm) |
820x800x1920 |
1020x920x2090 |
|
|
Optional |
Test hole(Φ25/50/80/100mm), spare shelf, internal socket, digital independent temp. Limiter, intelligent, LCD procedure temperature controller (Optional USB, RS485/232 port and built-in printer) |
||
---------------------------------------------------------------------------------------------------------------------------
