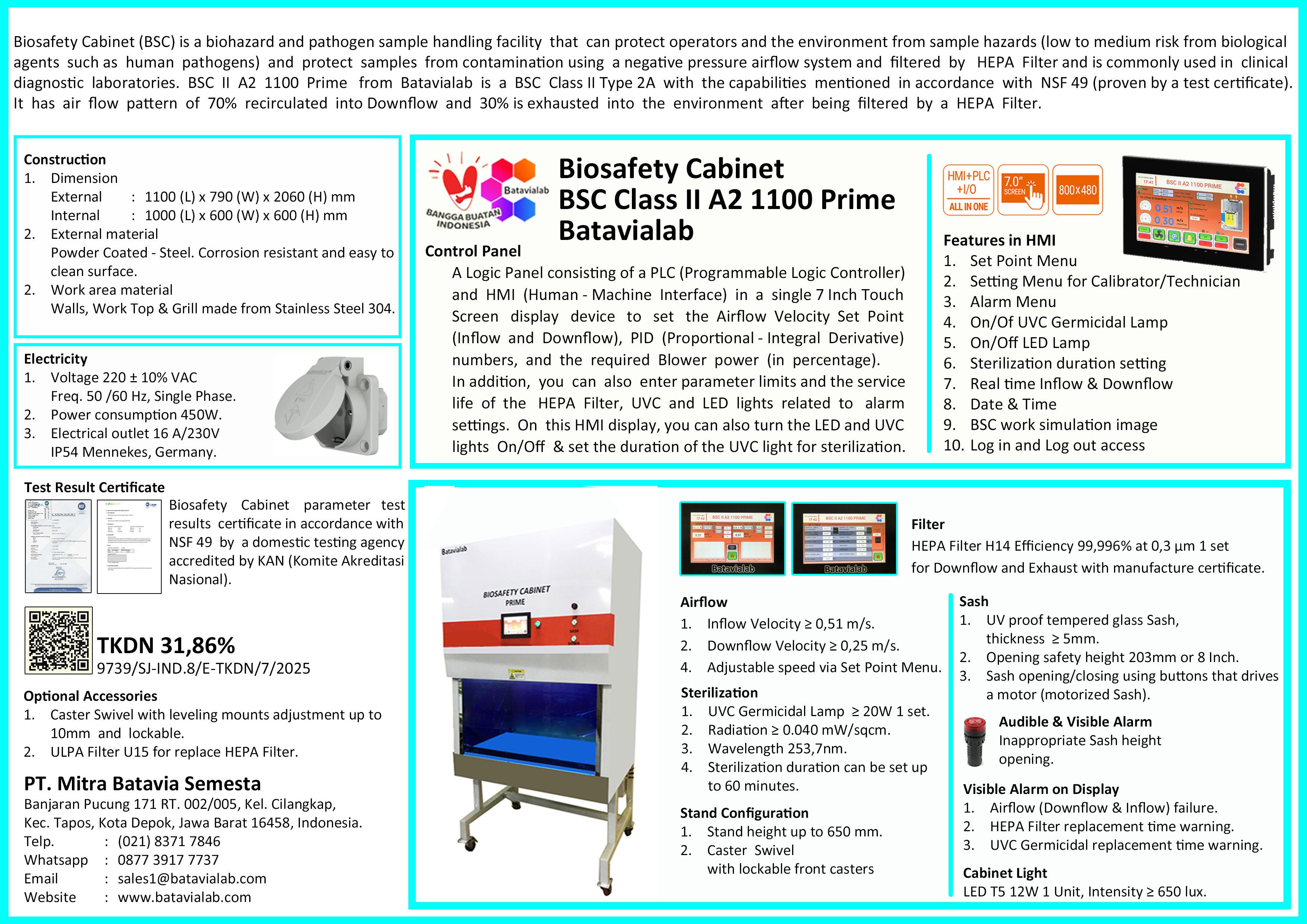

Biosafety Cabinet (BSC) is biohazard and pathogen sample handling facility that can protect operators and the environment from sample hazard (low to medium risk from biological agents such as human pathogens) and protect sample from contamination using a negative pressure airflow system and filtered by HEPA Filter/ULPA Filter and It is commonly used in clinical diagnostic laboratories. BSC II A2 1100 Prime from Batavialab is a BSC Class II Type 2A with capabilities mentioned in accordance with NSF 49 (proven by a test certificate). It has air flow pattern of 70% recirculated into Downflow and 30% is exhausted into the environment after being filtered by a HEPA Filter/ULPA Filter.

Construction

1. External Dimension 1100 (L) x 790 (W) x 2060 (H) mm.
2. Internal Dimension 1000 (L) x 600 (W) x 600 (H) mm.
3. External Material Powder Coated - Steel. Corrosion resistant and easy to clean surface.
4. Work area material: Walls, Worktop and Grill made from Stainless Steel 304.

Control Panel by Logic Panel (PLC + HMI 7 Inches Touchscreen): A Logic Panel consisting of a PLC (Programmable Logic Controller) and HMI (Human-Machine Interface) in a single 7 Inches Touchscreen display device to set the Airflow Velocity Set Point (Downflow and Inflow), PID Numbers (Proportional-Integral Derivative Numbers), and the required Blower's power (in percentage). In addition, you can also enter parameters limits and the service life of HEPA Filter/ULPA Filter, UVC and LED lights related to alarm settings. On the HMI display, you can also turn the LED and UVC lights On/Off and set the duration of the UVC light for sterilization.

Features in HMI (on Display)

1. Set Point Menu
2. Setting Menu for Calibrator/Technician
3. Alarm Menu
4. On/Off UVC Germicidal Lamp
5. On/Off LED Lamp
6. Sterilization duration setting
7. Real time Inflow and Downflow
8. Date and Time
9. BSC work simulation image
10. Log in and log out access

Electricity

1. Voltage 200 -/+ 10% VAC, Frequency 50/60 Hz Single Phase
2. Power consumption 450W
3. Electrical outlet 16A/230V IP54 Mennekes, Germany

Cabinet Light by LED t% 12W*1 unit, Intensity ≥ 650 lux

Filter

1. HEPA Filter H14 (as standard)
2. ULPA Filter U15 (as optional)

Airflow

1. Inflow velocity ≥ 0,51 m/s
2. Downflow velocity ≥ 0,25 m/s
3. Adjustable speed via Set Point Menu in HMI (on display)

Sterilization

1. UVC Germicidal Lamp ≥ 20W 1 set
2. Radiation ≥ 0,040 milliWatt/cm square
3. Wavelength 253,7 nm
4. Sterilization duration can be set up to 60 minutes

Sash

1. UV Proof tempered glass thickness ≥ 5mm
2. Opening safety height 203mm or 8 Inches
3. Sash opening/closing using buttons that drives a motor (motorized Sash)

Audible and Visible Alarm: Inappropriate Sash height opening

Visible Alarm on Display

1. Airflow (Downflow and Inflow) failure
2. HEPA Filter/ULPA Filter replacement time warning
3. UVC Germicidal replacement time warning

Stand Configuration

1. Stand height up to 650 mm
2. Caster swivel with lockable front caster

Test Result Certificate: Biosafety Cabinet parameter test result certificate in accordance with NSF 49 by a domestic testing agency accredited by KAN (Komite Akreditasi Nasional).
