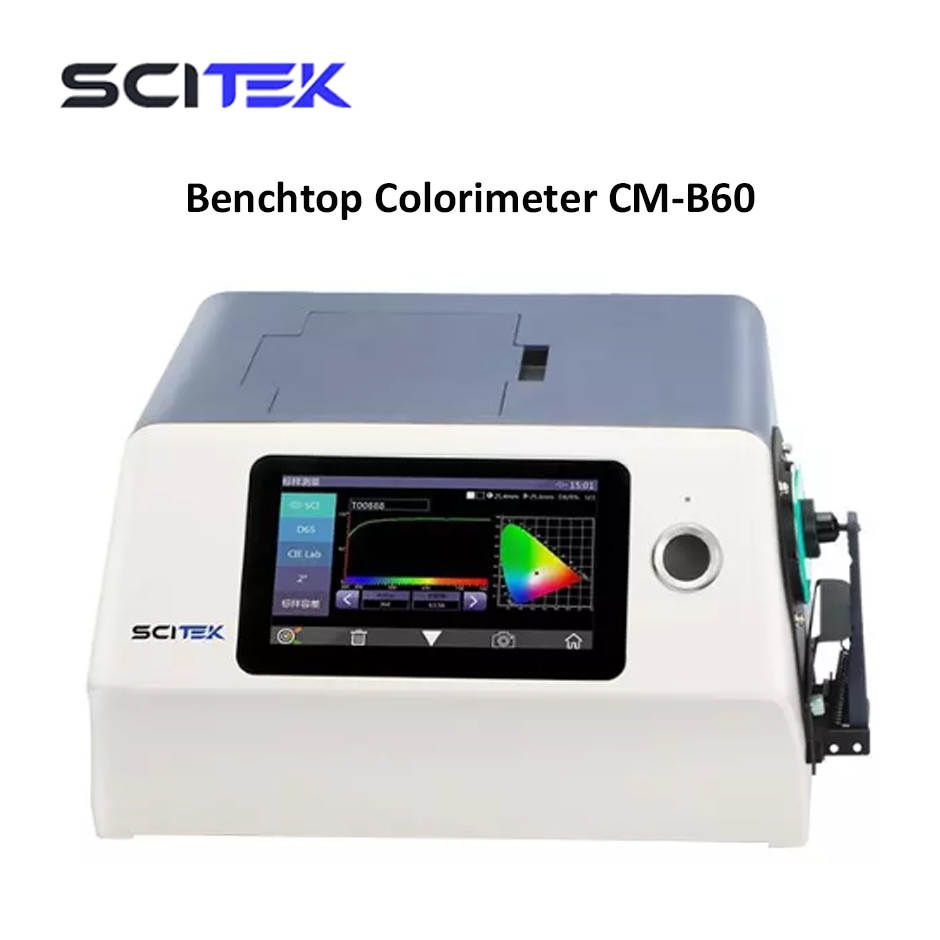

Optical Geometry

Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle; SCI (specular component included)/SCE (specular component excluded); Include UV / excluded UV light source;

Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing);

SCI (specular component included) /SCE (specular component excluded); Include UV / excluded UV light source;

Haze(ASTM D1003), Conforms to CIE No.15, GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7;

Application

It is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.

Integrating Sphere Size

Φ154mm

Light Source

360 nm to 780 nm, Combined LED Light, 400nm cut-off light source, 420nm cut-off light source

Spectrophotometric Mode

Concave Grating

Sensor

256 Image Element Double Array CMOS Image Sensor

Wavelength Range

360-780nm

Wavelength Interval

10nm

Semi bandwidth

5nm

Measured Reflectance Range

0-200%

Measuring Aperture

Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm

Transmissive : Φ25.4mm;

Remark:

1. Automatic identification of switch caliber

2. Customized Configuration caliber and lens position

Specular Component

Reflectance: SCI&SCE / Transmittance: SCI&SCE

Color Space

CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99

Color Difference Formula

ΔE * ab, ΔE * uv, ΔE * 94, ΔE * cmc(2:1), ΔE * cmc(1:1), ΔE * 00, DINΔE 99, ΔE (Hunter)

Other Colorimetric Index

WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness, Gardner Index, APHA/ Pt-Co Index, 555 Index, Haze(ASTM D1003), Saybolt, Color code (ASTM D1500)

Observer Angle

2°/10°

Illuminant

D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,

F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30

Displayed Data

Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset

Measuring Time

About 2.4s (Measure SCI & SCE about 5s)

Repeatability

1. Spectral reflectance:Φ25.4mm/SCI, Standard deviation within 0.04% (400 nm to 700 nm: within 0.04%)

2. Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

3. Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)

4. Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error

Φ25.4mm/SCI, Within ΔE*ab 0.12

(Average for 12 BCRA Series II color tiles)

Size

L*W*H=370x300x200mm

Weight

Approx. 9.6kg

Power

AC 24V, 3A Power adapter power supply

Illuminant Life Span

5 years, more than 3 million times measurements

Display

7-inch TFT color LCD, Capacitive Touch Screen

Data Port

USB & Bluetooth & Print serial port

Data Storage

Standard 5000 Pcs, Sample 40000 Pcs

Language

Simplified Chinese, Traditional Chinese, English, (Optional Customized German, French and Spanish)

Operating Environment

0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment

-20~50℃, 0~85%RH (no condensing)

Standard Accessory

Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4mm caliber, 15mm caliber, 8mm caliber, 4mm caliber, Transmissive Test Component, Micro Aperture(4mm) transmission test clamp component

Optional Accessory

Micro-printer, Instrument inversion components, culture dish

Notes:

The specifications are subject to change without notice.
