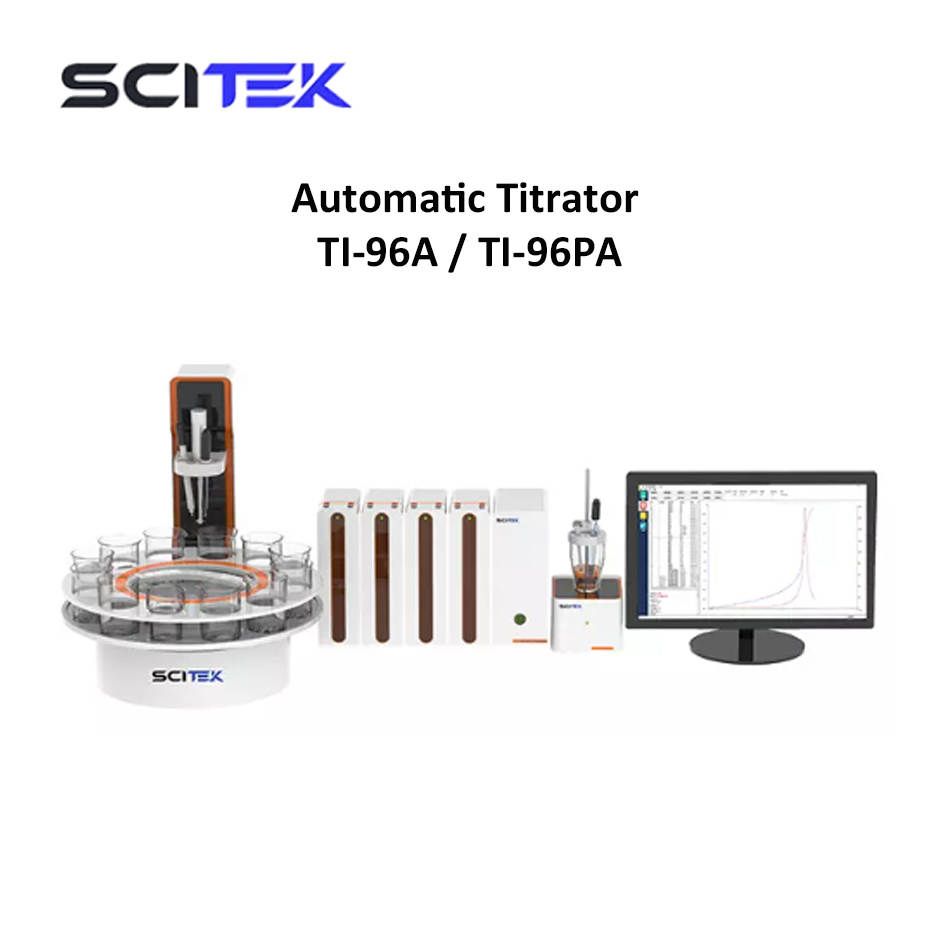

Automatic Titrator TI-96A / TI-96PA Scitek

Hanya Tersisa 1 lagi




TI-96A/TI-96PA auto titrator is a high-precision laboratory experimental analysis instrument that uses potentiometric, dead-stop and other titration methods for capacity analysis. The auto titration equipment can perform acid-base titration, redox, precipitation, complexation, dead-stop, etc. It has the functions of constant titration, micro titration, end point setting titration, volume setting titration and mode titration, etc. At the same time, it can choose or build its own special titration mode according to the actual needs of users.


Advantages of Automatic Titrator:

1. Diversification of titration platforms. Independent analysis station, 16-position 100mL autosampler, 12-position 250mL autosampler, and 18-position 50mL autosampler can be freely selected.

2. Multiple titration modes. Acid-base titration, redox titration, silver volume titration, complexometric titration, dead-stop titration.

3. Multiple measurement modes. MEAS: measure pH/mV/T, CAL: pH calibration, SET setting end point mode, MET equivalent titration, MET equivalent titration second-order derivative method (chlorine ion measurement), DET dynamic titration, constant pH titration, manual titration, etc.

4. Wireless Wi-Fi Module. T9605 wireless Wi-Fi module, wireless connection between computer and the titrator, remote control of the instrument, reducing the time when the experimenter is in close contact with chemical reagents.

Automatic Titrator Features:

1. Multi-channel modular combination, which can combine multiple dosing units; supports 4 dosing units to work at the same time, free combination, no need to install and disassemble parts, and each module can be simply side-by-side to form an instrument system.

types of standard burettes for adding liquid can be selected arbitrarily, and the experimental application is more targeted; standard 10mL, optional 1mL, 5mL, 25mL.

2. Built-in dosing unit, multiple guarantees against the danger of reagent spillage; minimize the risk of operators.

3. Multiple self-check functions, simplify the operation process and avoid mis operation.

4. With the application editing function, the user can generate a special titration mode according to the experiment and store it, and the next one-click retrieval.

5. With the audit trail function, the effective operation of the instrument will be recorded in the background and cannot be deleted.

6. Have user hierarchical authority management, and can check the specific use authority when creating an account.

7. With the function of password aging, each account can set the validity period of the password. After the expiration, it is mandatory to change the password before logging in to the instrument.

8. With password complexity setting, you can set the password complexity according to your needs.

9. Support manual setting of endpoints and save as associated data to reduce unnecessary repeated experiments

Applications of Automatic Titrator:

TI-96A/TI-96PA automatic titrator can be used in food, drug inspection, disease control, inspection, commodity inspection, water treatment, petroleum, chemical, marine, electric power, environmental protection, new energy, teaching, scientific research and other fields.



Model

TI-96A

TI-96PA

Titration Module

Potentiometric

Potentiometric, Dead-stop

mV Measuring Range

-2000.0mV~+2000.0mV

mV Measuring

Resolution: 0.1mV, Accuracy: 0.1mV±0.03%

pH Measuring Range

-20.000pH~+20.000pH

pH Measuring

Resolution: 0.001pH, Accuracy: 0.003pH

Temp. Measuring Range

-5~120

Temp. Accuracy

±0.1

Maximum Number of Titration Modules

4 (2 modules in the standard package)

Maximum Number of Simultaneous Filling Modules

4 (2 modules in the standard package)

Burettes Type

Inbuilt Burette

Burette Optional

1mL 5mL 10mL 25mL (10ml Burette in the Standard Package )

Simultaneous Working Burette

2

Burette Resolution

1/1500000

Burette Refill Time

16 Seconds (100% Filling Speed)

User Grading Management System

Customizable Operation Permissions

Audit Trail

Optional

Standard

Controlled by

PC

Communication Ports

2*USB, RS232, Internet

WiFi Module

Optional

Standard

Stirring

Magnetic Stirring, Mechanical Stirring (Optional)

Electrode Interface Type

mV/pH Measuring Electrode Interface
Reference electrode interface

mV/pH Measuring Electrode Interface

Reference Electrode Interface

PT1000 Temperature Electrode Interface

PT1000 Temperature Electrode Interface
Polarized Electrode Interface

Autosampler (Optional)

Equipped with 1 Independent Analysis Station, Optional 16-position 100mL Autosampler, 12-position 250mL Autosampler, and 18-position 50mL Autosampler

Packages Size (W x D x H)(mm)

415x345x370

Gross Weight (kg)

14kg
