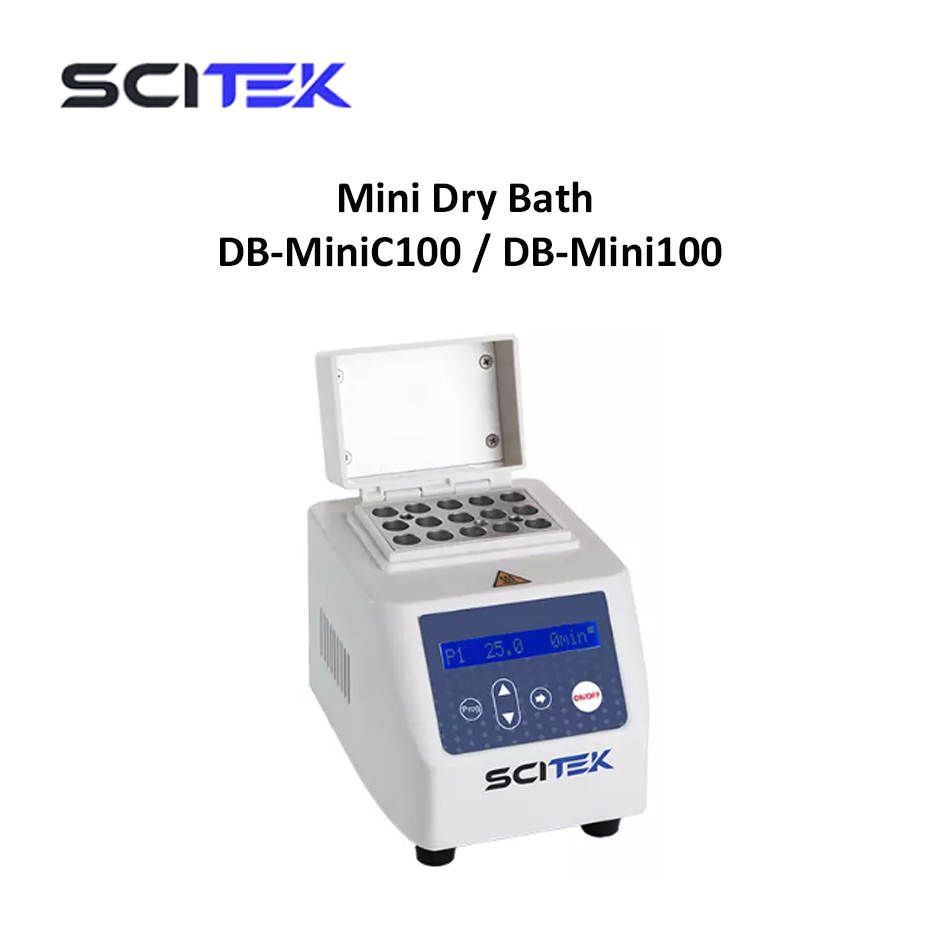

Mini Dry Bath DB-MiniC100 DB-Mini100 Scitek
Mini Dry Bath Feature:
1. Compact design, small size, easy to carry, it is the ideal mobile heating equipment in the laboratory.
2. The dry bath is equipped with LCD, it can intuitively display the current temperature and operation time, allowing users to monitor the experimental conditions in real-time.
3. Temperature control accuracy of ± 0.5 ℃ to ensure the accuracy and repeatability of the experimental results.
4. Provide a variety of heating modules to choose from to meet the needs of different experimental operations.
5. Supports quick calibration mode, simplifying the operation process and improving the convenience of use.
6. Built-in over-temperature protection, effectively preventing the temperature from exceeding the set range.
7. Rapid warming and cooling capabilities will improve the efficiency of the experiment.
|
Model |
DB-MiniC100 |
DB-Mini100 |
|
Display |
LCD |
LCD |
|
Temperature Setting Range (℃) |
0-100 |
25-100 |
|
Temperature Range (℃) |
RT.-23~100℃ |
RT.+5~100℃ |
|
Temperature Control Accuracy (℃) |
±0.5 |
|
|
Temperature Display Accuracy (℃) |
0.1 |
|
|
Minimum Time Taken for Heating (25℃-100℃) |
≤20min |
|
|
Minimum Time for Cooling (20℃-10℃) |
≤25min |
/ |
|
Max. Heating Rate |
8℃/min |
6.5℃/min |
|
Max. Cooling Rate |
3℃/min |
/ |
|
Time Setting Range |
0-999min/0-999sec |
0-999min/0-999sec |
|
No. of Programs in Memory |
9 (2 steps for each) |
|
|
Rapid Calibration |
Support |
|
|
USB Interface |
Support |
|
|
Error Code Reminder |
Support |
|
|
Power Supply |
AC100V-240V, 50Hz/60Hz |
|
|
Consumption |
60W |
|
|
Operation Temperature (℃) |
-30 |
|
|
Operation Humidity (%RH) |
≤80 |
|
|
Size (W×D×H)(mm)(Without the Heating Block) |
250x240x200 |
|
|
Shipping Size (W×D×H)(mm) |
320x260x240 |
|
|
N.W./G.W. (kg) |
1.8/3 |
|
|
Optional Blocks |
||
|
Cat. No. |
Capacity |
Diameter×depth |
|
18900414 |
40×0.2 mL |
6.4mm×20mm |
|
18900415 |
24×0.5 mL |
8.2mm×28.4mm |
|
18900416 |
15×1.5 mL |
11.2mm×31mm |
|
18900428 |
15×2 mL |
11mm×31mm |
|
18900417 |
6×5 mL |
17mm×31mm |
|
18900426 |
4×15 mL |
16.4mm×45mm |
|
18900427 |
2×50 mL |
29mm×45mm |
