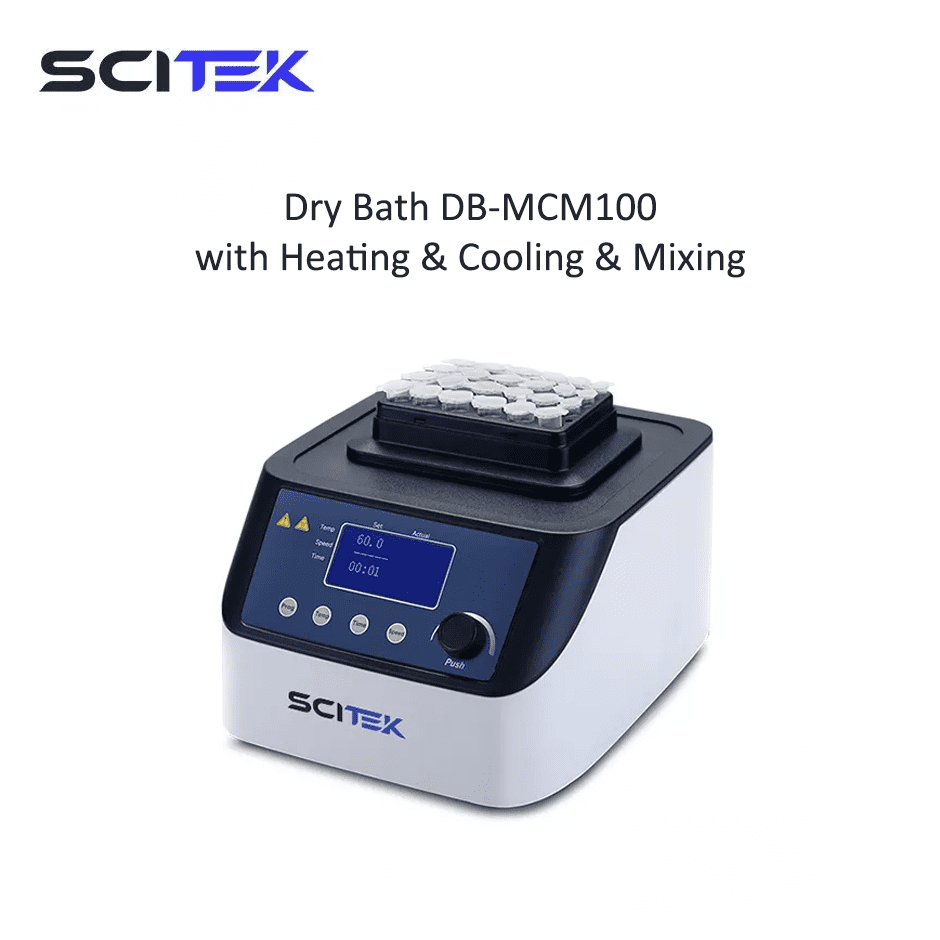

Dry Bath with Heating, Cooling and Mixing DB-HCM100 SCITEK

Hanya Tersisa 1 lagi



Tags : Dry Bath  SCITEK

Dry Bath with Heating & Cooling & Mixing

Display : TFT
Temperature Control Accuracy : ± 0.5 ℃ (at 20~45℃)
Temperature Setting Range (℃) : 0.1~100; 15~100; 15~100
Max. Heating Rate : 5.5 ℃/min
Size : 200(W)×235(D)×120(H) mm
The dry bath with heating & cooling & mixing function increases the versatility of the laboratory.

Dry Bath Features

  1. Dry bath provides more precise temperature control and faster heating and cooling rates.
  2. Programmable features allow for automatic temperature and time control according to the experiment's needs. This improves the efficiency and accuracy of experiments and reduces errors.

  3. Flexible adapters are compatible with a wide range of tubes, reducing equipment costs.

  4. Quick block exchange using magnet adhesion technology allows for easy replacement of heating blocks, increasing the convenience and efficiency of experiments.

  5. Blocks are fitted with lids to protect samples from external contamination and prevent heat loss for better insulation.


    Model

    DB-HCM100

    Functions

    Heating, Cooling & Mixing

    Temperature Range

    Heating: RT.~100

    Cooling: RT. ~below RT. 15

    Temperature Setting Range()

    0.1~100

    Temperature Control Accuracy

    ±0.5 (At 20~45)

    Temperature Uniformity

    ±0.5 (At 20-45)

    Max. Heating Rate

    5.5/min

    Max. Cooling Rate

    5/min (RT.~100)

    0.5/min (Below RT.)

    Mixing Frequency

    200rpm-1500rpm

    Mixing Orbit

    3 mm

    Time Setting Range

    0~99h30min

    Program

    9

    Overheating Protection

    150

    Display

    TFT

    Adapter Block Material

    Aluminum

    Power Supply

    AC220/110V, 50/60Hz

    Consumption

    200W

    Size(W×D×H)(mm)

    200×235×120

    Shipping Size(W×D×H)(mm)

    440x410x270
