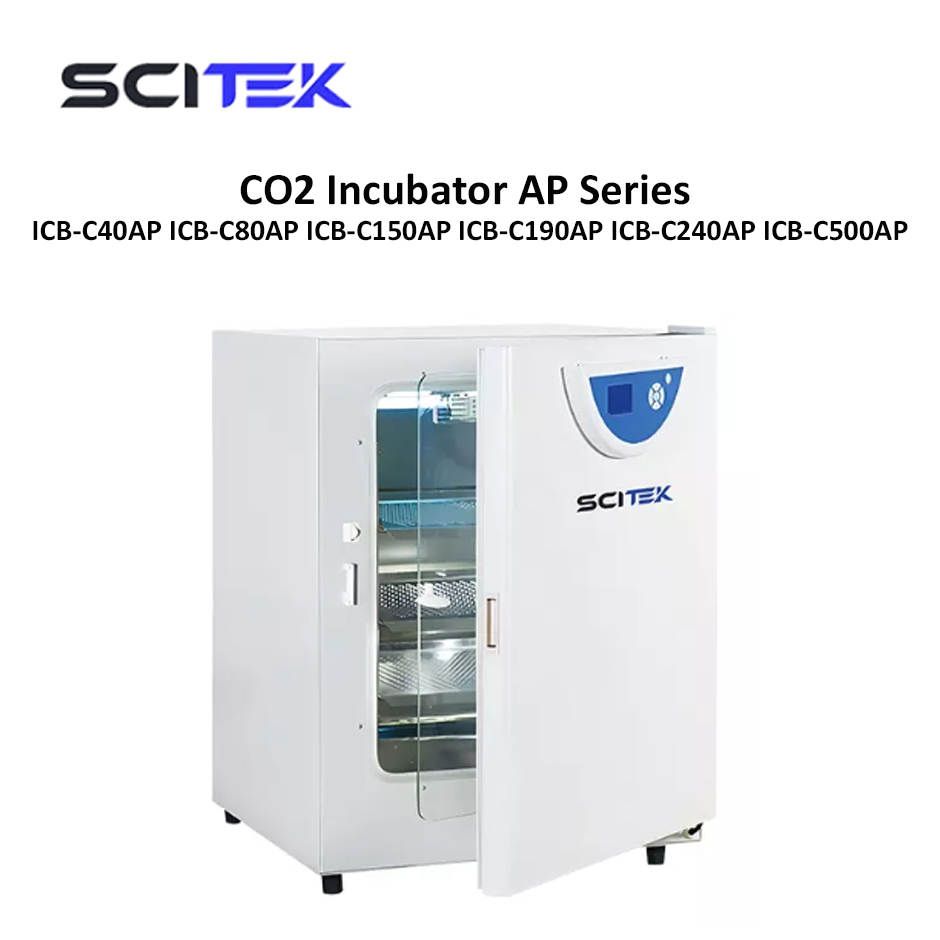

CO2 Incubator AP Series Scitek

Hanya Tersisa 1 lagi



Tags : CO2 Incubator  Scitek

CO2 Incubator AP Series

Brand SCITEK

Origin CHINA


Features:

1. Natural evaporation for humidification to ensure the chamber can maintain good humidity.

2. Microcomputer control, large LCD screen, accurate and easy for operation.

3. Imported infrared sensor and gold-plated probes to ensure accuracy, the life time of sensor is up to 15 years.

4. Adopting PID control technology, the CO2 concentration can be freely set within range of 0 to 20%, alarm for over concentration and concentration rise too slow.

5. Water jacket and air jacket structure are available, polished 304 stainless-steel chamber with air duct. Equipped with fan for forced convection, ensuring good temperature uniformity and the balance of CO2 concentration inside.

6. When door opened, the fan will automatically turned off (the CO2 will be turned off intake valve at same time) and heating will be stopped to reduce the pollution caused by the entry of air.

7. PID microprocessor is used to control temperature, meanwhile, the temperature of box ,water and door are separately controlled by three probes to ensure high accuracy. (Air jacket is equipped with two probes to control door temperature and main body temperature.)

8. CO2 incubator's digital display for setting parameters, each working state has LED indication.

9. Alarm function for over-heating, lack of water, unaspirated, ensuring the safe operation of the equipment.

10. The CO2 incubator is equipped with sterile air filtration devices and UV light system to reduce pollution.

 --------------------------------------------------------------------------------------------------------------------------------------------------------

Model

ICB-C40AP

ICB-C80AP

ICB-C150AP

ICB-C190AP

ICB-C240AP

ICB-C500AP

Capacity (L)

40

80

150

190

240

500

Internal Size (W × D × H) (mm)

400×286×350

400×450×500

480×530×610

520×530×690

600×630×670

700x650x1100

External Size (W × D × H) (mm)

590×440×576

590×687×790

670×767×880

708×710×1030

788×837×940

880x860x1500

Heating Method

Air jacket (casing microcomputer PID control)

Temperature Control Range

RT+555

Working Environment Temperature

+530

Temperature Fluctuation

±0 1

CO2 Control Range

020%

CO2 Control Accuracy

±0.1% (infrared sensor)

CO2 Recovery Time

(Recovery to 5% in 30 seconds)≤ 3 minutes

Temperature Recovery

(Return to 37 in 30 seconds)≤ 8 minutes

Relative Humidity

Natural evaporation ≥ 90% (can be equipped with relative humidity digital display)

90 High Temperature Moist Heat Sterilization

Yes

Load Carrier (Standard)

2 pcs

3pcs

Power Supply

AC 220/110V, 50/60Hz

Input Power

350W

500W

750W

750W

950W

1450W

N.W./G.W. (kg)

50/70

64/90

85/112

90/134

95/148

195/320

Shipping Size (W x D x H)

(mm)

650×710×740

750×710×960

840×790×1070

830x840x1250

960×900×1160

1020×1000×1610

Optional

RS485 Connector: Easy to download and save all the data via RS485 into computer, and identify problems in time.

Humidity display system.

Embedded printer
