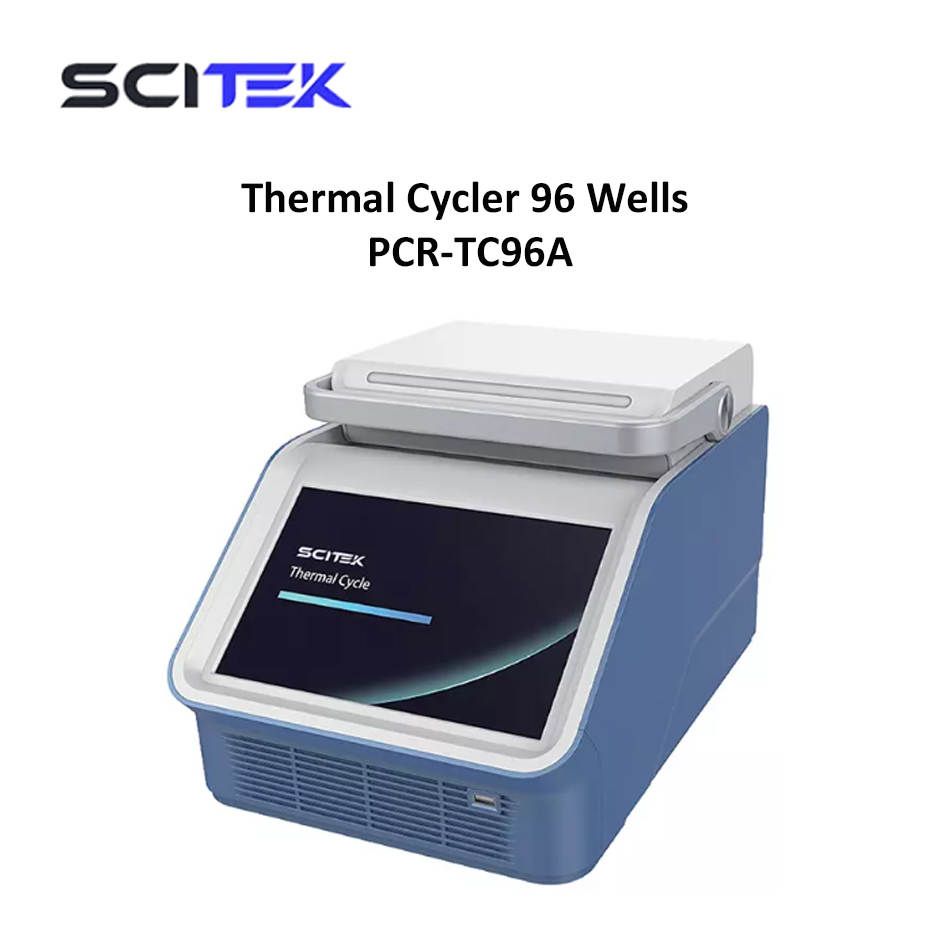

Thermal Cycler 96 Wells PCR-TC96A Scitek

Hanya Tersisa 1 lagi



Tags : Thermal Cycler  PCR  Scitek

The PCR-TC96A PCR thermal cycler features a reinforced aluminum module with anodic oxidation technology that maintains fast thermal conductivity and is sufficiently corrosion-resistant. Multiple data protection features, including automatic restart after power failure, allow it to continue running unfinished procedures when power is restored. It also supports USB storage and copying of PCR data and users can control the PCR via a USB mouse.

PCR Thermal Cycler Features:

1. Reinforced aluminum module and peltier heating units for rapid heating and cooling, saving assay time

2. Adaptive pressure heating lid and closing lid, suitable for different heights of tubes

3. Side-by-side placement of Front and rear ducts makes the PCR thermal cycler compact and small.

4. Built-in 11 standard program file templates for quick editing of required files

5. Real-time display of the running program and time remaining, allowing editing of the file while the program is running

6. One-touch incubation function for denaturation, digestion, ELISA, and other experiments.

7. lFront and rear air ducts can be placed side by side.


Model

PCR-TC96A

Capacity

96×0.2ml

Formats

0.2ml tube, 8 strips, 12 strips, Half skirt 96 wells plate, No skirt 96 wells plate

Temperature Range

0-105

MAX. Ramp Rate

5/s

Uniformity

≤±0.2

Accuracy

≤±0.1

Display Resolution

0.1

Temperature Control

Block/Tube

Ramping Rate Adjustable

0.01-5

Gradient Temp. Range

30-105

Gradient Type

Nolinear Gradient

Gradient Spread

0.1-42°C

Hot Lid Temperature

30-115°C

Number of Programs

20000+(USB FLASH)

Max. No. of Step

30

Max. No. of Cycle

200(Up to 100,000 in nested cycles)

Time. Increment/Decrement

1 Sec-600 Sec

Temp. Increment/Decrement

0.1-10

Pause Function

Yes

Auto Data Protection

Yes

Hold at 4

Forever

Touchdown Function

Yes

Long PCR Function

Yes

Language

English

Computer Software

Yes

Mobile Phone APP

Yes

LCD

10.1 inch, 1024×600 pels

Communication

USB2.0, WIFI

Power Supply

AC100-240V, 50/60Hz

Power

600W

Size(W×D×H)(mm)

385×270×255

Shipping Size(W×D×H)(mm)

580×460×440

N.W./G.W. (kg)

10/16
