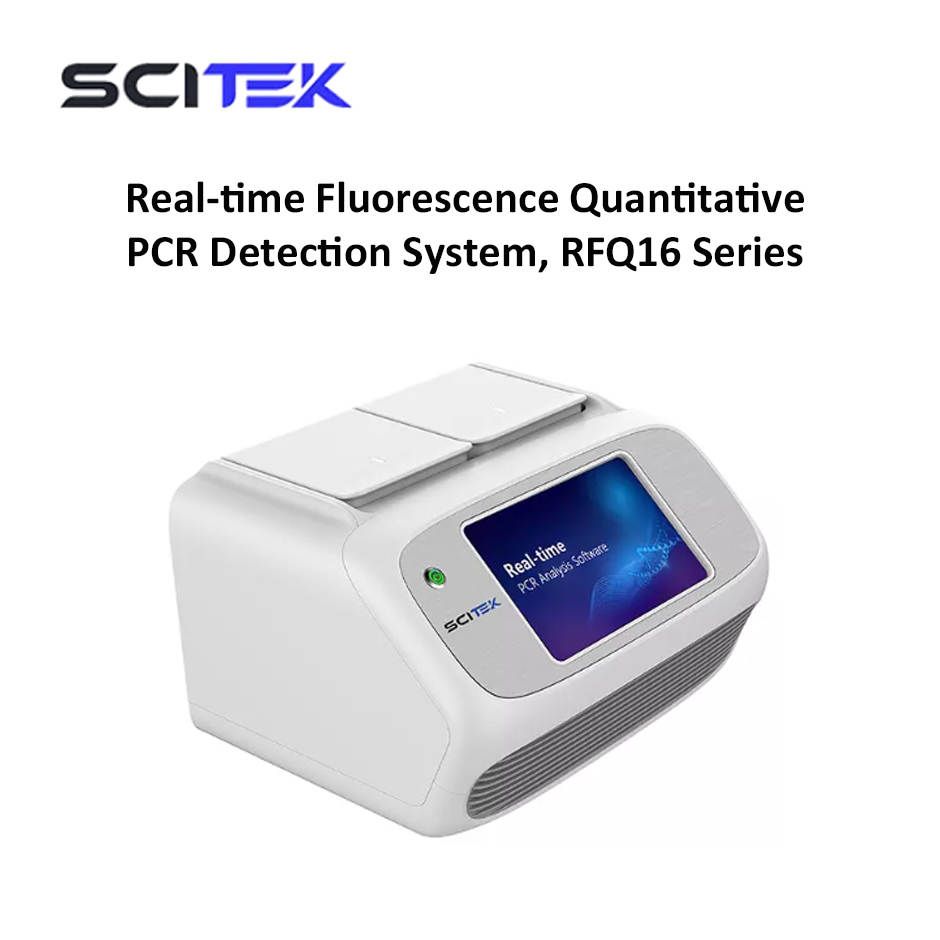

Real-time Fluorescence Quantitative PCR Detection System RFQ16 Series

Hanya Tersisa 1 lagi



Tags : Real Time PCR  Scitek  PCR

Real-time Fluorescence Quantitative PCR Detection System Features:

1. The temperature control accuracy is ±0.1, ensuring the temperature stability of the reaction system and providing highly accurate experimental results.

2. The temperature uniformity reaches ±0.25, ensuring that the samples in the experiment are uniformly heated throughout the reaction process. The temperature range of the hot cover is adjustable, which can meet the needs of different experimental conditions and guarantee the experiment's reliability.

3. The high sensitivity photoelectric sensor and the kinetic range of 1-10^10 parts make the product capable of reliable detection in multiple concentration ranges.

4. Supports block and tube mode temperature control to adapt to different experimental needs and provide more flexible operation options.

5. It can detect single-copy genes and is suitable for various experimental scenarios, providing users with more comprehensive gene detection and analysis.

6. Provide quantitative/qualitative melting curves, genotyping, and other software analysis functions to meet the user's needs for various experimental results.

7. Directly printable report, optional USB thermal printer, convenient for users to record and share the experimental results.

8. Seven Inch color touchscreen and computer connection control can be achieved through a WIFI or USB 2.0 interface, making the operation more flexible and convenient.

9. Powerful software analysis function for quantitative analysis, melting curve analysis, genotyping and so on.

10. 20GB flash memory can save 40000 experimental data.



Model

PCR-RFQ161

PCR-RFQ164

Sample Capacity

16×0.2ml (2×8well, dual block)

Consumable

Clear 0.2 ml PCR tube /8-tube strips

Reaction Volume

15-100μL

Temperature Control Technology

Marlow customized peltier allow 1000000 cycles

Temperature Range

0-100 (Resolution: 0.1)

MAX. Ramp Rate

6/s

8/s

Temperature Fluctuation

±0.1

Uniformity

±0.25

Accuracy

±0.25

Hot Lid Temperature

30-110 (Adjustable, default 105)

Temperature Control

Block/Tube

Excitation Wavelength

300-800nm

Emission Wavelength

500-800nm

Factory Calibrated Dyes

F1: FAM/SYBR Green I

F1: FAM/SYBR Green I

F2: HEX/VIC/JOE/TET

F3: ROX

F4: CY5

Excitation

Long life LED

Detection

High sensitivity photoelectric detector

Dynamic Range

1-1010 Copies

Sensitivity

1 copy

Feature Function

Quantitative/Qualitative analysis, Melting curve, Genotyping

Date Export Formats

Excel, csv, txt

Printing

Report can be printed (optional USB thermal printer)

Control Method

7 inch color TFT touch screen, Can be connected to computer control

Communication

USB2.0

Power Supply

AC220V, 50Hz

Power

DC15V, 255W

Size(W×D×H)(mm)

300×267×198

Shipping Size(W×D×H)(mm)

500×420×350

N.W./G.W. (kg)

8.5/13
