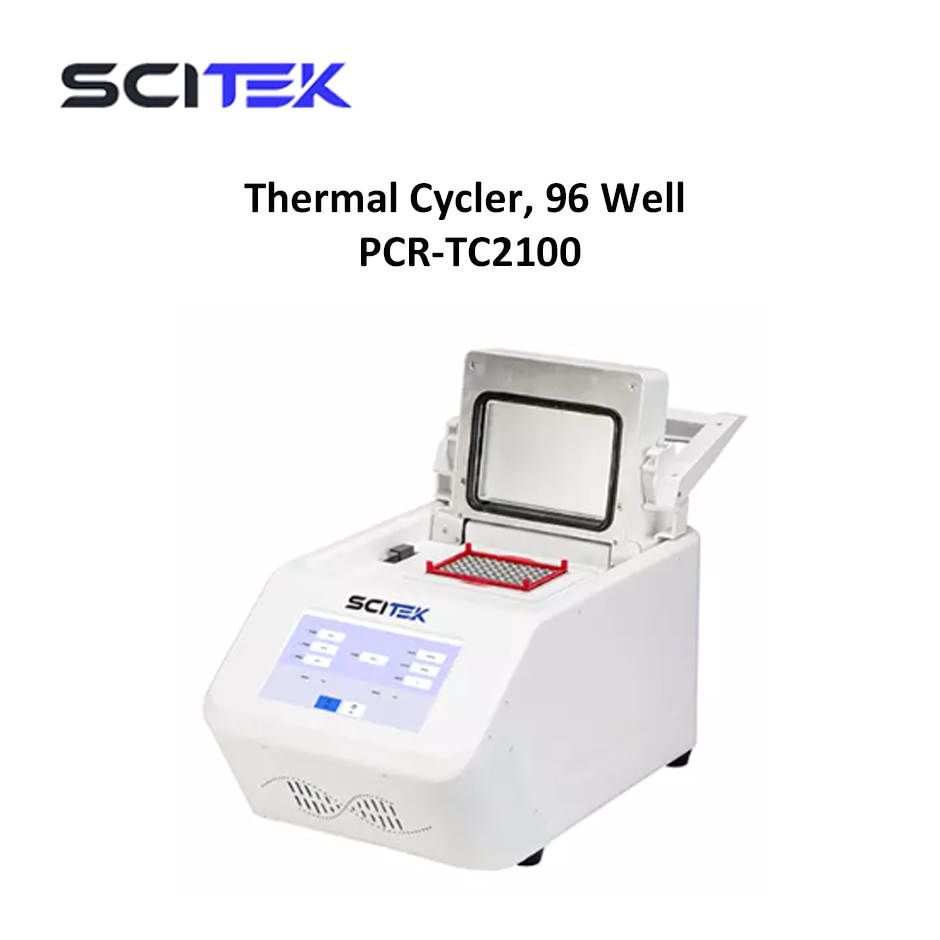

PCR-TC2100 is a multi-functional, high-quality thermal cycler with gradient, constant cooling, U disk copy, and Chinese and English bilingual switching.
Through internal layout, high -quality filtering voltage voltage power supply and electronic components, special material shells, etc., the impact of electromagnetic interference on the host has been greatly reduced, making the instrument more stable.
1. High resolution touch screen
2. Forward and rear air outlet design
3. Gland type hot cover
4. The software editing interface is a graphical user interface, which can store 15000 programs
5. Constant cooling function
6. PCR-TC2100 is the bottom hole of the arc, which fits with the bottom of the PCR pipe. Other flat bottomed holes with large gaps at the bottom of the PCR tube.
|
Model |
PCR-TC2100 |
|
Sample Capacity |
96x0.2ml test tube, 0.2ml connecting tube or 1x96 well plate |
|
Display |
7-inch Touch Screen |
|
Sample Stage Temperature Range(℃) |
0~105℃ |
|
Maximum Heating Rate |
6℃/sec |
|
Maximum Cooling Rate |
6℃/sec |
|
Sample Stage Temperature Uniformity |
≤±0.1℃ |
|
Sample Stage Temperature Accuracy |
≤±0.1℃ |
|
Temperature Display Resolution |
0.1℃ |
|
Adjustable Temperature Change Speed |
0.1~4.0℃ |
|
Port |
USB |
|
Memory |
15000 typical programs; USB flash drive is infinitely scalable |
|
Gradient Accuracy |
±0.1℃ Preset Temperature |
|
Gradient Temperature Uniformity |
≤±0.2℃ |
|
Gradient Temperature Range |
30~100℃ |
|
Temperature Difference Range |
Maximum 40 ℃ |
|
Gradient Temperature Point Range |
12 columns |
|
Input Consumption |
700W |
|
Power Supply |
AC110~220V, 50/60Hz |
|
Sizes(W×D×H)(mm) |
410x260x240 |
|
Shipping Size(W×D×H)(mm) |
500x350x360 |
|
N.W./G.W. (kg) |
6.9/10 |
