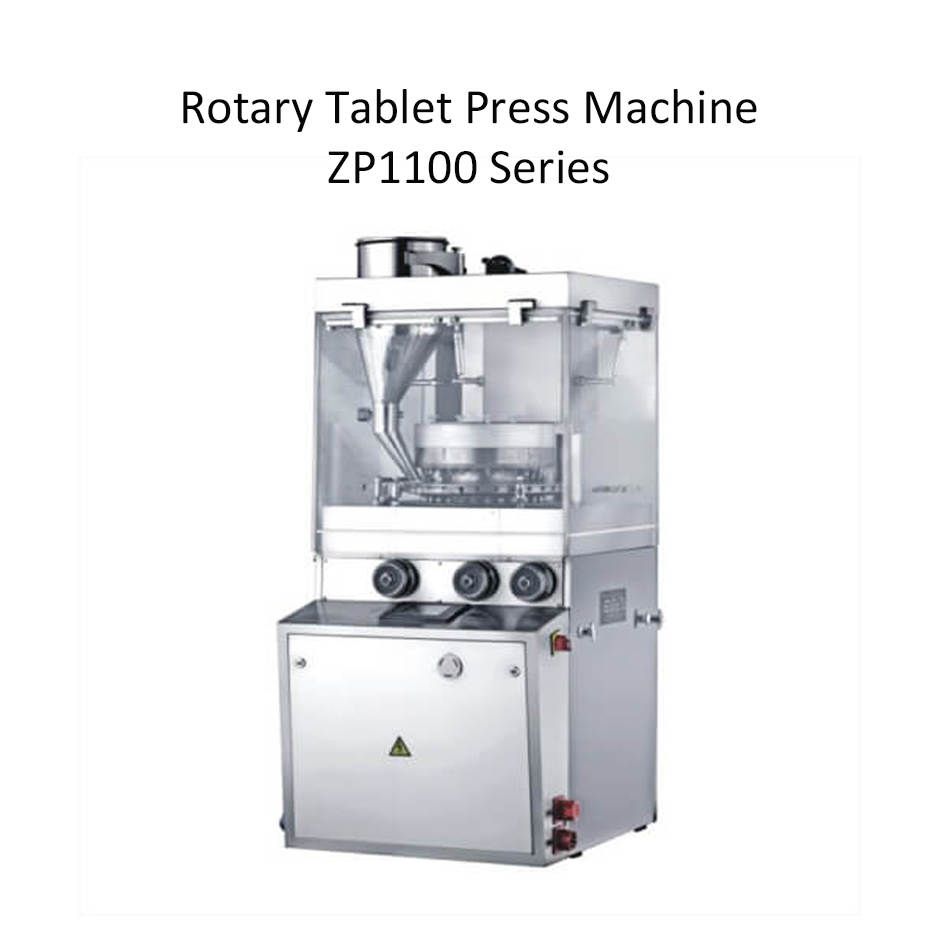

Rotary Tablet Press Machine ZP1100 Series SPM
Hanya Tersisa 1 lagi
Application
- This machine is single side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.
- This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.
- This machine adopt international standard mould.
Features
- Meet GMP requirement, machine design is reasonable. Operation, dismantling and maintenance is convenient.
- With high main-pressure and pre-pressure, extending the pressing time and making good quality tablets.
- The speed of turret is high, its linear velocity is up to high speed tablet press.
- PLC and touch screen control, all the running parameter can be set and shown.
- The machine can stop automatic in case of any upper punch broken.
- Adopt transparent windows, tableting state can be observed clearly.
- The windows can be opened, cleaning and maintenance is easy.
- ZP1100A model is equipped with force feeder, to improve granules flow-ability and filling performance.
| Model | ZP1124(A) | ZP1129(A) | ZP1134(A) | ZP1136(A) | ZP1139(A) |
|---|---|---|---|---|---|
| Number of Stations | 24 | 29 | 34 | 36 | 39 |
| Tooling Standard | D | B | ZP | BB | BBS |
| Max Main Pressure (KN) | 80 | 80 | 80 | 80 | 80 |
| Max Pre-pressure (KN) | 20 | 20 | 20 | 20 | 20 |
| Max Round Tablet Diameter (mm) | 25 | 18 | 13 | 13 | 11 |
| Max Irregular Tablet Diameter (mm) | 25 | 19 | 16 | 16 | 13 |
| Max Filling Depth (mm) | 18 | 18 | 18 | 18 | 18 |
| Max Tablet Thickness (mm) | 7 | 7 | 7 | 7 | 7 |
| Max Turret Speed (RPM) | 65 | 65 | 65 | 65 | 65 |
| Max Production Capacity (pcs/h) | 93600 | 113100 | 132600 | 140400 | 152100 |
| Motor Power (kw) | 4 | 4 | 4 | 4 | 4 |
| Overall Size (W*D*H) (mm) | 960*910*1750 | 960*910*1750 | 960*910*1750 | 960*910*1750 | 960*910*1750 |
| Machine Weight (kg) | 1650 | 1650 | 1650 | 1650 | 1650 |
