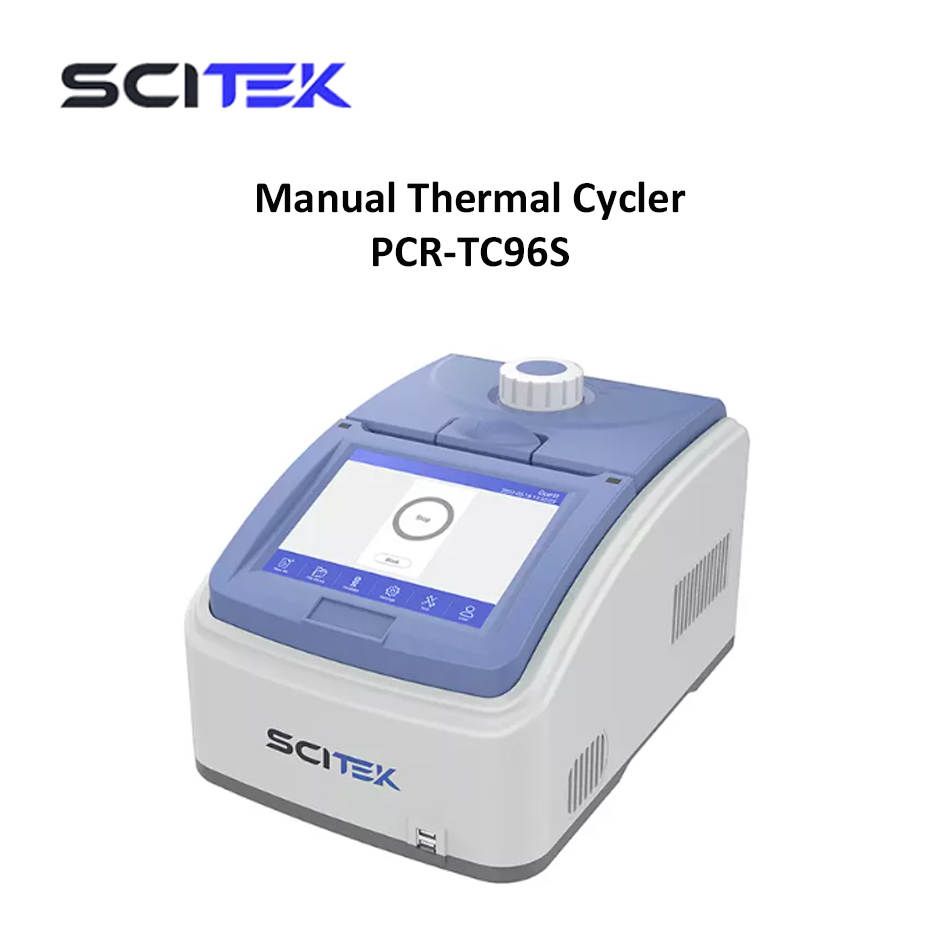

Manual Thermal Cycler PCR-TC96S Scitek

Hanya Tersisa 1 lagi




Thermal Cycler Features:

The PCR-TC96S PCR thermal cycler displays the running program and remaining time in real time, allowing the file to be edited while running. Three circuits are formed to control three temperature zones, each equipped with six Peltier heating units known for their extended service life.

1. Reinforced aluminum module with anodizing technology to maintain fast thermal conductivity and sufficient corrosion resistance

2. Programmable lid temperatures and operating modes and adaptable to different tube heights to avoid melting and evaporation of the tubes

3. Built-in 11 file templates for quick editing of required files and support storing 10,000 PCR files.

4. Automatically restarts after power failure and continues the process that was not completed before the power failure.

5. GLP report records every step, providing accurate data support for analyzing experimental results, and the password protection function ensures data security.

6. One computer can control multiple PCRs through a network connection.



Model

PCR-TC96S

Capacity

96×0.2ml

Temperature Range

0-100

Heating Rate

4.5/s

Cooling Rate

4/s

Uniformity

≤±0.2

Accuracy

≤±0.1

Hot Lid Height Adjustable

Step-less Adjustable

Number of Programs

10000+(USB FLASH)

Max. No. of Step

30

Max. No. of Cycle

100

Time. Increment/Decrement

1 Sec-600 Sec

Temp. Increment/Decrement

0.1-10

LCD

8 inch, 800×600 pels

Communication

USB2.0,LAN

Display Resolution

0.1

Temperature Control

Block/Tube

Ramping Rate Adjustable

0.1-4.5

Gradient Temp. Range

30-100

Gradient Spread

1-30°C

Hot Lid Temperature

30-110°C

Pause Function

Yes

Auto Data Protection

Yes

Hold at 4

Forever

Touchdown Function

Yes

Long PCR Function

Yes

Language

English

Power Supply

AC100-240V, 50/60Hz

Power

600W

Size(W×D×H)(mm)

390×270×255

Shipping Size(W×D×H)(mm)

570x440x440

N.W./G.W. (kg)

8.5/15
