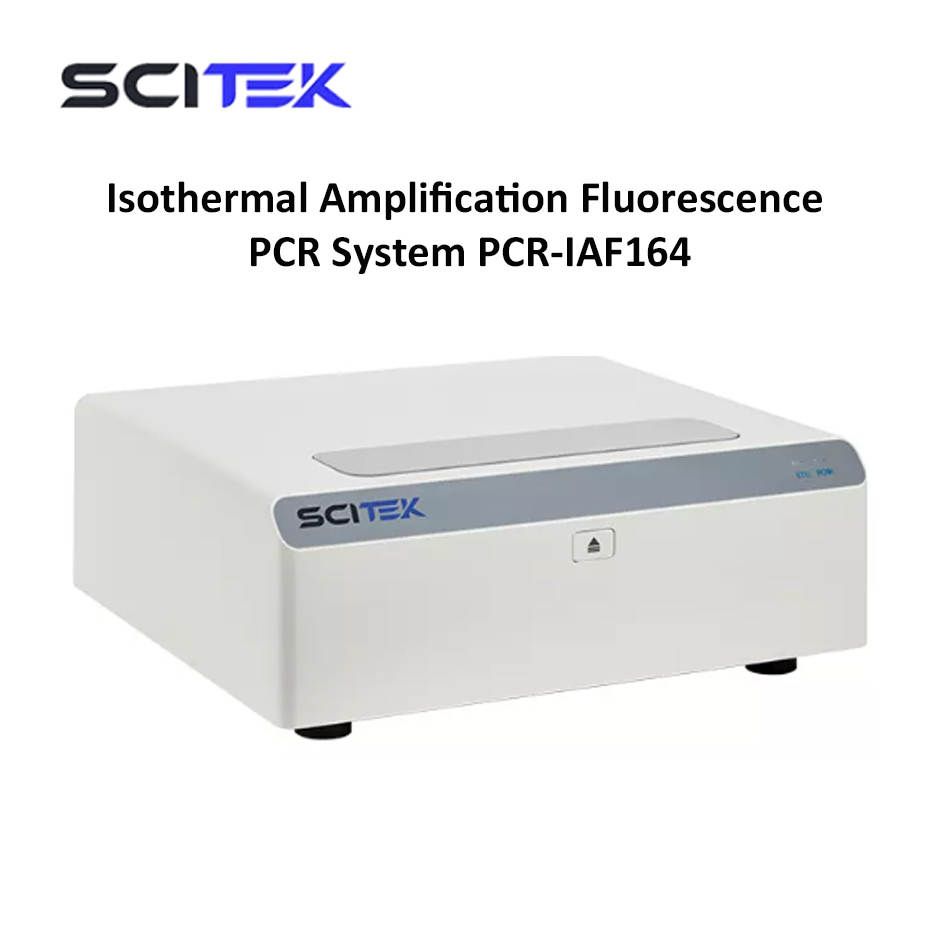

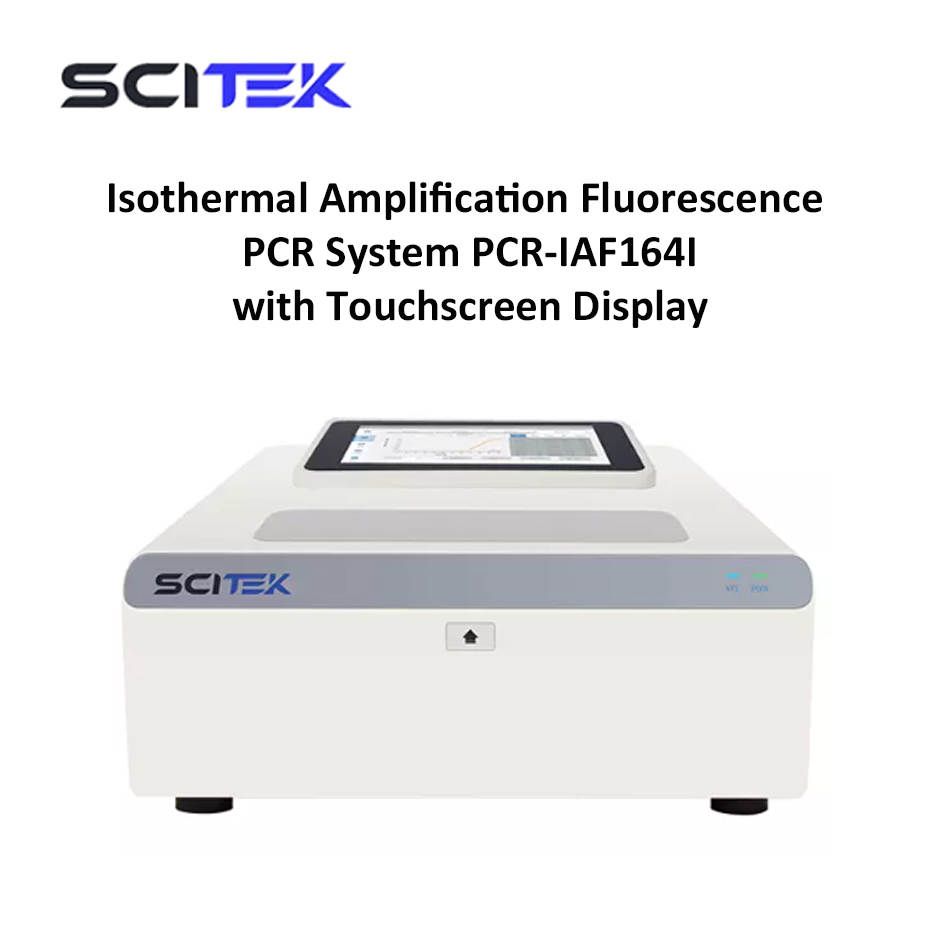

Isothermal Amplification Fluorescence PCR System PCR-IAF164 PCR-IAF164I Scitek

Hanya Tersisa 1 lagi




PCR-IAF164 and PCR-IAF164I isothermal amplification fluorescence PCR detection systems are open detection platforms that apply the principle of "isothermal amplification technology" and combine it with fluorescence detection technology. They can be used for various isothermal amplification reactions to detect bacteria, viruses and other microorganisms on a molecular level. Compared with existing molecular diagnostic platforms, isothermal amplification technology has many advantages and provides a cost-effective solution. Working at a constant temperature enables the next generation of diagnostic DNA/RNA amplification in a compact, stand-alone, sensitive instrument suitable for on-site and point-of-care testing.

Isothermal Amplification Fluorescence PCR Detection System Features:

1. The isothermal amplification fluorescence PCR detection system uses a universal 100uL PCR reaction tube, which reduces the cost of consumables and is easy to obtain.

2. Ultra-fast reaction speed, can complete PCR experiments within 30 minutes.

3. Universal platform, suitable for a variety of isothermal amplification reagents.

4. Flexible configuration, the instrument can be configured as a powerful PC version software operation and a touch screen version independent operation version to meet the needs of different customers.

Applications of Fluorescence Quantitative PCR Detection System:

Food safety testing

Veterinary and Agriculture

Speciation and pathogen testing allow users to understand the origin, type and safety of consumer products.

Extensive veterinary and agricultural pathogen testing

Mycotoxins

Poultry, pigs

Speciation

Cattle

Allergens

Sheep, goats

Pathogen contamination

Horses

Coronavirus testing for environments and surfaces

Petite such as cats and dogs

Human pathogen detection

Respiratory infection

Infectious hepatitis

Sexually transmitted disease

Human papilloma virus

Herpes virus infection

Gastrointestinal infection





Model

PCR-IAF164

PCR-IAF164I

Type

RT-Isothermal PCR

RT-Isothermal PCR

Sample Capacity

16

16

Compatible Consumables

0.1mL Clear tube

Maximum Ramping Rate

1/s

Temperature Range

30-80

Temperature Accuracy

± 0.2°C

Temperature Uniformity

± 0.15°C

Excitation Light

Single LED

Detector

PMT

Detection Method

Time-resolved real-time scanning

Excitation/Emission Wavelengths

455-650nm/510-750nm

Fluorescence Channels (Max)

4

Supported Dyes

FAM/SYBR Green, VIC/JOE/HEX/TET, ROX/Texas Red, Cy5/LIZ (Optional- Cy5.5 or Cy3)

Data Connection

USB, Bluetooth

Operation Mode

PC

7touch screen

Power

100-240V, 50/60Hz

Size (L x W x H)(mm)

290×265×110

290×265×130

Shipping Size (L x W x H)(mm)

410×375×185

410×375×185

N.W/G.W (kg)

3.6/4.7

3.9/5
