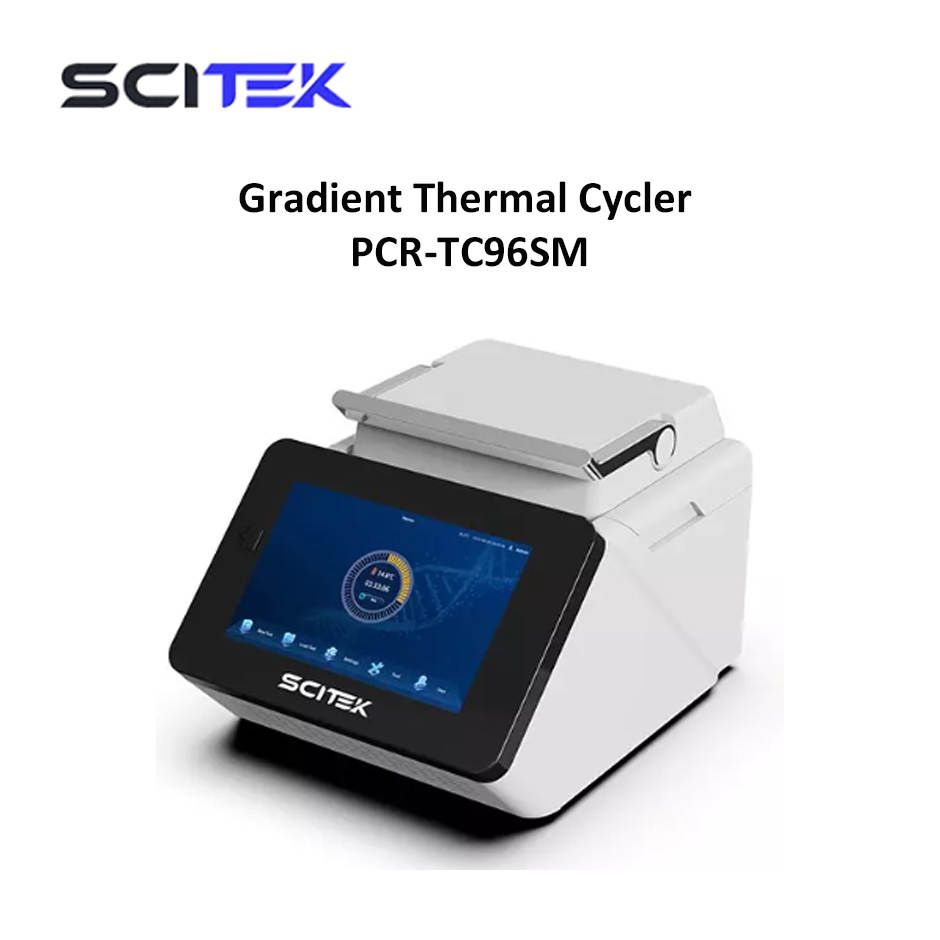

Gradient Thermal Cycler PCR-TC96SM Scitek

Hanya Tersisa 1 lagi




A gradient PCR thermal cycler is a specialized device designed to optimize annealing temperatures during the PCR process. Equipped with advanced gradient temperature control technology and high-performance, long-life Peltier-controlled cooling and heating block, it enables precise, zone-specific temperature regulation. Empower laboratories to efficiently conduct a wide range of molecular biology experiments with precision, stability, and reliability.

Gradient Thermal Cycler Feature:

1. A 10-inch LCD touchscreen, it features distinct single/dual/triple-channel modes to comprehensively accommodate the diverse requirements of the laboratory.

2. Peltier-controlled block ensures precise temperature control in every zone, providing a reliable amplification environment for precious templates and reagents.

3. User-friendly design with an adaptive, lever-operated heated lid, the unit allows for single-step closure and compression. It flexibly accommodates tubes of varying heights, effectively eliminating the risk of liquid leakage while ensuring comprehensive safety.

4. Real-time display of the operating status, along with support for secure account and password settings, ensures data security and controls access permissions.

5. Data can be easily imported and exported via the USB port, supports USB software updates, multi-file storage functionality can be customized.

Model

PCR-TC96SM

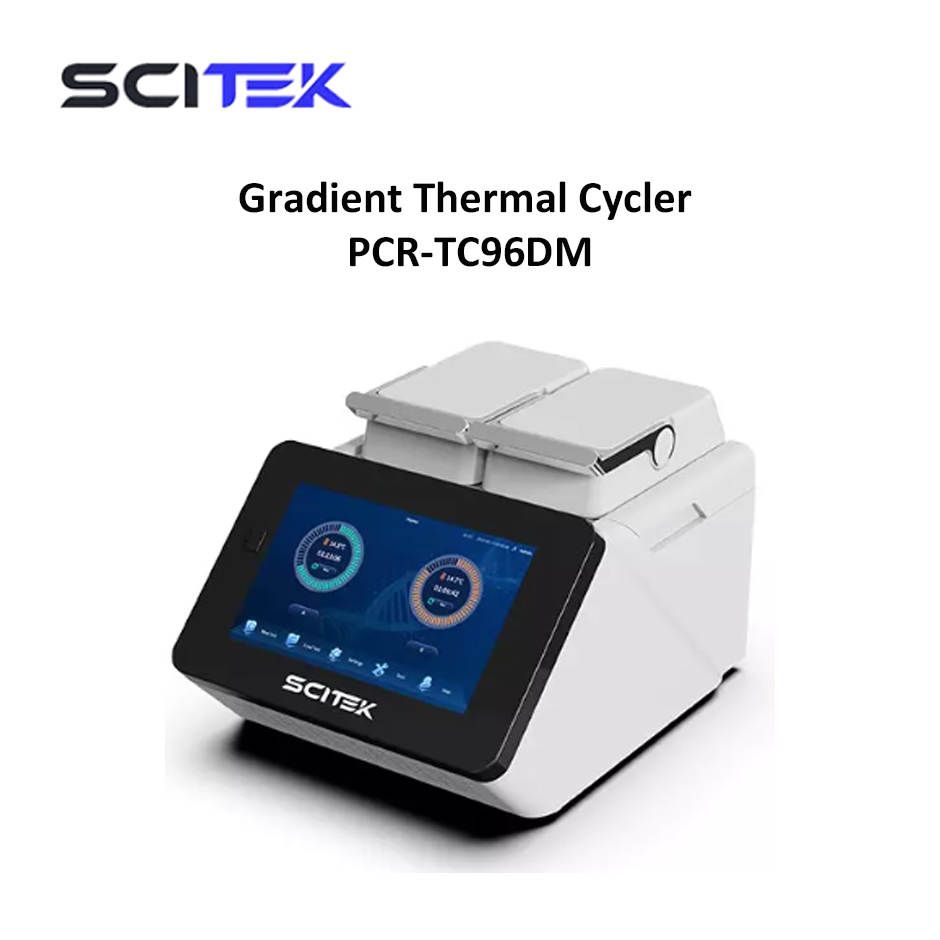

PCR-TC96DM

PCR-TC96TM

Sample Capacity

96×0.2 mL PCR tube

12×PCR 8 strips

1×0.2 mL 96-well PCR plate

/

Block

1×96

2×48

3×32

Temperature Range

0–105

Thermal Cycle Mode

Peltier

Max. Temperature Change Rate

5.0 /s

Uniformity

±0.2

Accuracy

±0.1

Resolution

±0.1

Temperature Control

BlockTube

Gradient Temp. Control Range

30–105

Lid Temperature Range

30–115

Gradient Span

1–42 °C. Enter 0 to turn off the gradient

1–25 °C. Enter 0 to turn off the gradient

Number of Program Storage

20000+ (USB Flash)

Communication Interface

USB,WIFI

User Defined File System

Up to 30 steps and 199 cycles in a single program

Power Supply

AC 220/110 V, 50/60 Hz

Consumption (W)

600

1000

1500

External Size (W×D×H)

264×422×310 mm

Shipping Size (W×D×H)

370×580×410 mm

N.W/G.W.

11/15 kg
