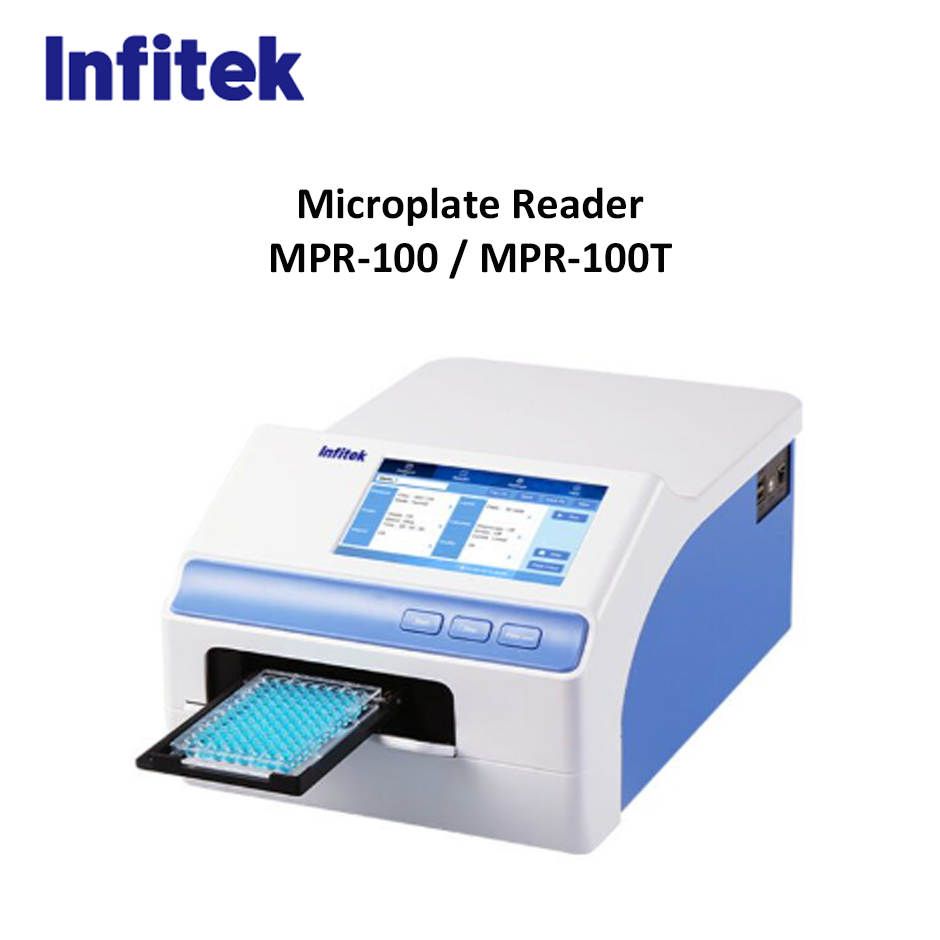

Microplate Reader MPR-100/MPR-100T
Microplate Reader MPR-100/MPR-100T
Brand INFITEK
Origin CHINA
--------------------------------------------------------
Description
The MPR-100/MPR-100T is a high-quality light absorption microplate reader based on a filter, with a wavelength range of 340nm~750nm, suitable for scientific research and clinical applications. 7-inch touch screen color LCD display, no keyboard required, easy to use.
----------------------------------------------------------------------------------------------------------------------------------------------------------------
Features
High-resolution 7-inch color touch screen, easy to operate, no keyboard required, easy to use;
Multiple software configuration, which can be used as a single machine or connected with a computer,and the results are exported in real time;
Absorbance range: 0.0~4.000 Abs, meeting different measurement requirements;
8-position filter wheel, standard 4 filters, optional other filters;
The built-in software can provide instrument control and data analysis, and can be directly connected to a U disk;
The detection speed is fast, and the whole 96-well microplate detection can be completed within 6 seconds.
MPR-100T has additional incubation function, with temperature range is from RT+4°C to 50 °C
-----------------------------------------------------------------------------------------------------------------------------------------------------------------
Advantages
High-resolution 7-inch touch screen, simple and intuitive operation, no keyboard required;
Visual layout, convenient and practical;
The microplate reader is equipped with the standard control and data analysis software Readerlt-I, which is convenient and quick for data detection;
Powerful data analysis function and excellent result report, not only can run the analysis independently, but also run the analysis on the computer.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------
|
Model |
MPR-100 |
MPR-100T |
|
|
Display |
7 inch high resolution capacitive touch screen |
||
|
Light Source |
6V, 10 W halogen lamp（Lifespan up to 2000h） |
||
|
Wavelength Range |
340nm ~ 750nm |
||
|
Optical Filter |
8-position filter wheel, standard 4 filters: 405nm, 450nm, 492nm, 630nm |
||
|
Absorbance Range |
0-4.0Abs |
||
|
Resolution |
0.001 Abs |
||
|
Linear Range |
R² ≥0.995 absorbance range 0~3.0 Abs |
R² ≥0.995 [0,3 Abs] |
|
|
Wavelength Accuracy |
≤±2nm |
||
|
Absorbance Repeatability |
CV≤0.3 % [0,3 Abs); CV≤1 % [3,4 Abs) |
||
|
Absorbance Stability |
≤0.005 Abs [0,3 Abs) ≤2.0 % [3,4 Abs) |
≤±0.005 Abs [0,2 Abs) ≤0.3 % [2,3 Abs) ≤2.0 % [3,4 Abs) |
|
|
Absorbance Accuracy |
≤±0.005 Abs [0,2 Abs) ≤±0.01 Abs [2,3 Abs) ≤±1.5 % [3,4 Abs) |
≤±0.005 Abs [0,2 Abs) ≤±1 % [2,3 Abs) ≤±1.5 % [3,4 Abs) |
|
|
Sensitivity / Detector |
≥0.01 A / photodiode |
||
|
Measuring Speed |
6s / 96-well plate, fast mode; single wavelength <15 s / 96-well, dual wavelength <28s / 96-well (common mode) |
||
|
Shaking |
Linear, 3 speeds adjustable |
||
|
Incubation Temperature Range |
—— |
RT.+4 °C ~ 50 °C |
|
|
Temperature Accuracy |
—— |
±0.5°C @ 37 °C |
|
|
Temperature Uniformity |
—— |
±0.5°C @ 37 °C |
|
|
User Interface |
Built-in software, touch screen input, external mouse |
||
|
Internal Storage |
Can store 1000 measurement programs and measurement results |
||
|
Port |
3×USB ports, connecting computer, printer and USB drive |
||
|
Electricity |
AC 100-240 V, 50-60 Hz, 2 A |
||
|
External Dimension (W*D*H) |
295*440*225 mm |
||
|
N.W./G.W. |
10kg/14kg |
11kg/14kg |
|
|
Package Dimension (W*D*H) |
560*430*390mm |
560*430*390mm |
|
