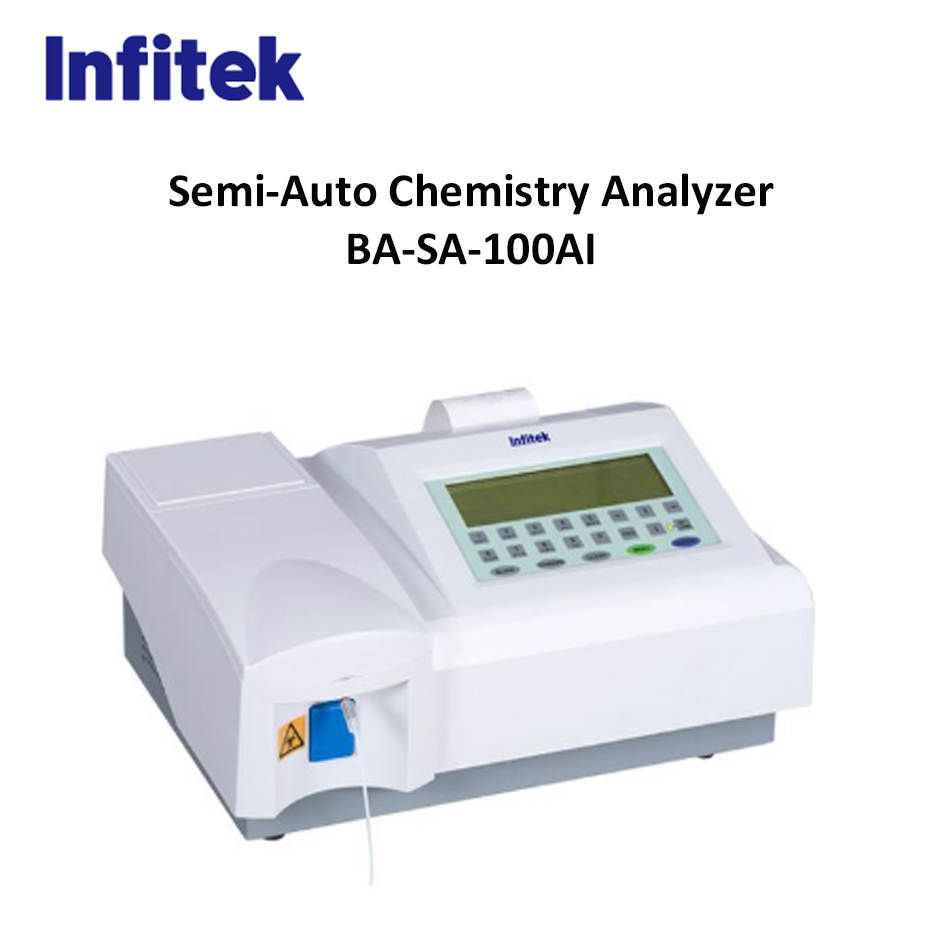

Description
Semi-Auto Chemistry Analyzer consists of a microprocessor circuit control system, optical colorimetric system, LCD display, and an operating keyboard. It is widely used in the routine biochemical test of human serum in medical units.
Features:
1. 6 detecting wavelengths: 450, 492, 510, 546, 578, 630nm
2. Up to 70 test items
3. Analytical modes: end-point, absorbance.
4. Large LCD. menu operation, hospital and patient information editing available
5. Inner thermal-sensitive printer. English comprehensive report available, including refer range
6. Memory for 10000 sample results
7. Few reagent needing, low detecting cost.
8. Open reagents
---------------------------------------------------------------------------------------------------------------------------------
|
Model |
BA-SA-100AI |
|
Test project |
≥70 |
|
Wavelength |
450,492,510,546,578,630nm |
|
Flow cell |
32μL,quartz glass |
|
Liquid volume |
200-3000μL |
|
Resolution |
0.001Abs(display),0.0001Abs(calculation) |
|
Carryover |
<1% |
|
Repeatability |
<1% |
|
Printer |
Internal thermal-sensitive printer, 58nm paper width |
|
Display |
240*64 LCD |
|
Communication |
RS-232 serial cable |
|
Electricity |
220/110VAC±15%,5060Hz 80W |
|
Temperature |
15℃-30℃ wet≤90% |
|
Dimension(L*W*H) |
380mm*330mm*160mm |
|
Weight |
7kg |
|
Full name |
Abbreviation |
Full name |
Abbreviation |
|
Alanine Aminotransferase |
ALT |
Inosine anhydride |
CRE |
|
Glutamic-oxaloacetic transaminase |
AST |
Triglyceride |
TG |
|
Alkalinity phosphatase |
ALP |
Cholesterol |
TCHO |
|
Total bilirubin |
TBIL |
Glucose |
GLU |
|
Direct bilirubin |
DBIL |
Serum potassium |
K |
|
Total protein |
TP |
Serum sodium |
Na |
|
Albumin |
ALB |
Serum chlorine |
Cl |
|
Urea nitrogen |
URE |
Serum Calcium |
Ca |
