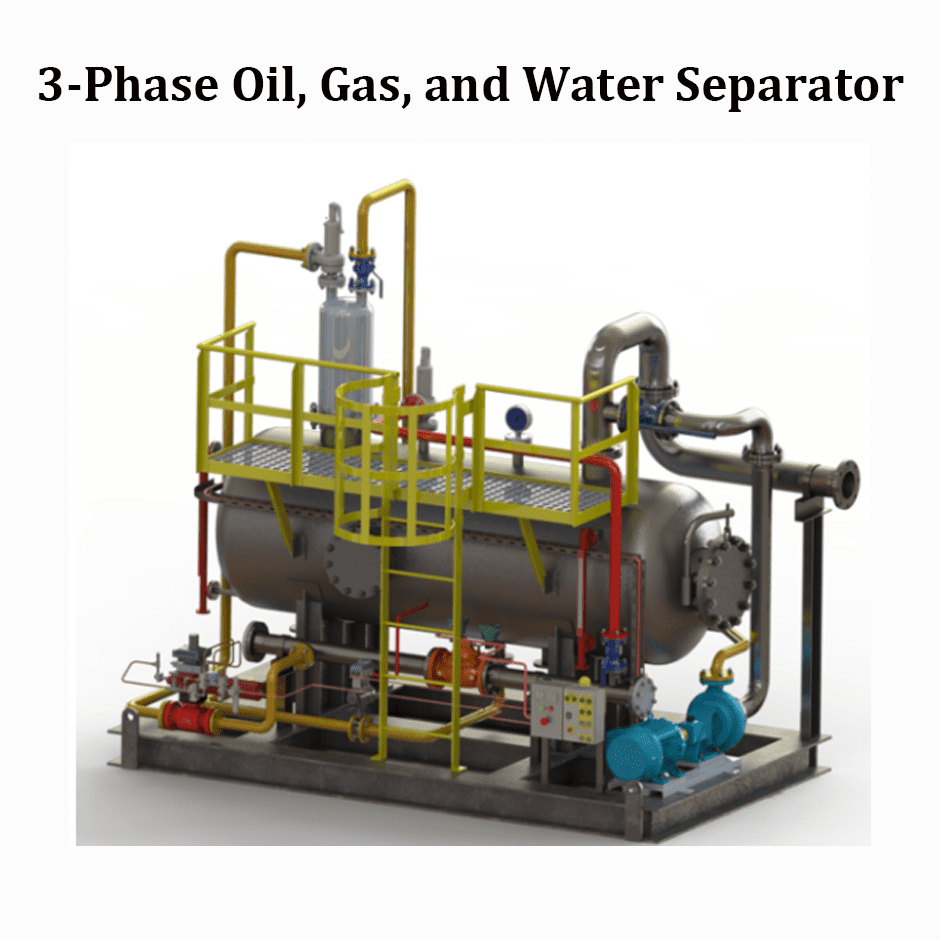

3-Phase Oil, Gas, and Water Separator

---------------------------------------------------------

Ergil offers you the best solution thanks to its wide product range and 40 years of engineering experience. Erbil’s highly engineered separators guarantee a perfect oil separation.

There are several kind of common separator types;

• Knockout drum, having no internal
• Scrubber, Separation progress performed by the liquid inside
• Flash tank, designed to separate vapor and liquid flows through internal devices
• Slug catcher, to remove intermittent large volumes of liquids carrying gas stream
• Liquid-liquid separator, to remove hydrocarbons from water content

The 3-Phase Oil, Gas, and Water Separator is a sophisticated system engineered for the effective separation of oil, gas, and water from a composite fluid stream. Integral to the oil and gas sector, this separator is key in purifying extracted fluids, streamlining processing, and refining operations while adhering to environmental regulations.

Design and Benefits

• EPC work completions
• Engineering submittals and performance guarantee
• In-house engineering support for all dicipline
• Simulating progress by engineering software to see different cases
• Check and improve your operational efficiency with simulating control philosophy by electronically
• No sub-vendors for internals design and manufacturing
• Provides training, spare parts and guarantees for the safe operation of our equipment
• Construction Supervising services
• Repairing and revision works at site for stamped vessels
• Performance monitoring and adjustment activities after commissioning works
• Skid mounted, modular skids and process units
• After-sales service available for your ongoing spare-parts and mechanical maintenance needs
• Project Management & Consulting
• Logistics & Forwarding to site
• Predictive, preventative maintenance, and operations training

Internals

The separator employs gravitational and centrifugal forces, coupled with cutting-edge coalescing materials. Key components include:

• Inlet Diverter: Manages the incoming fluid stream, reducing turbulence.
• Gravity Separation Section: Utilizes density differences to segregate oil, water, and gas.
• Coalescer: Enhances separation of small oil droplets from water.
• Mist Extractor: Captures tiny droplets of oil and water from the gas phase.
• Weir Mechanisms: Segregate and collect oil and water in distinct compartments.
• Sand Jet System: (If applicable) Removes sand and solid particles.
• Vortex breaker
