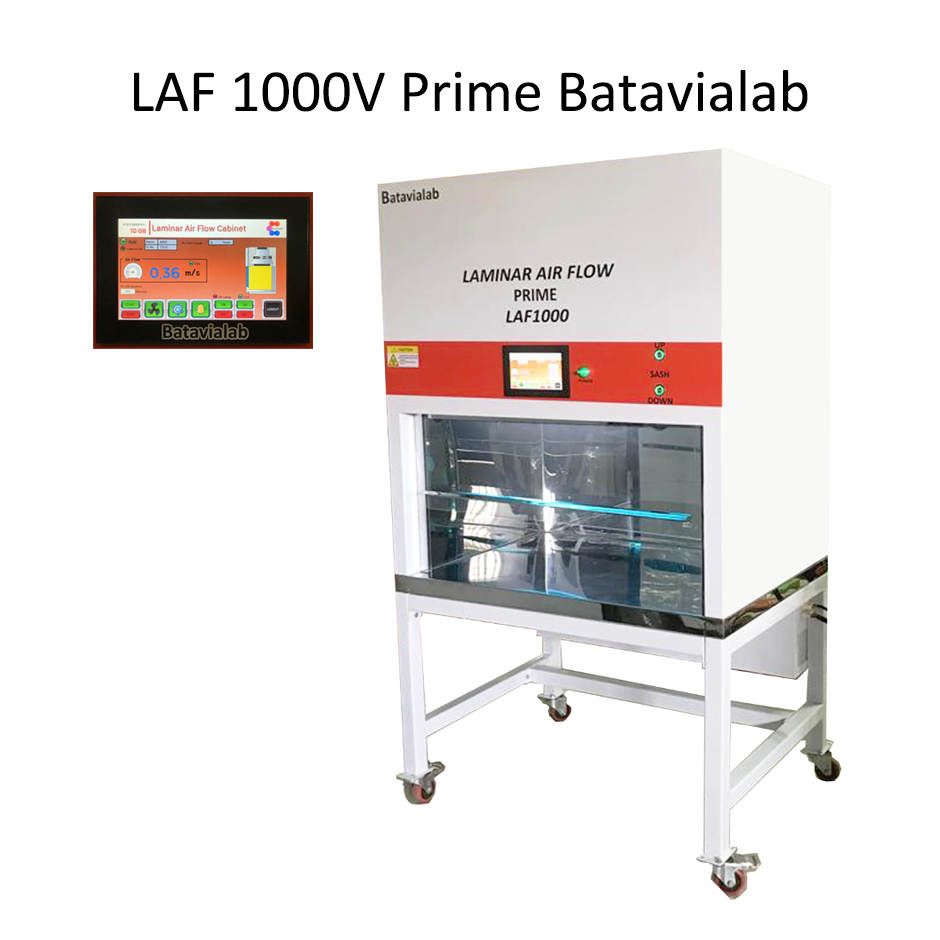

Laminar Air Flow Cabinet LAF 1000V Prime Batavialab is a lab facility use to prevent contamination of media, reagent or any product and particle sensitive materials during its preparation. It has a uniform vertical (downward) laminar airflow from the ceiling filter across the entire work surface (single direction flow with no turbulance).

Control Panel

A Logic Panel consisting of a PLC (Programmable Logic Controller) and HMI (Human-Machine Interface) in a single 7 Inches Touchscreen display device to set Airflow Velocity Set Point, PID Number (Proportional-Integral Derivative Number), and the required Blower power (in percentage). In addition, you can also enter parameters limit and the service life of Filter, UVC and LED lights related to visible alarm settings. On this display, you can also turn the LED and UVC lights On/Off and set the duration of the UVC light for sterilization.

Features in HMI

1. Set Point Menu
2. Setting Menu for Calibrator or Technician
3. Alarm Menu
4. On/Off UVC Germicidal Lamp
5. On/Off LED Lamp
6. Sterilization duration setting
7. Real time airflow velocity
8. Date and time
9. LAF work simulation image
10. Log in and log out access

Dimension

1. External 1000 (W) x 770 (D) x 1820 (H) mm
2. Internal 900 (W) x 600 (D) x 600 (H) mm

Construction

1. External material, Powder coated-steel. Corrosion resistant and easy to clean surface
2. Work area material made from Stainless Steel 304

Airflow velocity

1. Vertical velocity type
2. Positive pressure airflow system
3. Airflow velocity > 0,30 m/m
4. User adjustable speed in Set Point Menu on HMI Display
5. Automatic Blower speed by Blower, Sensor and Logic Panel integration after calibration and set the Set Point

Filter

1. Pre-Filter Polyester as first filter of LAF 1000V Prime
2. HEPA Filter H14 Efficiency 99,999% at 0,3µm as standard filter of LAF 1000V Prime
3. ULPA Filter U15 Efficiency 99,9995% at 0,12µm as optional filter (replacing HEPA Filter)

Sterilization

1. UVC Germicidal lamp ≥ 20W, Wavelength 253,7 nm, radiation ≥ 0,040 mW/sq cm
2. Adjustable time of sterilization up to 60 minutes by operator
3. Safety feature: time and auto turn off if Sash is opened

Cabinet Light

1. LED Lamp T5 12W*1
2. Intensity ≥ 650 lux

Sash

1. Tempered glass Sash, thickness ≥ 5mm
2. UVC Proof, Sash transmits zero radiation of UVC
3. Opening safety height 203mm
4. Sash opening/closing using buttons that drives a motor (motorized Sash)

Electricity

1. Voltage 220 ± 10% VAC, Freq 50/60 Hz, Single phase
2. Power consumption Max. 450 W
3. Two Electrical outlet 16A/230V inside cabinet, IP54, Mennekes, Germany

Stand Configuration

1. Stand height up to 700mm (include standard caster swivel)
2. Caster swivel with lockable front casters

Test Result Certificate from Domestic Testing Agency accredited by KAN

TKDN 35,02%
