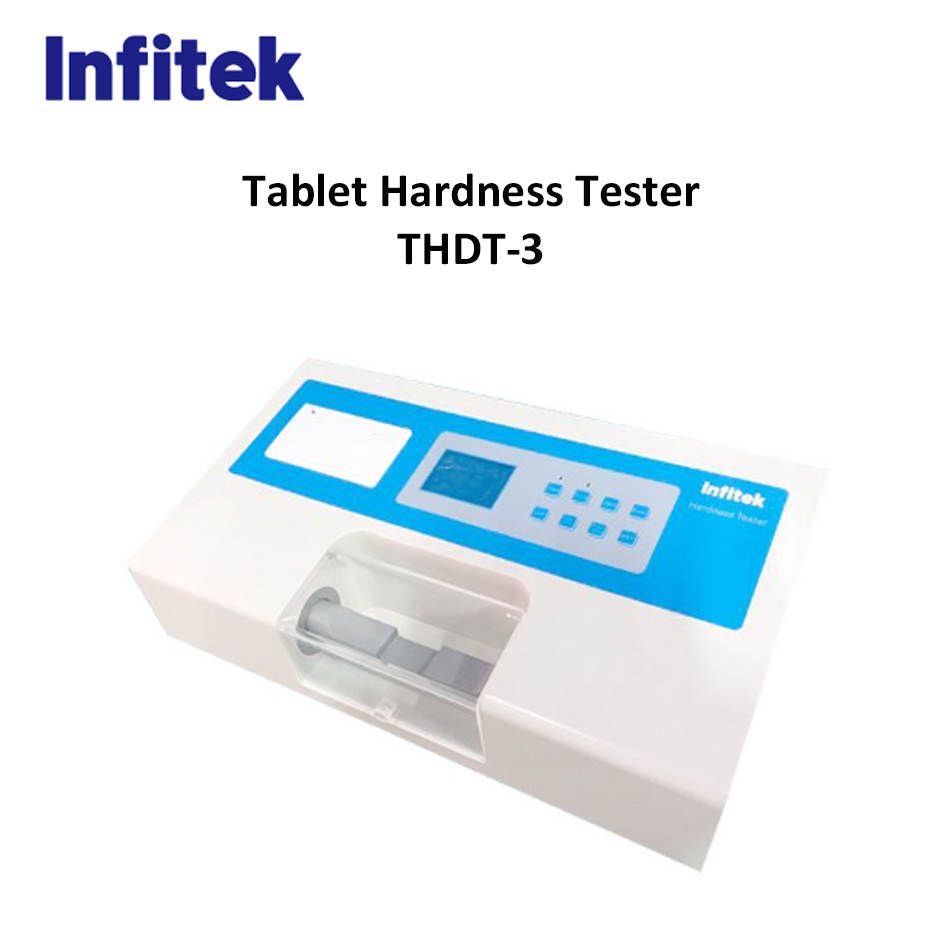

Tablet hardness tester is used to measure the crushing hardness of tablets.
Features:
1. High-precision pressure sensor ensures the precision and reproducibility of test.
2. The high-definition LCD screen displays rich content. Users can enjoy intelligent operation according to the screen prompts. Prompts and quantitative indicators are given for each operation process.
3. The system can realize automatic tablet compressing, automatic display, automatic latching, automatic reset, automatic cycle test, automatic linear error correction and automatic fault diagnosis.
4. Strong data processing ability; statistics, analysis, printing and display are available for test result. It can submit the reports of maximum and minimum values, standard deviation and range of change of the test sample.
5. Automatic calculation of tablet return travel can compress your test duty time.
6. One-key conversion of measuring unit (Newton-Kilogram)
7. New type front paper change mini-printer.
|
Model |
THDT-3 |
|
Hardness Test Range |
2~350N, can be customized to 500N (50kg) |
|
Resolution |
0.1N (0.01kg) |
|
Hardness Measurement Accuracy |
Range ± 0.5% |
|
Tablet Measurement Diameter |
2~40mm |
|
Repeated Measurement Error |
±1% |
|
Number of Testing Tablets in Each Group |
≤100 tablets |
|
Measurement Unit |
Newton (N) Kilogram force (kg f) (1kgf=9.81N) |
|
Interface |
Standard serial printing interface, with built-in micro printer (optional dot matrix printer) |
|
Overall Dimensions (L*W*H) |
500mm*400mm*160mm |
