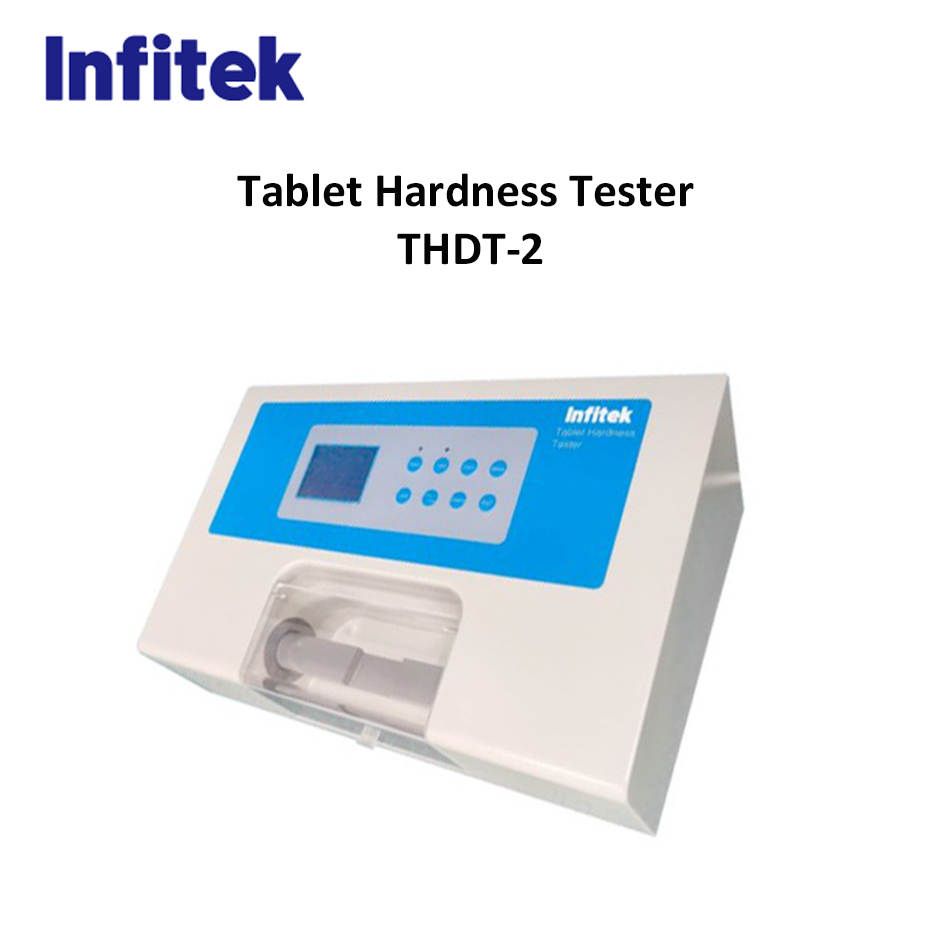

Tablet Hardness Tester THDT-2

Hanya Tersisa 1 lagi




Tablet hardness tester is used to measure the crushing hardness of tablets.


Features

1. High-precision pressure sensor ensures the precision and reproducibility of test.

2. High-definition LCD is adopted, the display contents are rich; users can enjoy intelligent operations according to the screen tips, Chinese character hint and quantitative index are provided for each operational process.

3. The system can realize automatic tablet compressing, automatic display, automatic latching, automatic reset, automatic cycle test, automatic linear error correction and automatic fault diagnosis.

4. Strong data processing ability; statistics, analysis, printing and display are available for test result. It can submit reports of maximum and minimum values, standard deviation and range of change of the test sample.

5. Automatic calculation of tablet return travel can compress your test duty time.

6. One-key conversion of measuring unit (Newton-Kilogram)

7. Convenient and efficient measurement of tablet diameter.


Hardness test range

2-200N  0.2KG-20KGCustomizable 500N(50KG)

Resolution

0.1N  0.01Kg

Hardness measurement accuracy

range ± 0.5%

Tablet measurement diameter

2-40mm

Repeated measurement error

±1%

Measuring unit

Newton (N) Kilogram(KG) Kilogram force (Kg f) (1Kgf=9.81N)

Number of testing tablets in each group

≤100 tablets

Machine power

40W

Overall dimensions (W*D*H) (mm)

400*240*140

Package Dimension (W*D*H) (mm)

530*380*270

G.W.(kg)

10.5
