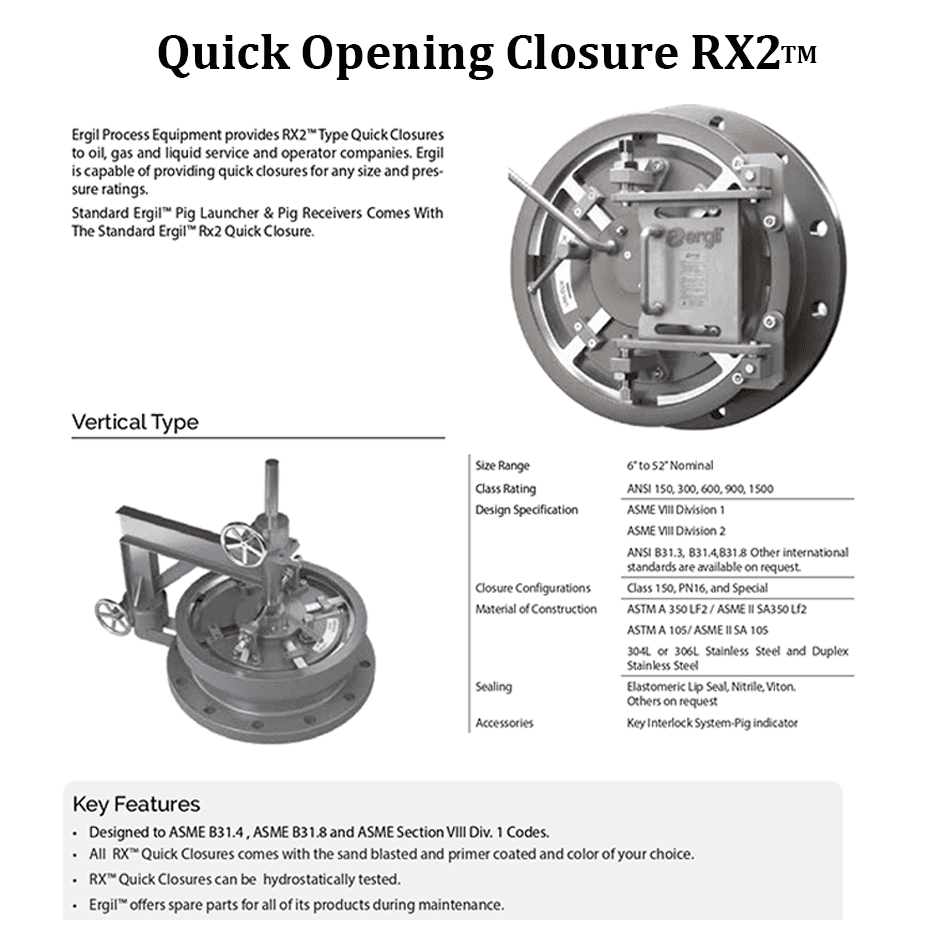

Quick Opening Closure RX2

----------------------------------------

Ergil Process Equipment provides RX2™ Type Quick Closures to oil, gas and liquid service and operator companies. Ergil is capable of providing quick closures for any size and pressure ratings. Standard Ergil™ Pig Launcher & Pig Receivers Comes With The Standard Ergil™ Rx2 Quick Closure.

• Size Range 6” to 52” Nominal
• Class Rating ANSI 150, 300, 600, 900, 1500
• Design Specification ASME VIII Division 1
• ASME VIII Division 2
• ANSI B31.3, B31.4,B31.8 Other international
• standards are available on request.
• Closure Configurations Class 150, PN16, and Special
• Material of Construction ASTM A 350 LF2 / ASME II SA350 Lf2
• ASTM A 105/ ASME II SA 105
• 304L or 306L Stainless Steel and Duplex
• Stainless Steel
• Sealing Elastomeric Lip Seal, Nitrile, Viton.
• Others on request
• Accessories Key Interlock System-Pig indicator

Key Features

• Designed to ASME B31.4 , ASME B31.8 and ASME Section VIII Div. 1 Codes.
• Ergil™ offers spare parts for all of its products during maintenance.
• Inspection and test certificates will be provided for each item.
• Third party inspection can be provided TUV, Veritas, or Lloyd if it is requested.
• RX™ Quick Closures can be hydrostatically tested.
• All RX™ Quick Closures comes with the sand blasted and primer coated and color of your choice.
