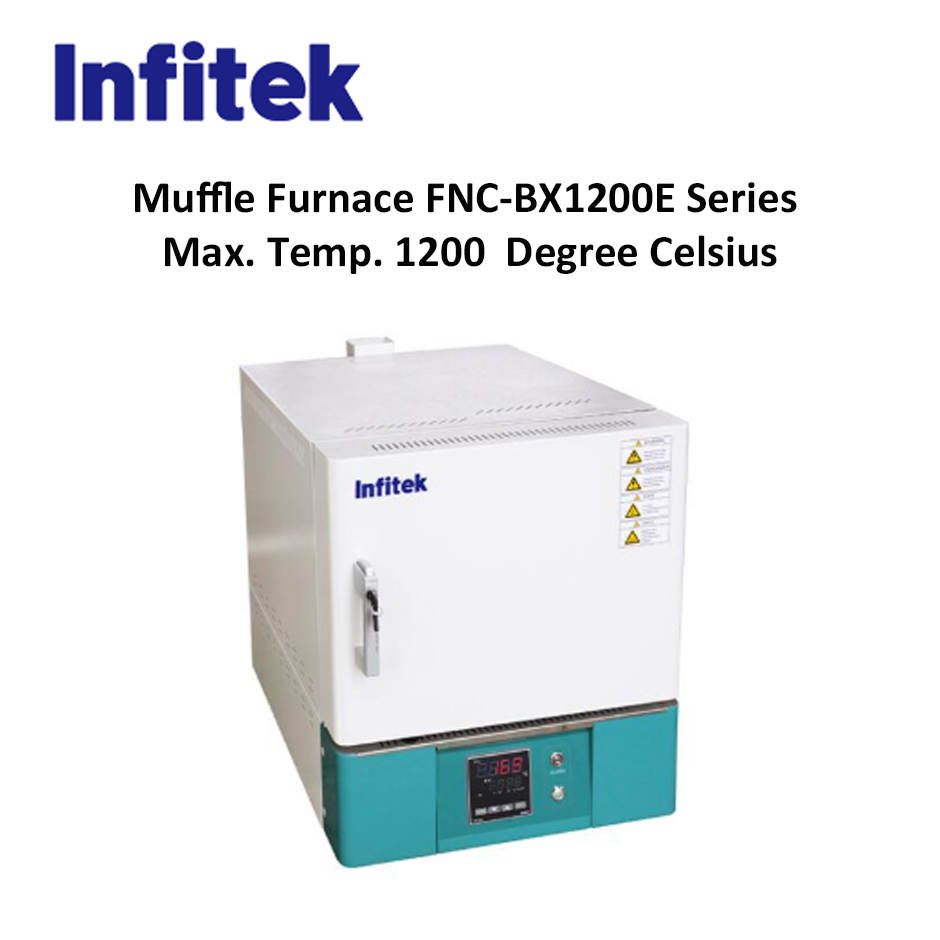

Muffle Furnace FNC-BX1200E Series Infitek
Key Features
1. E Type 1200°C maximum operating temperature.
2. High purity fibrous alumina insulation for maximum energy saving.
3. E Type Xianmen Yudian single-stage temperature controller.
Safety
1. Double layer steel structure with air cooling fan to keep furnace’s exteriors
safe to touch.
2. Safety interlock with automatic power off the furnace when door is opened.
|
Model |
FNC-BX1200-2.5E |
FNC-BX1200-5E |
FNC-BX1200-8E |
FNC-BX1200-10E |
||||
|
Heating mode |
Alloy wire heating in three sides left; right; top side. |
|||||||
|
Temperature |
Max. Temp(℃) |
1200 |
||||||
|
Accuracy(℃) |
±1 |
|||||||
|
Heating Rate |
≤30min |
|||||||
|
Chamber Dimension(W*D*H)(mm) |
120*200*80 |
200*300*120 |
200*300*200 |
250*400*160 |
||||
|
External Size(W*D*H)(mm) |
450*685*600 |
530*785*640 |
530*785*720 |
600*895*700 |
||||
|
Capacity(L) |
2 |
7 |
12 |
16 |
||||
|
Heating Element |
Alloy heating wire |
|||||||
|
Thermocouple |
K type |
|||||||
|
Chamber Material |
Ceramic fiber |
|||||||
|
Outer shell |
cold rolling steel electrostatic spraying exterior |
|||||||
|
Temp. control mode |
E Type : domestic Xianmen Yudian single-stage temperature controller |
|||||||
|
Electricity |
AC220V/6.6A |
AC220V/13.6A |
AC220V/20.4A |
AC380V/9.9A |
||||
|
Max. Consumption |
1.5kW |
3.0kW |
4.5kW |
6.0kW |
||||
