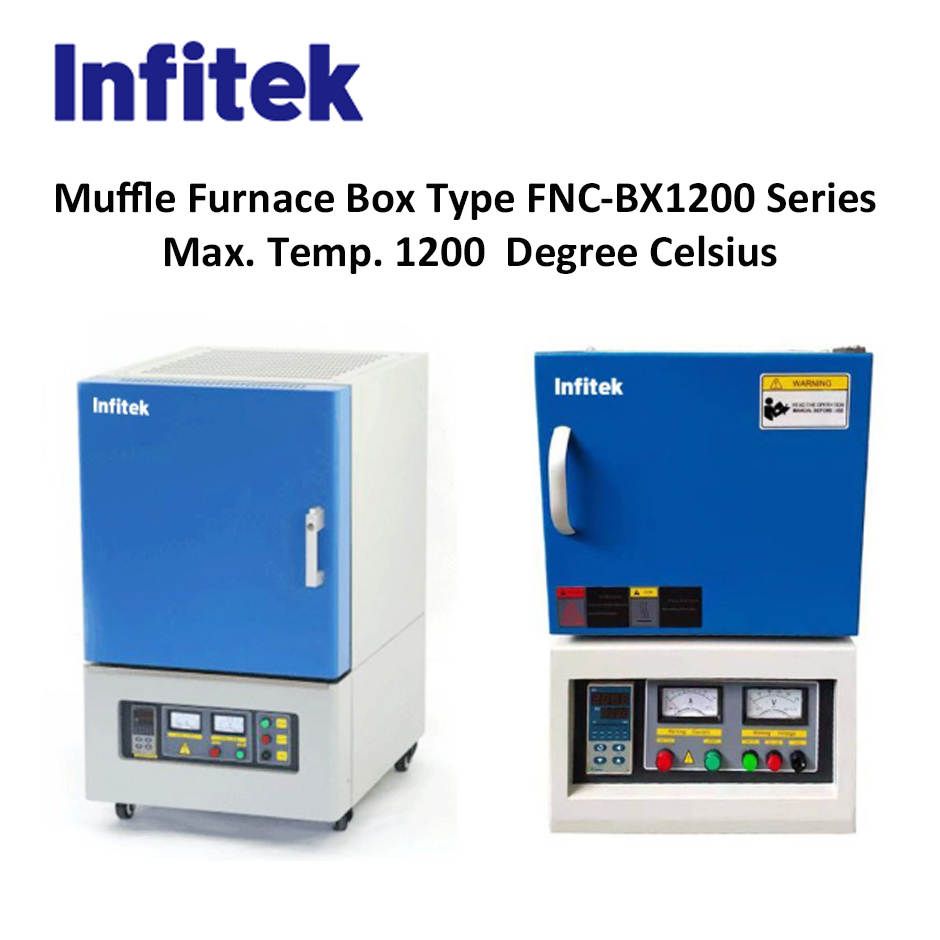

Muffle Furnace Box Type 1200 Degree Celsius FNC-BX1200 Series Infitek
1. 1200°C maximum operating temperature.
2. High purity fibrous alumina insulation for maximum energy saving.
3. Double layer steel structure with air cooling fan to keep furnace’s exteriors safe to touch.
4. Safety interlock with automatic power off the furnace when door is opened (as optional).
5. PID automatic control via current limiting phase angle fired the resistor, e.g. SC R (Silicon Controlled Rectifier).
6. Power control with 30 segments programmable.
7. Standard Accessories: Thermal gloves, Crucible Tongs, Thermocouple, Furnace Door Block, and User Manual.
|
Model |
FNC-BX1200-1 |
FNC-BX1200-2II |
FNC-BX1200-3 |
FNC-BX1200-6 |
FNC-BX1200-9 |
|
|
Temperature |
Max. Temp(℃) |
1200 |
||||
|
Continuous Working Temp.(℃) |
≤1100 |
|||||
|
Heating Rate |
0~30℃/min, suggest to be 15℃/min; |
|||||
|
Accuracy(℃) |
±1℃ |
|||||
|
Uniformity(℃) |
±5℃ |
|||||
|
Chamber Dimension(W*D*H)(mm) |
100*100*100 |
150*200*150 | 200*300*120 | 200*300*200 | 300*400*300 |
|
|
External Size(W*D*H)(mm) |
350*470*570mm |
510*700*810mm |
470*700*640mm |
550*700*895mm |
640*850*1050mm |
|
|
Capacity(L) |
1 |
4.5 |
7.2 |
12 |
36 |
|
|
Heating Element |
Resistance wire with Mo |
|||||
|
Thermocouple |
K type |
|||||
|
Chamber Material |
High purity alumina polycrystalline fiber |
|||||
|
Electricity |
AC 220V,50Hz/60Hz |
AC 380V, 50Hz/60Hz |
||||
|
Max. Consumption |
1kW |
2kW |
3kW |
6kW |
9kW |
|
