Basic Information

Model

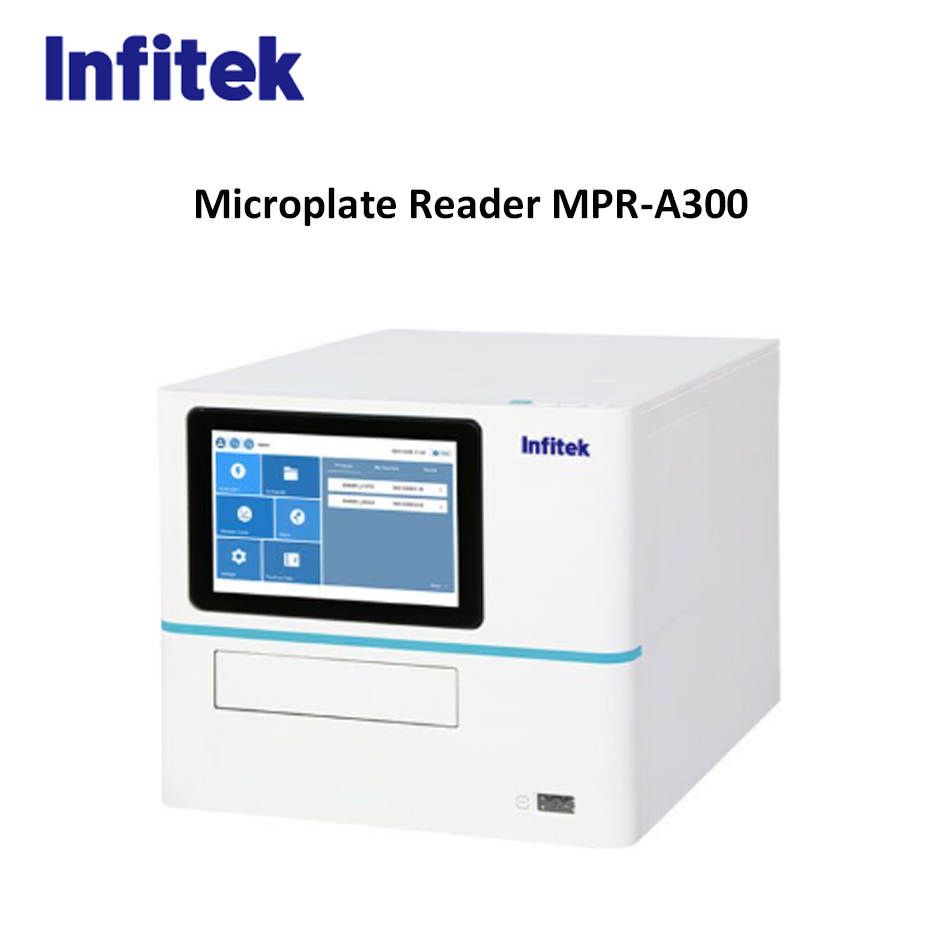

MPR-A300

Function

Absorbance, fluorescence, luminescence

Microplate Types

6/12/24/48/96/384 wells

Absorbance

Light Source

High energy xenon flash lamp

Detector

PD

Wavelength Accuracy

2nm

Wavelength Repeatability(SD)

0.2nm

Half Width (FWHM)

<2.5nm

Wavelength Range

200-1000nm, 1nm step

Measuring Range

0-4 OD

Resolution

0.0001 OD

Accuracy

96-precision mode ±(1.0 %+0.003Abs) @ (0.0-2.0Abs]±2.0 % @ (2.0-3.0Abs]

Repeatability

CV < 1.0 % or SD< 0.003 Fast (0.0-3.0Abs]

CV < 0.5 % or SD< 0.003 Accurate (0.0-3.0Abs]

Stray Light

0.1 % @ 220nm

Linear

R²>0.999 @ [0.0-3.0Abs]

Reading Time

96-well plate: fast <15s

Fluorescence

Reading Mode

Top reading

Excitation Light Source

High energy xenon lamp

Detector

PMT

Wavelength Range

EX: 200-1000nm; EM: 270-850nm

Filter EX / EM

3 groups: EX470/EM525, EX523/EM564, EX624/EM692 (other wavelengths can be replaced)

Detection Limit

≤1pm

Linear Dynamic Range

6 logs

Luminescence

Detector

PMT

Detection Limit

15amol / hole

Linear Dynamic Range

6 logs

Crosstalk

≤0.005 %

Wavelength Range

200-850nm

Shaking & Incubation

Shaking Mode

Linear, circular, double circular

Incubation Temperature

RT. +4 °C to 45 °C

Temperature Uniformity

±0.5 °C @37 °C

Software

Software Interface

English

Screen Size

10-inch LCD display

Operation Method

Touch capacitive screen; use mouse

Data Capacity

10GB

Compatibility

Support PC software, Win7 to Win10 64 bit

Data Transmission and printer

Test data report can be uploaded to PC server via FTP. Connect the printer through the PC end

Others

Instrument Port

2 USB A type ports / 1 USB B type port

1 Ethernet port

RS 232 bus interface (injector connection)

Electricity

AC 100~240 V, 50~60 Hz

Power

160W, 24V, 6.67A (can be adjusted according to hardware requirements)

External Dimension(W*D*H)

420*550*386 mm

N.W./G.W.

33kg/70kg

Package Dimension(W*D*H)

800*780*800mm

u-Nano Ultra-Micro Plate (Optional)

Number of Samples

1-16

Sample Detection Volume

2-4μL

Automatic Injector Module (Optional)

Quantity

1, 2

Dispensing Volume

5-1000μL, 1μL increment

Liquid Injection Speed

125-500μL / s

Accuracy

±1μL @ 5-50μL ±2% @ 51-1000μL

Waste Liquid Collection

50mL

PC Software (Optional) Reader lt - ll

Modular Filter (Optional)

ABS Optical Performance Validation Board（Optional）
