Gel Imaging System for Electrophoresis Servicebio

Hanya Tersisa 1 lagi



Tags : Servicebio

Suitable for nucleic acid gel imaging/excision and protein gel imaging. Imaging can be selected in color or monochrome. Standard configuration includes 310/254/365 nm LED light sources, providing more uniform illumination, superior image quality, and longer service life.

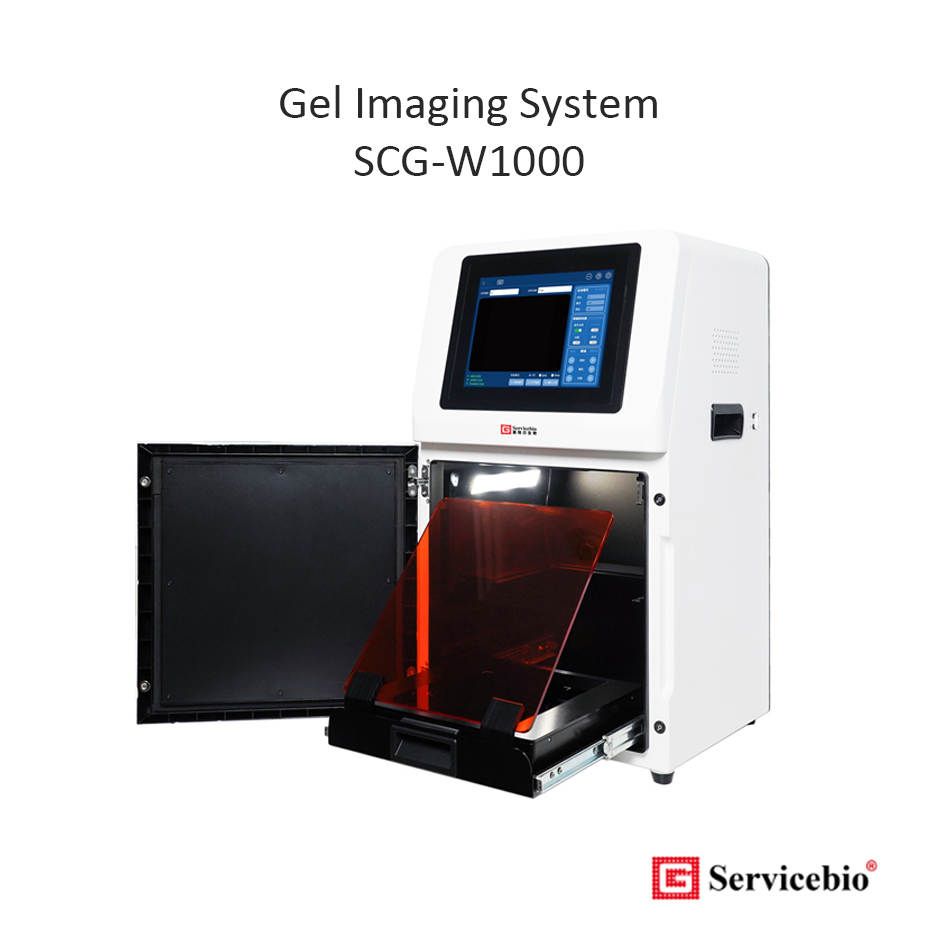

SCG-W1000 Gel Imaging System:

  1. Suitable for nucleic acid gel imaging/excision and protein gel imaging.
  2. Captures images in either color or black-and-white modes.
  3. Standard configuration includes 310nm/254nm/365nm LED light sources for more uniform illumination, better image quality, and longer lifespan.
  4. Features a UV laser protective shield for safe gel excision with high protection level.
  5. Recommended nucleic acid electrophoresis combination (with Servicebio SerRed Nucleic Acid Dye G3606-100UL+ Integrated Horizontal Electrophoresis System SVL-2 for improved experimental results.

--------------------------------------------------------------------------------------------------

Cocok untuk pencitraan/eksisi gel asam nukleat dan pencitraan gel protein. Pencitraan dapat dipilih dalam warna atau monokrom. Konfigurasi standar mencakup sumber cahaya LED 310/254/365 nm, yang memberikan pencahayaan yang lebih seragam, kualitas gambar yang lebih unggul, dan masa pakai yang lebih lama.


Sistem Pencitraan Gel SCG-W1000:

  1. Cocok untuk pencitraan/eksisi gel asam nukleat dan pencitraan gel protein.
  2. Menangkap gambar dalam mode warna atau hitam-putih.
  3. Konfigurasi standar mencakup sumber cahaya LED 310nm/254nm/365nm untuk pencahayaan yang lebih seragam, kualitas gambar yang lebih baik, dan masa pakai yang lebih lama.
  4. Dilengkapi pelindung laser UV untuk eksisi gel yang aman dengan tingkat perlindungan yang tinggi.
  5. Kombinasi elektroforesis asam nukleat yang direkomendasikan (dengan Pewarna Asam Nukleat Servicebio SerRed G3606-100UL+ Sistem Elektroforesis Horizontal Terintegrasi SVL-2 untuk hasil eksperimen yang lebih baik.

-----------------------------------------------------------------------------------------------------------------------

Technical Specifications and Precautions

Technical Specifications
  Product NameGel Imaging System
  Cat. No.SCG-W1000
  Dimensions400×371×700mm
  CameraPixel Resolution6.3 million pixels
Resolution3072×2048
Pixel Size2.4×2.4μm
Target Size1/1.8”(7.37×4.92mm)
Full Well Capacity10.4ke-
Sensitivity760mv
Readout Noise2.14e-
Dark Current0.15mV
Signal-to-Noise Ratio40.2dB
Exposure Time17us-15s
Binning Mode1×1,2×2,3×3,4×4
Grayscale Selectable 8-bit (256 grayscale levels) or 16-bit (65,535 grayscale levels) settings.
Camera TypeColor Camera
LensAperture  F1.0-F16
Focal Length  8-48mm
Type  Motorized zoom lens
close-up lens  2 times
Filter  590/60nm
  Light SourceBright Field Light Source  Downward-facing LED white light source, symmetrically distributed on both sides
UV Light Source

310 nm LED array, uniform transmission illumination. Epi-illumination 254 nm / 365 nm ultraviolet LED light source, symmetrically distributed on both sides.

Blue/White Dual Light Sources

Blue/white transmission switching, each with 3-level cyclically adjustable power.
  Dark BoxBrightfield light sourceEpi-illumination LED white light source, symmetrically distributed on both sides.
Door ControlDoor control sensor can control the on/off of the bright field light
source
Field of ViewEffective field of view is 240×240 mm
Gel CuttingAfter opening the door, the UV light source can be pulled out cutting, in conjunction with a UV protection shield
Software   Functions Camera SettingsAdjust contrast, exposure time, and gain
Lens adjustmentChoose adjustment range: coarse adjustment, fine adjustment, super-fine adjustment
Lens: Zoom, focus, aperture adjustment
Mode SelectionNucleic Acid Gel Mode, Protein Gel Mode, Gel Cutting Mode
lmage croppingImage cropping: Crop the necessary parts of the bands
Industrial Computer

10.4"display(1024x768)Windows 100S

16GB RAM,512GBSSD,Integrated Bluetooth/Wi-Fi

External InterfacesUSB 3.0×2
Operating Voltage90-132VAC/180-264VAC(selected via switch).47-63 Hz
Product Power≤300W
Product Net Weight30.65Kg
