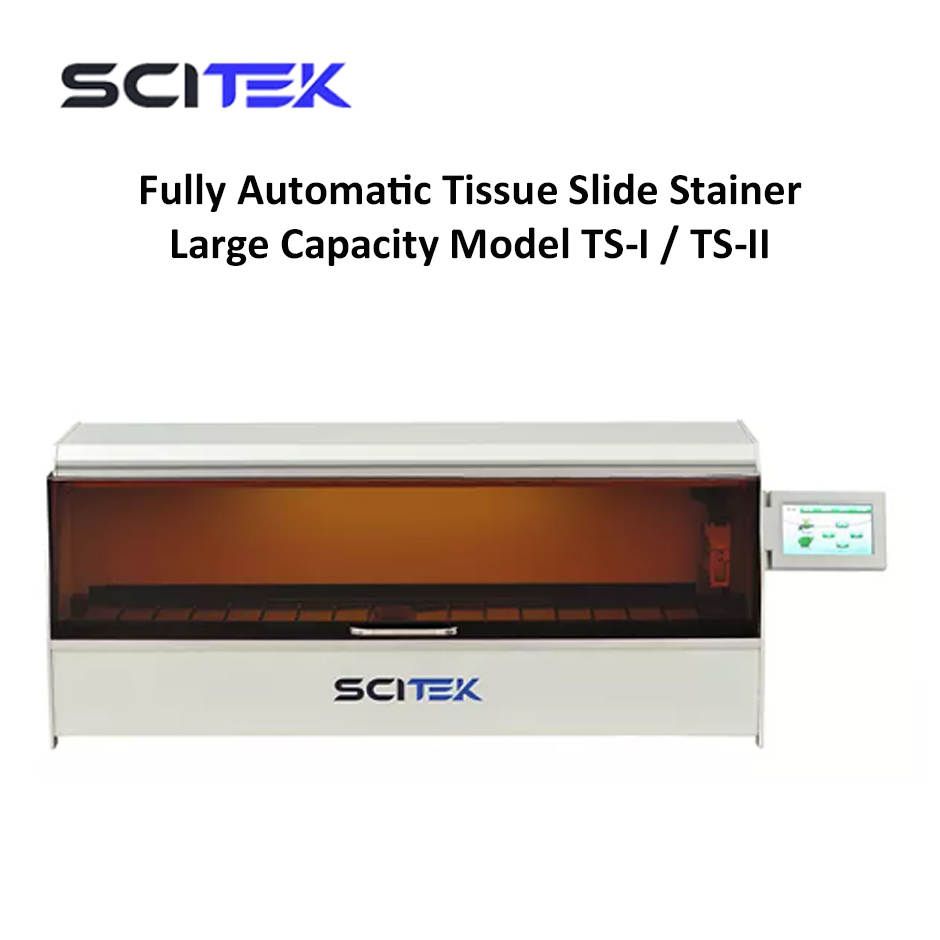

Fully Automatic Tissue Slide Stainer Large Capacity TS-I / TS-II Scitek

Hanya Tersisa 1 lagi




Fully Automatic Tissue Slide Stainer Large Capacity TS-I / TS-II

Brand SCITEK

Origin CHINA


Application:

Automated slide stainers are primarily used as biomedical tools, typically in medical laboratories. This automatic slide stainer provides staining flexibility for staining up to hundreds of slides simultaneously. Suitable for use in histopathology, hematology and cytopathology studies, it is the ideal tool to facilitate the preparation of slides for diagnostic and research purposes.



Advantage:

1. 7-inch intelligent touch color screen for real-time display of working status, with clear and intuitive visualization.

2. Supports dye name entry and viewing, along with real-time status monitoring for more intuitive data presentation. (Only for TS-II)

3. Synchronous display of working stations enables clear and convenient progress tracking.

4. Intelligent hot air control for automatic drying.

5. Imported solenoid valves with intelligent control enable fully automatic water intake and drainage for thorough cleaning.

6. Built-in circulating air purification system, efficiently absorbs harmful gases. (Only for TS-I)

 --------------------------------------------------------------------------------------------------------------------------------------

Model

TS-I

TS-II

Number of Processing chambers

14 (1 for rinsing, 1 for drying)

18 (1 for rinsing, 1 for drying)

Single Chamber Capacity

1500 mL

750 mL

Processing Time per Station

0-59 min 59 sec (adjustable)

Dripping Time

adjustable within 0-30 s

Temporary Rinse Time

0~59 seconds

Number of Slides Processed Simultaneously

70 pcs

50 pcs

Programmable

20 sets

Programmable Immersion Sequence

1-28

1-36

Power Supply

AC100 V - 120 V / AC 220 V- 240 V 50 Hz / 60 Hz

Consumption

500 W

External Size (W×D×H)

1380×420×470 mm

N.W.

70 kg

75   g
