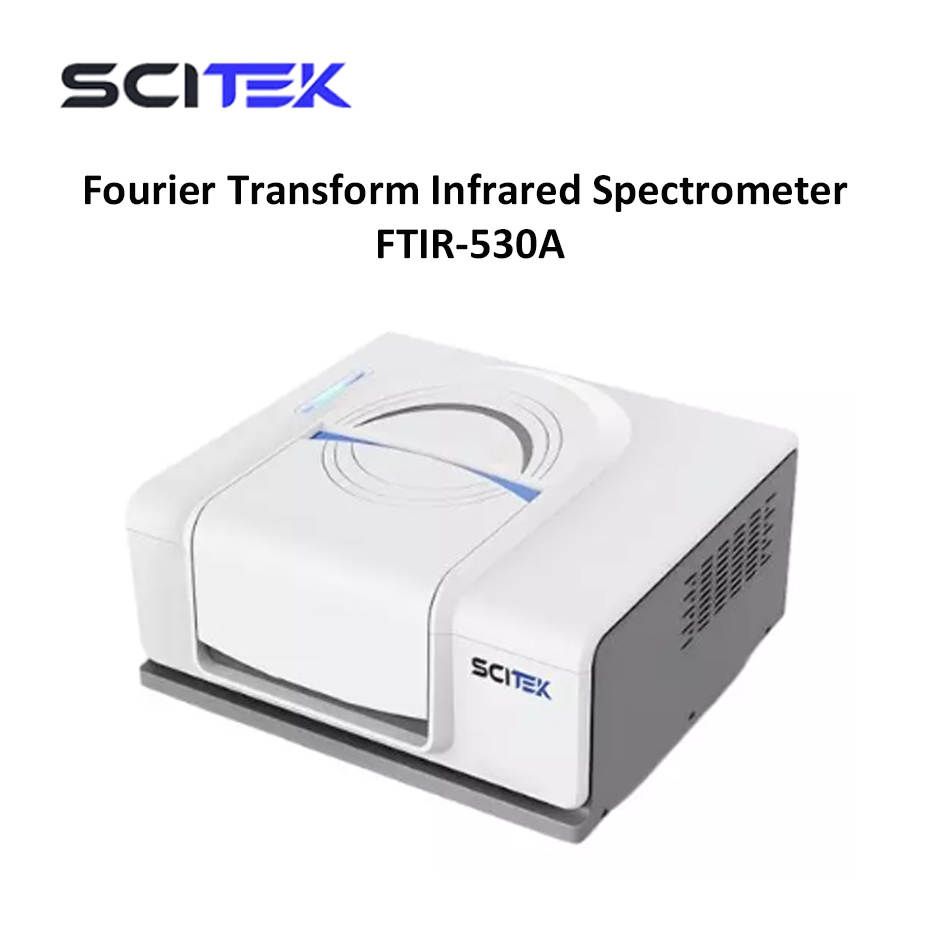

Model	FTIR-530A
Spectral Range	Extended mid-infrared range, 7800–350 cm-1
Resolution	0.85 cm-1
Wave Number Accuracy	±0.01 cm-1
Signal-To-Noise Ratio	Better than 40,000:1 (RMS value, at 2100–2200 cm-1, resolution: 4 cm-1, 1 minute data collection)
Beam Splitter	Multilayer Ge coated KBr
Ir Source	High intensity, long lifetime, air-cooled IR source
Light Source Interferometer	Cube-corner Michelson interferometer
Detector	LiTaO3
	DLATGS, MCT detector (optional)
Scanning Speed	Microprocessor control, different scanning speed selectable.
Software	Main FTOS Suite software workstation, compatible to all version Windows OS
	Audit  compliance software (optional)
Interface	Ethernet & WIFI wireless
Data Output	Standard data format, report generation and output
Status Diagnosis	Power on self-check, real-time temperature and humidity monitoring and reminders
Environment Conditions	Temperature: 10–30 ℃, humidity: less than 60%
Standard Accessory	Transmission sample holder
Optional Accessory	Gas cell, liquid cell, Defused/Specular Reflection (Optional)
	Single/multiple reflection ATR	Znse Crystal ATR
		Ge Crystal ATR
		Diamond ATR
	IR Microscope, TGA etc (Optional)
	FTIR Intelligent Electronic Moisture-Proof Box (FTIR is highly sensitive to humidity; we strongly recommend that you opt for the FTIR Intelligent Electronic Moisture-Proof Box to protect it)
External Size (W×D×H)	490×420×240 mm
Shipping Size (W×D×H)	750×650×890 mm
N.W/G.W.	23.2 / 54 kg
