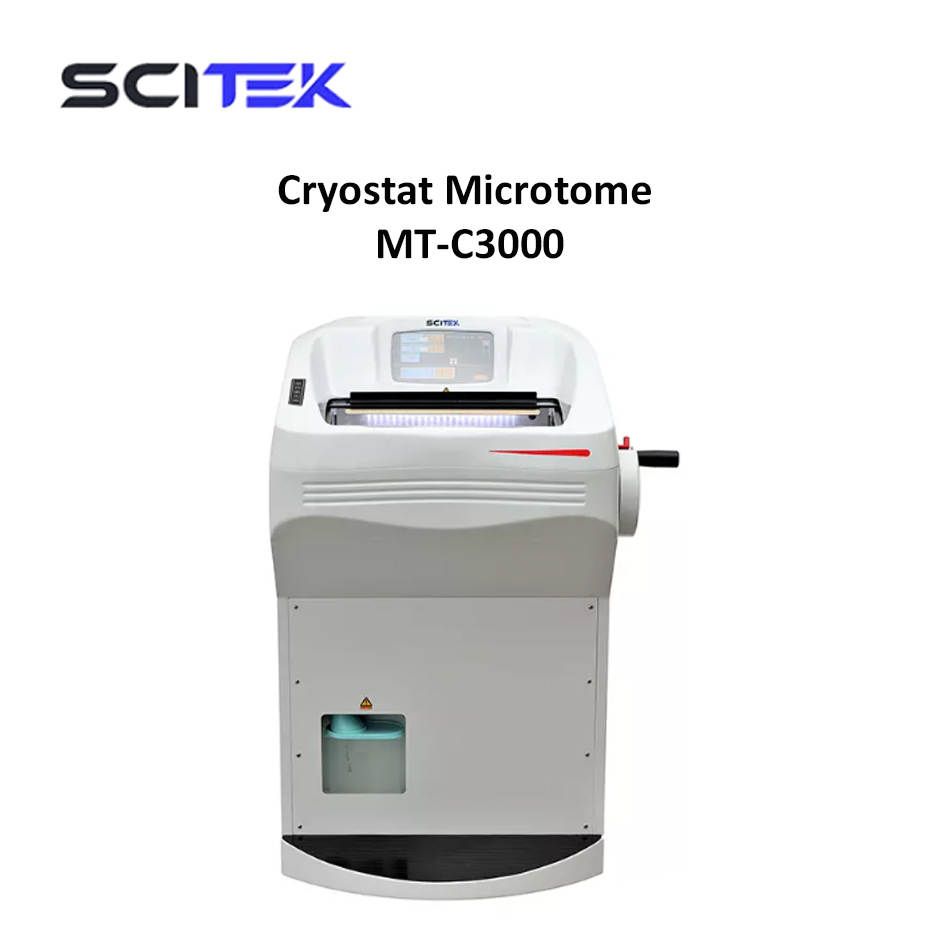

Cryostat Microtome MT-C3000 Scitek

Hanya Tersisa 1 lagi




Cryostat Microtome MT-C3000

Brand SCITEK

Origin CHINA


1. 10-inch color LCD touch screen, easy to operate.

2. Low-voltage DC LED lighting: low power, soft light.

3. UV disinfection: 15-minute cycles, can stop anytime.

4. With specimen retraction to promise the good section.

5. One-click switch between section and trimming mode during operation.

6. Counter displays total sections and thickness in real time.

7. Can reach set temperature within 30 minutes once start up.

8. Semi-conductor refrigeration,, minimum temperature reaches -60 .

9. Features scheduled defrost and instant defrost modes.

10. Smart sleep mode: chamber temp -5 to -15 during sleep; reaches set temperature within 15 minutes after wake, saving energy and extending lifespan.

11. Hand wheel locking function: 360° locked at any position.

12. Big Cryo table for 24 tissue specimens, including 6 semi-conductor Cryo spots.

13. Specimen clamping head auto-returns to start position when reaching limit.

 ---------------------------------------------------------------------------------------------------------------

Model

MT-C3000

Section Thickness Range

0.5-100 μm

Section Thickness Setting

0.5-5 μm, in 0.5 μm increments

5-20 μm, in 1 μm increments

20-50 μm, in 2 μm increments

50-100 μm, in 5 μm increments

Trimming Thickness Range

5-600 μm

Trimming Thickness Range

5-50 μm, in 5 μm increments

50-100 μm, in 10 μm increments

100-600 μm, in 50 μm increments

Maximum Specimen Size

55×80 mm

Specimen Retraction

0-60 μm, in 2 μm increments

Total Horizontal Specimen Feed

22 mm

Vertical Specimen Stroke

65 mm

Freezer Chamber Temperature

+10 to -60

Specimen Holder

+10 to -60

Time to Reach -45 for Cryo Table

60 min

Lowest Temperature for Cryo Table

-50

Lowest Temperature of Quick-freeze Shelf

Below -65

Number of Cryo Spots

18 (conventional)

Electric Coarse Feed

(0.9 mm/s; 0.45 mm/s)

Numbers of Quick-freeze

6

Power Supply

AC 220/110 V, 50/60 Hz

Power Draw

≥800 W

External Size (W×D×H)

700×760×1160 mm

Shipping size (W×D×H)

790×790×1370 mm

N.W. /G.W.

135/180 kg
