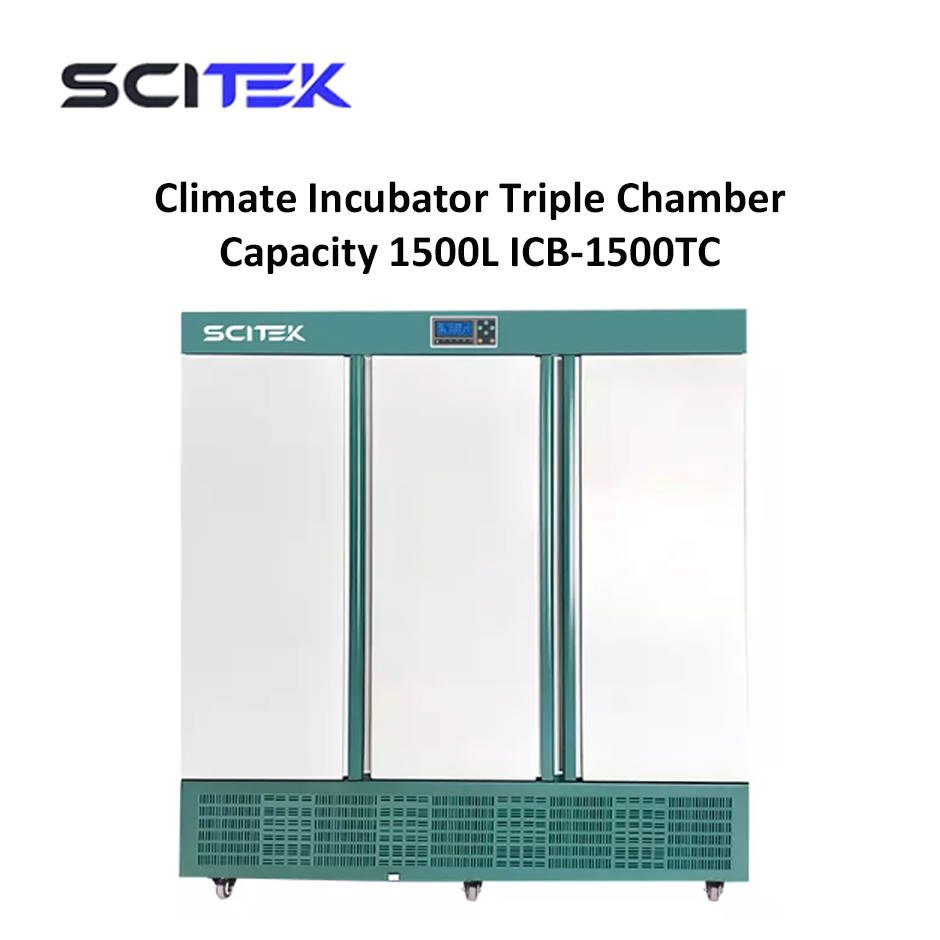

Climatic Incubator Triple Chamber Capacity 1500L ICB-1500TC Scitek

Hanya Tersisa 1 lagi




It is widely applicable to plant growth, seed germination, seedling cultivation, microbiological culture experiments, the rearing of insects and small animals, and the determination of biochemical oxygen demand (BOD) in water quality monitoring.

Suitable for fields such as biotechnology, agricultural and forestry science, aquaculture, and animal husbandry.

Climate Incubator Feature:

1. Control system: It adopts a microcomputer controller with 9 operating modes and a control method of cyclic switching between day and night.

2. LCD Display in real time.

3. Structure: The equipment features an internal stainless - steel material, and the outer box is made of cold - rolled steel plate with welding, spraying, and overall polyurethane foam insulation. It is corrosion - resistant and easy to clean. The vertical spacing of the partitions is adjustable.

4. Lighting system: wavelength range is 400-800nm, peak wavelength is 445nm, main wavelength is 650nm.

5. Refrigeration System: The core of the refrigeration system is a branded compressor paired with a full  copper heat exchanger. It uses a fluorine-free and environmentally friendly refrigerant.

6. Air Duct Structure: It has a horizontal gentle breeze round hole air outlet structure and a vertical air return circulation effect, ensuring the uniform air flow on each layer of the sample.

7. Humidification System: An external large-capacity water tank is used for humidification with an ultrasonic humidifier.

8. Alarm & Protection  Function: There will be alarms when the equipment is over-temperature, under-temperature, sensor failure, etc.

9. Forced Shutdown: If the equipment cannot return to the normal operating parameter range within 90 minutes after the protection function is activated, it will be forced to shut down to protect the safety of the samples and the experimental environment.

Model

ICB-1500TC

Capacity (L)

1500

Internal Size (W×D×H)(mm)

1730x620x1300

External Size (W×D×H)(mm)

1830x780x1930

Display

7 inch LCD screen

Temperature Range

Without lighting: 0–50 °C; with lighting: 10–50 °C

Temperature Resolution

0.1 °C

Temperature Fluctuation

±1 °C (The experimental condition is no-load, with an ambient temperature of 20°C and a humidity of 50% RH)

Temperature Uniformity

±1 °C

Sensor

PT100

Humidity Range

50–95%RH

Humidity Fluctuation

±3%–±7%RH

Illuminance (lx)

0–20000 (Stepless Adjustable)

Light source/lighting method

LED/3-sided illumination

Controller

Microcomputer

Display

Large high definition LCD

Time Setting

0~99hrs59mins / Continuous operation

Internal Material

Stainless Steel

External Material

Cold-rolled Steel Plate with Electrostatic Spraying

Shelves (Standard/ Max)

3/12

Refrigerant

CFC free (R404a 50HZ)/(R134a 60HZ)

Power (W)

4210

Working environment temperature

10–30 °C

Power supply

AC 220 V, 50/60 Hz

Shipping Size (W×D×H)(mm)

1920x870x2110

N.W/G.W (kg)

300/392
