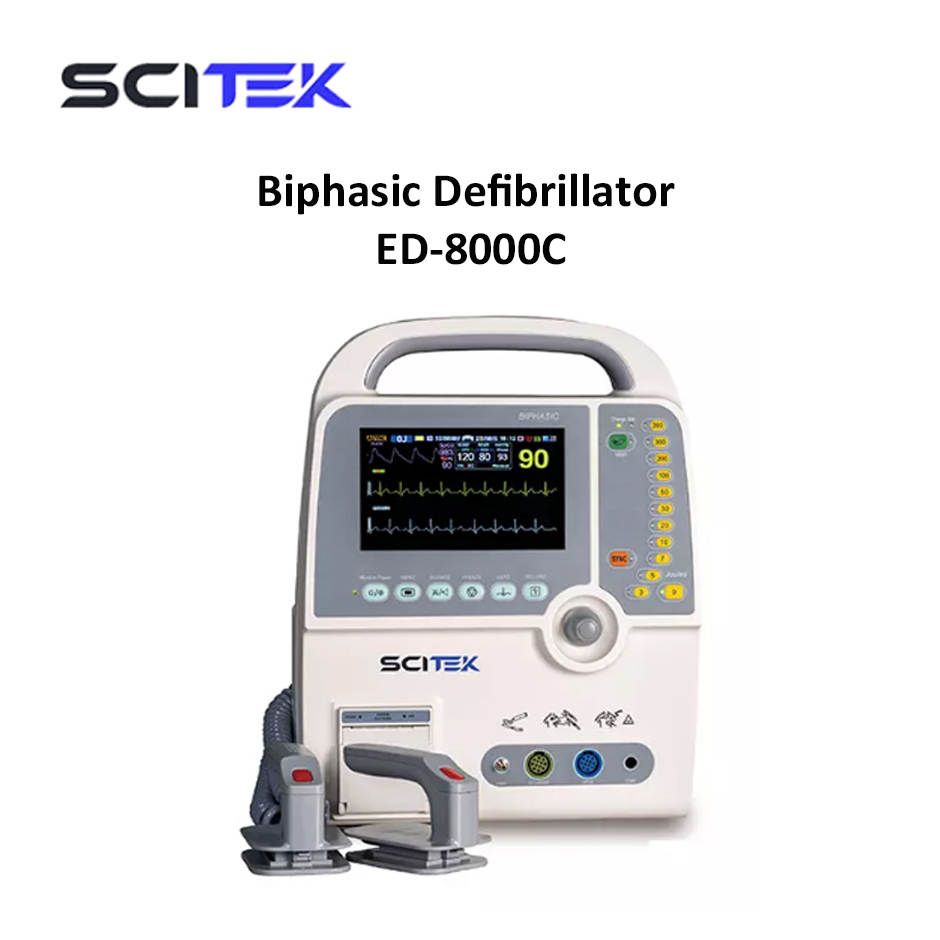

Model		ED-8000C
Display	Screen Type	High-resolution display, TFT colour display
	Screen Size	7 inches (17.7cm) diagonally
	Sweep Speed	12.5/25/50mm/sec
	Information	Heart Rate, Nibp, Spo2, Temp, Delivered Energy
	Resolution	800x480
ECG	Patient Connection	3-lead ECG cable, or 5-lead ECG cable, paddles
	Lead Selection	Displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V
	ECG Size	2.5, 5, 10, 20, 30 mm/mV display on monitor
	Heart Rate	20-350BPM
	Protection	With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
NIBP	Working Mode	Manual/Automatic
	Method	Automatic oscillation
	Cuff Type	Standard Adult; Optional Pediatric/Neonatal
Temp.	Measurement Range	0~50℃
	Resolution	0.1℃
Pulse Oximetry (SpO2)	Display	SpO2 value, waveform, Pulse
	Range	0~99%for adult, pediatric and neonatal patients
	Probe	Standard adult finger clip
	Optional	Pediatric Y-type clip and neonatal wrap
Defibrillator	Waveform	Biphasic
	Defibrillator Type	Manual External Synchronous/Asynchronous Defibrillation
	Charge Time	Less than 10 seconds to 360 Joules
	Energy Display	Monitor display indicates both selected and delivered energy.
	Charge Prompt Type	Voice and visual prompts.
	Energy Selection	Selectable at 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules
	Standard Adult/ Pediatric Paddles	Reusable external adult paddles (pediatric paddles integrated)
Battery Description	Standard Type	Li-ion battery Li1104c 11.1Vdc 4000mAh X2
	Standard Capacity	Up to 10 hours ECG monitoring or 60 full-energy discharges.
	Low Battery Indicator	Flashing low battery icon on display and Bat Indicator on the panel of defi-monitor be on
	Recharge Rate	80% in 3 hours.,100% in 5 hours
Built-in Recorder	Paper	50mm thermal.
	Printing Method	High-resolution, thermal print head
	Record date, time, sweep speed, waveform gain, heart rate, energy (joule) and ECG waveform
	Print Mode	HR exceed limits alarm recording
		Auto timed recording
		Real-Time Recording
		Defibrillation discharge trigger recording
Power Supply	AC-DC dual-use	Use the batteries AC100V~240V, 50/60 Hz
	Vehicle Voltage (Optional)	DC 12V
Main Unit	Portable
	Maximum Power (W)	600W
	Size(W×D×H)(mm)	320x205x410
	Shipping Size (W×D×H)(mm)	580x480x490
	N.W./G.W. (kg)	8.3/18
AED (Optional)	Voice prompts and screen prompts
	Energy Programmable Sequence	200, 300, 360 Joules;
		150,150, 200 Joules;
		50, 75, 100 Joules;
		30, 30, 50 Joules;
	Discharge Control	Control on device front panel
