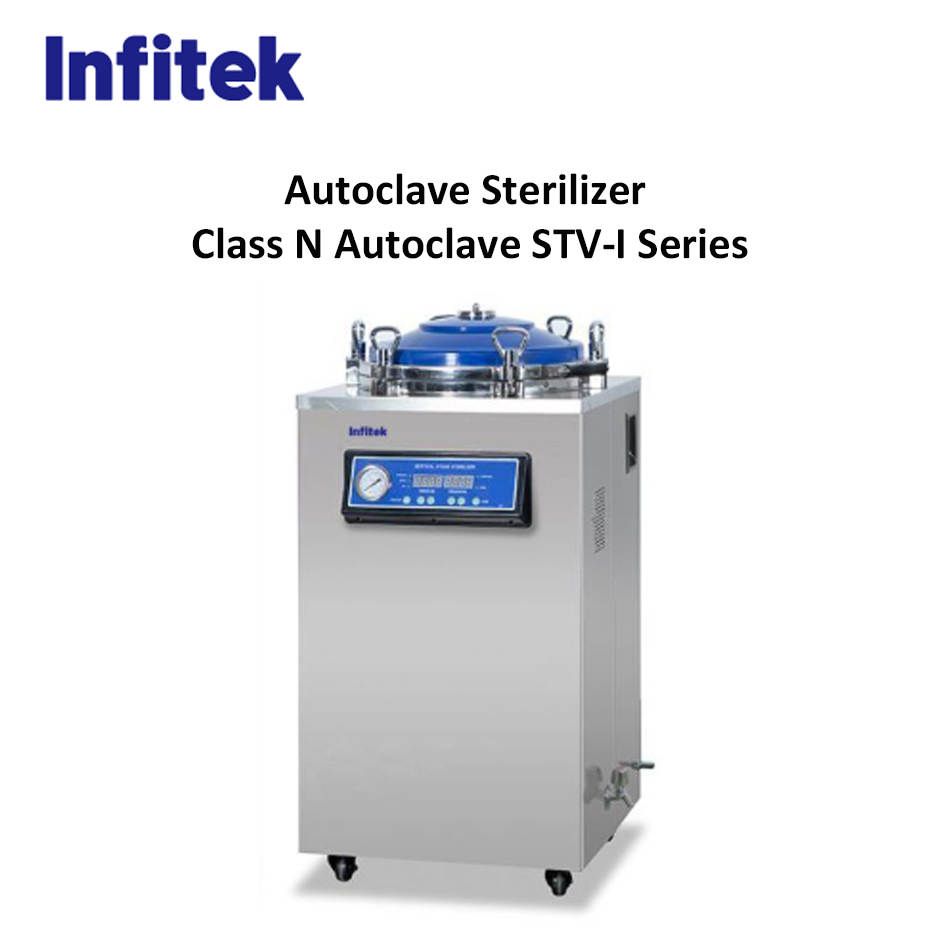

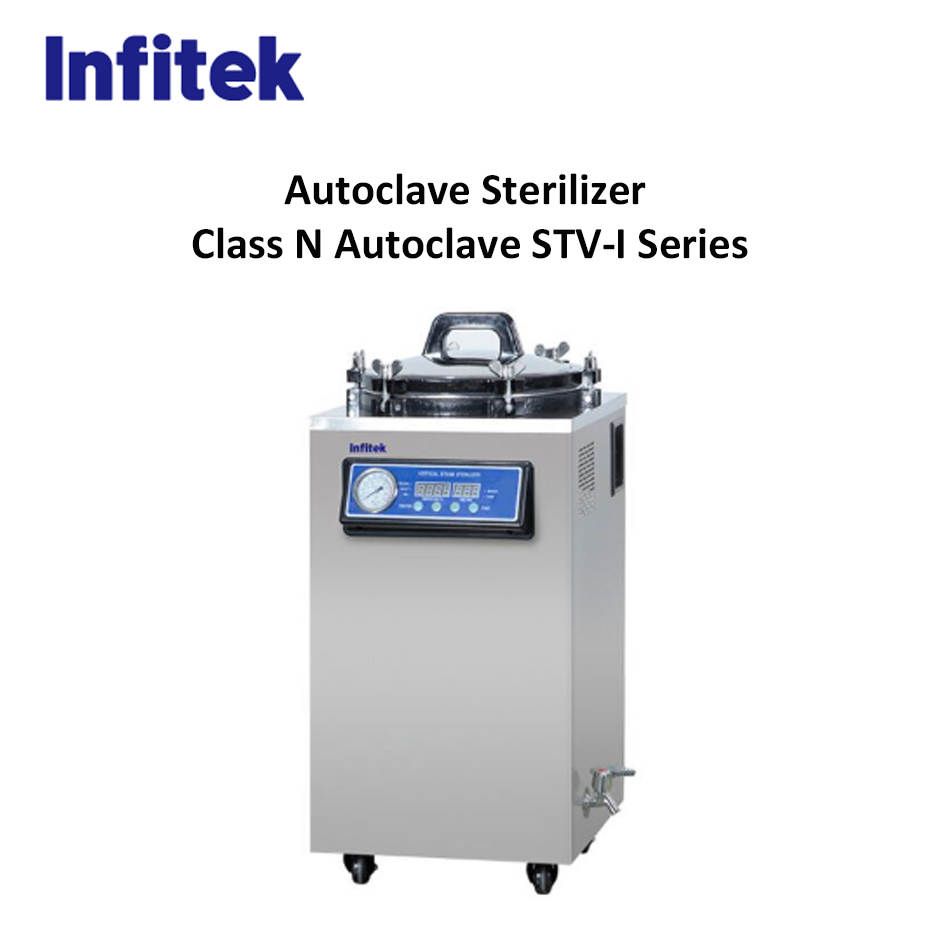

Autoclave Sterilizer Class N STV-I Series

Hanya Tersisa 1 lagi




Autoclave Sterilizer Class N STV-I Series

Brand INFITEK

Origin CHINA

Autoclave sterilizer (also referred to as steam sterilizers) is used to sterilize surgical equipment, laboratory instruments, pharmaceutical items, and other materials. It can sterilize solids, liquids, hollows, and instruments of various shapes and sizes. So, the autoclave sterilizer is widely used in medical places and laboratories to help sterilization efficiently.

Infitek STV-I Series Class N autoclave using steam from generator to create downward displacement, which pushes air out of the chamber. The vertical autoclave chamber is from 30 liters to 150 liters, it is particularly suitable for sterilizing unpackaged solid instruments.

1. Bolt Digital Displayed Automatic Type

2. High quality stainless steel material

3. Microcomputer automatic control, arbitrary set of sterilization parameters

4. Digital display and touch buttons

5. Standard test interface

6. Self-expanding seal

7. The container with automatic protection function: over temperature protection; over pressure protection self discharge; low water level protection, anti dry burning

8. With stainless steel bucket or basket

9. The unique three-time temperature rise and fall program achieves higher steam saturation and significantly improves the sterilization effect.

10. Buzzer reminder after sterilization, automatic stop.

11. Automatic cooling airsterilization end automatic exhaust steam

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Model

STV-30I

STV-50I

STV-75I

STV-100I

STV-120II

STV-150II

Volume

35L

50L

75L

100L

120L

150L

Power

2.5kW

3.5kW

4.5kW

4.5kW

4.5kW

6.0kW

Voltage

AC 220/110V,50/60Hz

Design pressure

0.25MPa

Design temperature

139

Rated working pressure

0.22MPa

Rated working temperature

134

Sterilization temperature

116~134

Sterilization time setting range

4~120 min

Chamber volume(mm)

Ø300*450

Ø350*515

Ø400*585

Ø450*615

Ø450*720

Ø500*7847

Bucket dimension(mm)

Ø275*395

Ø325*235*2

Ø375*265*2

Ø425*275*2

Ø425*315*2

Ø425*365*2

Basket dimension(mm) optional

Ø270*380

Ø320*220*2

Ø370*250*2

Ø420*265*2

Ø420*310*2

Ø470*340*2

Outer dimension(mm)

436*473*850

544*536*985

586*572*1072

617*627*1135

617*627*1205

660*676*1255

Package Dimension (W*D*H)(mm)

500*550*900

630*580*1200

680*630*1190

650*690*1230

650*690*1330

700*750*1370

N.W. / G.W. (kg)

41/58

53/75

61/84

78/104

79/105

90/122
