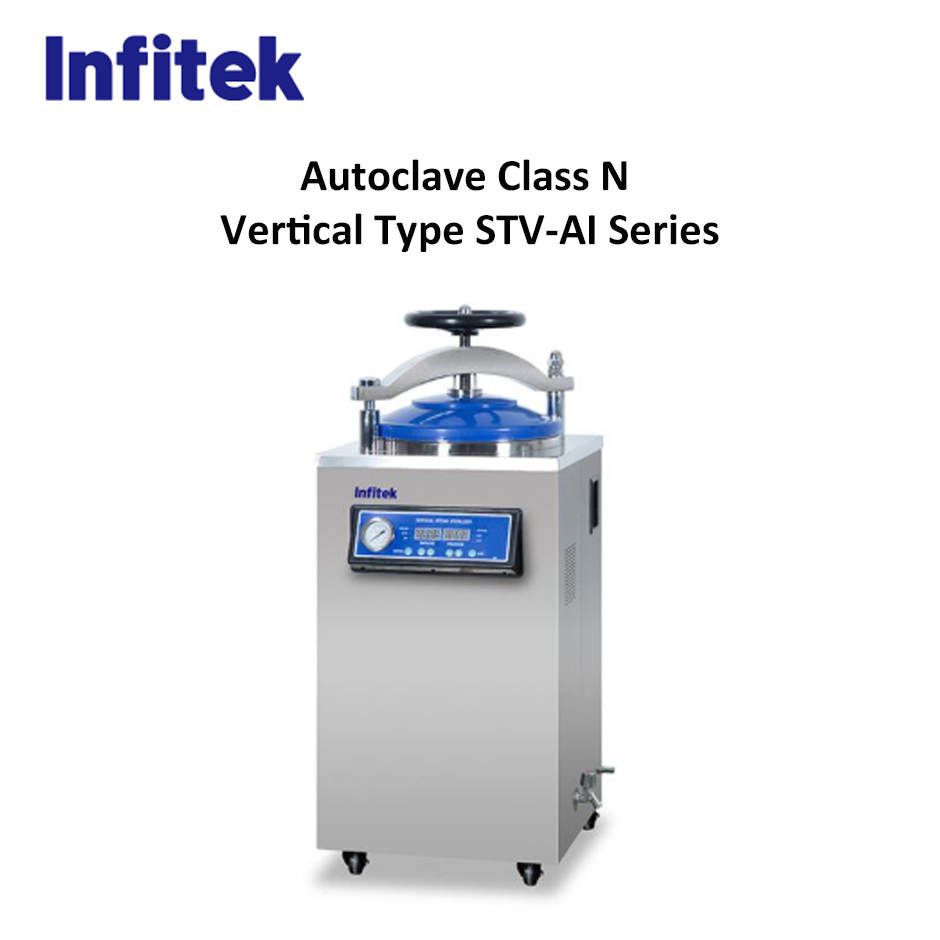

Autoclave Class N Vertical Type STV-AI Series
Type: STV-A35I, STV-A50I, STV-A75I, STV-A100I
Brand: INFITEK
Origin: China
Description
1. Hand wheel translation and quick opening structure, digital displayed automatic type
2. High quality stainless steel material
3. Microcomputer automatic control, arbitrary setting sterilization parameters.
4. Safety interlocking device
5. Digital display and Touch buttons
6. Standard test interface
7. Self-expanding seal
8. With automatic protection function: over temperature protection; over pressure self discharge protection ; low water level protection; anti dry burning.
9. With stainless steel bucket or basket
10. The unique three-time temperature rise and fall program achieves higher steam saturation and significantly improves the sterilization effect.
11. Buzzer reminder after sterilization, automatic stop.
12. Automatic discharge of cold air, automatic steam exhaust after sterilization.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
|
Model |
STV-A35I |
STV-A50I |
STV-A75I |
STV-A100I |
|
Volume |
35L |
50L |
75L |
100L |
|
Power |
2.5kW |
3.5kW |
4.5kW |
4.5kW |
|
Voltage |
AC 220/110V,50/60Hz |
|||
|
Design pressure |
0.25MPa |
|||
|
Design temperature |
139℃ |
|||
|
Rated working pressure |
0.22MPa |
|||
|
Rated working temperature |
134℃ |
|||
|
Sterilization temperature |
116℃~134℃ |
|||
|
Sterilization time setting range |
4~120 min |
|||
|
Chamber volume (mm) |
Ø300*450 |
Ø350*515 |
Ø 400*585 |
Ø450*615 |
|
Bucket dimension(mm) |
Ø275*395 |
Ø325*235*2 |
Ø375*265*2 |
Ø425*275*2 |
|
Basket Dimension (mm) (Optional) |
Ø270*380 |
Ø320*220*2 |
Ø370*250*2 |
Ø420*265*2 |
|
Outer dimension(mm) |
476*473*990 |
544*536*1100 |
586*576*1210 |
620*610*1275 |
|
Package Dimension(W*D*H)(mm) |
520*560*1120 |
580*630*1230 |
670*620*1350 |
690*650*1410 |
|
N.W. / G.W. (kg) |
62/74 |
80/103 |
90/115 |
106/134 |
