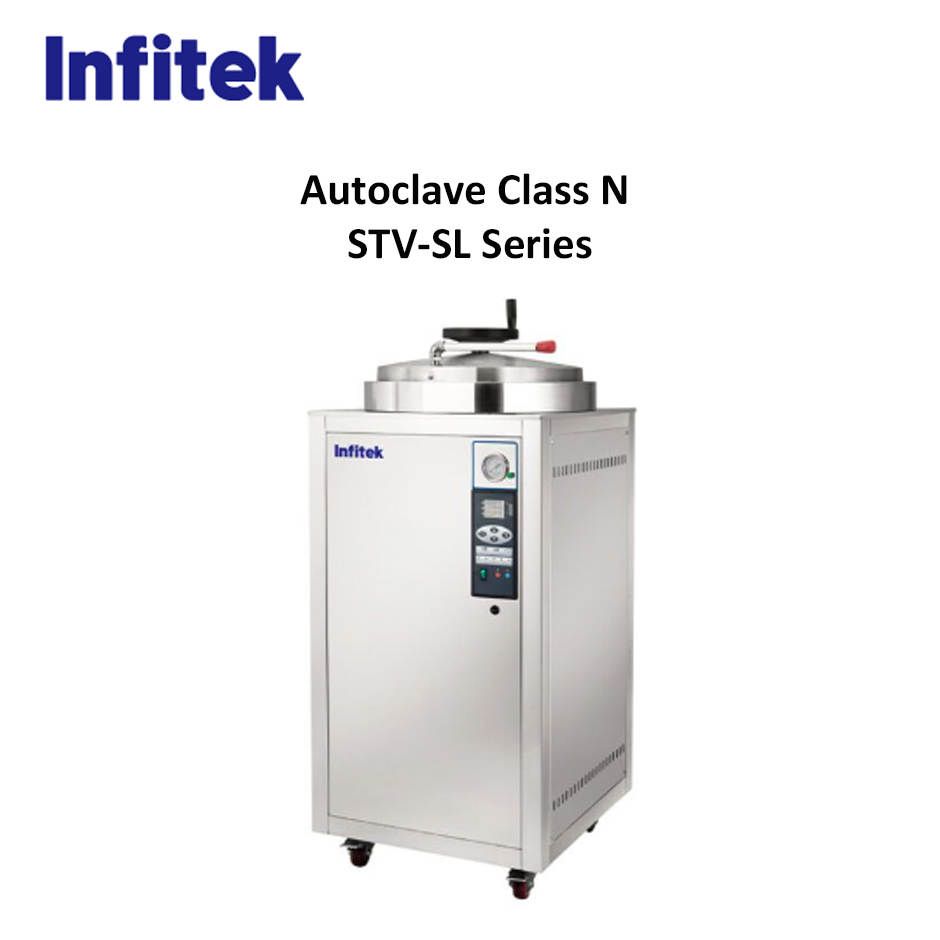

Autoclave Class N STV-SL Series

Hanya Tersisa 1 lagi




Autoclave Class N STV-SL Series

Brand INFITEK

Origin CHINA

It has digital display screen, microcomputer intelligent control system, safety interlock device, interface check, memory storage system, safety devices, etc.

1. Intelligent microcomputer control system: Using LED digital control system; Sterilizer will automatic alarm and shut down after sterilization finished.

2. Electric interlock device: The electronic and mechanical interactive safety control structure is adopted to ensure that the interlocking device automatically locks the cover when there is pressure in the pot, avoiding unsafe factors caused by miss operation or improper use.

3. Structure of cover’s opening: Using hand wheel rotary type cover to improve sealing and safety performance.

4. Preset program: Fixed programs can be preset for sterilization of soft covers.

5. Memory storage system: The last sterilization procedure can be stored for easy secondary operation.

6. Interface check: Provide temperature and pressure check interface; convenient to check multiple position temperature measurement.

7. Digital display screen and working indicator light display running state.

8. Safety devices: The safety interlock structure of electrical and mechanical interaction is adopted to ensure that the interlock device locks the cover handle when there is pressure in the pot, preventing the cover from being opened when there is pressure in the pot.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------

Model

STV-S100L

STV-S150L

STV-S200L

Volume

100L

(φ500*550mm)

150L

(φ500*760mm)

200L

(500*1000mm)

Basket Dimension (D*H )

470*230(*2)mm

470*230(*3)mm

470*230(*4)mm

Configuration

Semi-auto

Semi-auto

Semi-auto

Material

Stainless Steel

Stainless Steel

Stainless Steel

Pot Wall Thickness

3.0mm (Reference)

3.0mm (Reference)

3.0mm (Reference)

Time Setting Range

1~99h

1~99h

1~99h

Rated Working Pressure

0.217MPa

0.217MPa

0.217MPa

Temp. Setting Range

50~134

50~134

50~134

Electricity

380V/6kW

380V/6kW

380V/6kW

External Dimension

630*700*1200mm

630*700*1400mm

630*700*1600mm

Gross Weight

188kg

213kg

238kg

Package Dimension

760*800*1340mm

760*800*1530mm

760*800*1720mm
