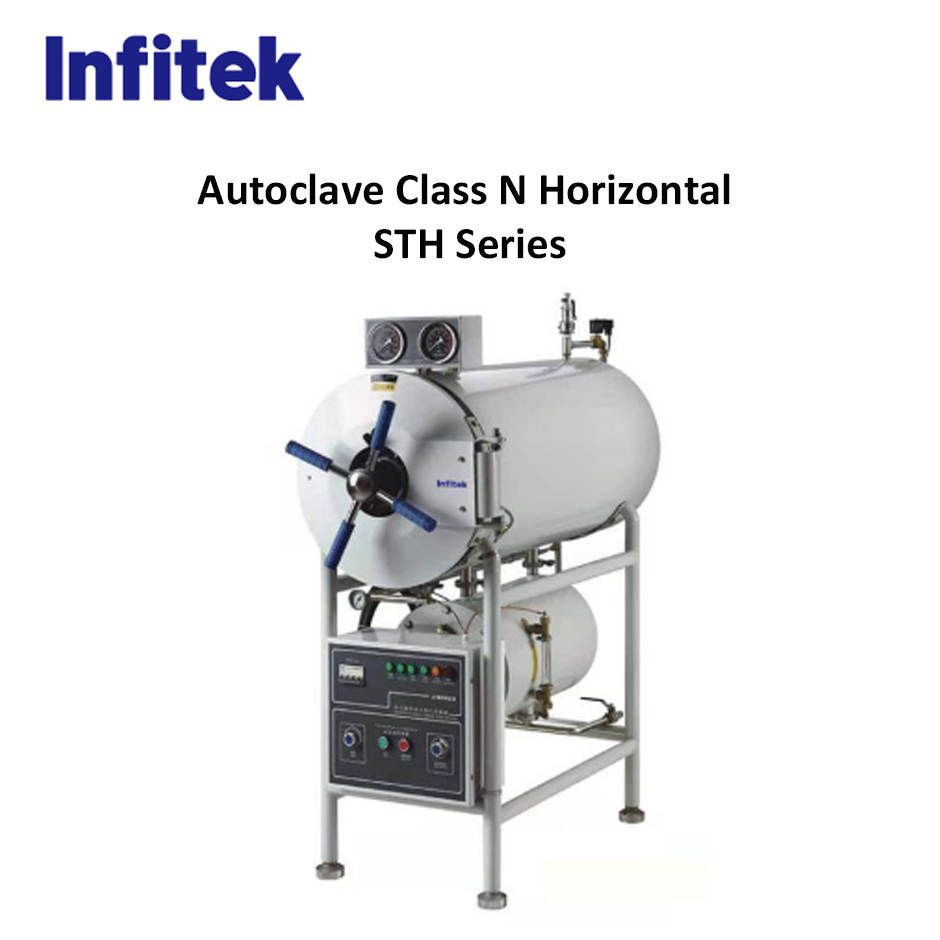

Autoclave Class N Horizontal STH Series
Brand INFITEK
Origin CHINA
Features:
1. Sterilizing course automatic controlled, easy to operate.
2. With drying function, suitable dressing drying.
3. With over-temperature, over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa. It can’t start if the door doesn’t close well.
5. The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam will exhaust to the water tank.
6. The power is automatically cut off, and it will cut off and alarm when the machine is short of water.
7. The chamber of the sterilizer is made of stainless steel.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
|
Model |
STH-150 |
STH-200 |
STH-280 |
STH-400 |
STH-500 |
||
|
Sterilizing Chamber |
150L |
200L |
280L |
400L |
500L |
||
|
Volume |
φ440×1000mm |
φ515×1000mm |
φ600×1000mm |
Φ700×1100mm |
Φ700×1300mm |
||
|
Working Pressure |
0.22MPa |
||||||
|
Working Temperature |
134℃ |
||||||
|
Temperature Range |
105℃ – 134℃ |
||||||
|
Time of Sterilization |
0-60 mins |
||||||
|
Time of Drying |
0-60 mins |
||||||
|
Heat Average |
≤±2℃ |
||||||
|
Power |
9KW/380V 50Hz |
9KW/380V 50Hz |
12KW/380V 50Hz |
15KW/380V 50Hz |
15KW/380V 50Hz |
||
|
External Dimension |
1350×600×1520 |
1400×670×1650 |
1400×770×1780 |
1430×880×1830 |
1800×900×1820 |
||
|
Transport Dimension |
1560×750×1850 |
1560×820×1930 |
1680×920×1950 |
1600×1050×2050 |
1850×1050×2050 |
||
|
G.W/N.W |
320/278 kg |
378/318 kg |
465/391 kg |
530/456 kg |
627/540 kg |
||
