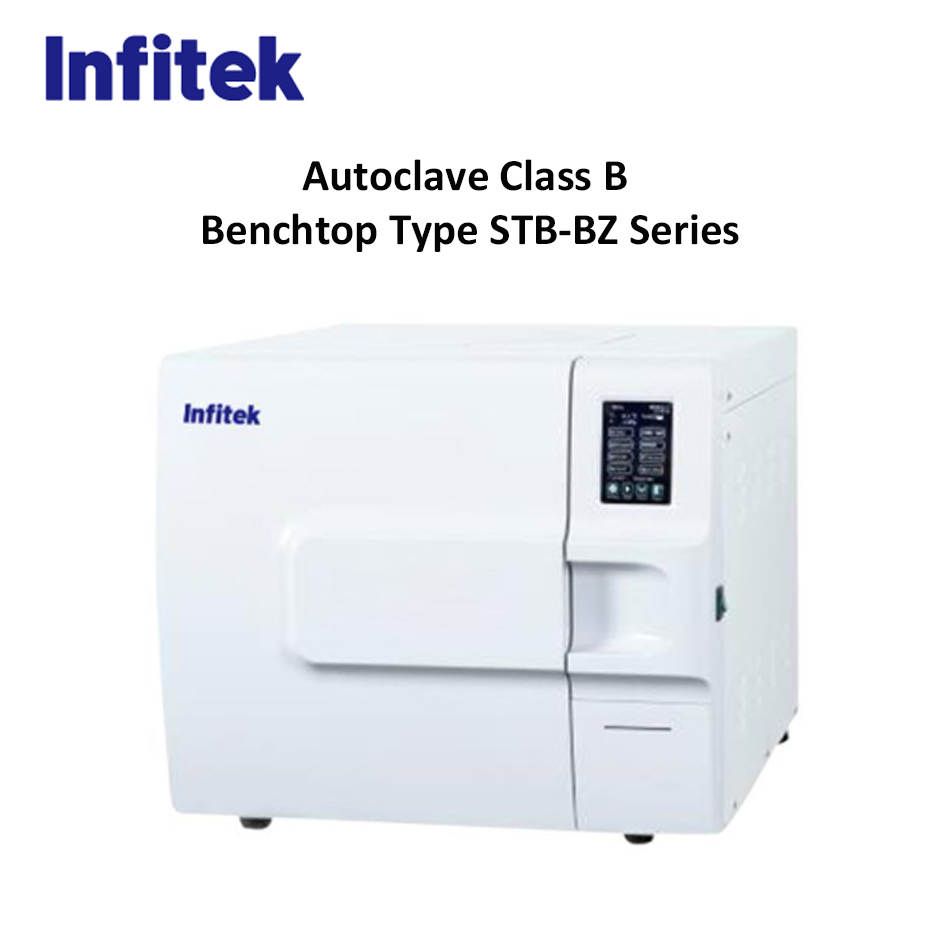

Autoclave Class B Benchtop Type STB-BZ Series

Hanya Tersisa 1 lagi




Autoclave Class B Benchtop Type STB-BZ Series

Model: STB-B18Z, STB-B23Z, STB-B45Z

Brand INFITEK

Origin CHINA

Automatic door switch

Quality stainless steel inner tank, sealed cover

Microcomputer control

Safety interlocking device

With BD test, HELIX test, Vacuum test.

LED display and inductive operation

Equipped with standard test interface

European CLASS B standard.

With automatic protection function: over temperature protection, over pressure protection, low water level protection, anti dry burning, safety door lock.

Three times per-vacuum

Buzzer reminder after sterilization, automatic stop.

Automatic discharge of cold air, automatic steam exhaust after sterilization.

Built-in steam generator to provide saturated steam quickly

 -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Model

STB-B18Z

STB-B23Z

STB-B45Z

Volume

18L

23L

45L

Power

2.2 kW

2.2 kW

3.5 kW

Voltage

AC220/110V,50/60Hz

Design pressure

0.25MPa

Design temperature

139

Rated working pressure

0.22MPa

Rated working temperature

134

Sterilization temperature

116-134

Sterilization time setting range

4-120min

Drying time setting range

0-240min

Chamber volume

Ø250×360

Ø250×450

Ø320×615

Outer dimension

505×710×450

505×710×450

660×850×570

Package Dimension(W*D*H)(mm)

790*590*520

790*590*520

770*980*720

G.W. (kg)

65

70

127
