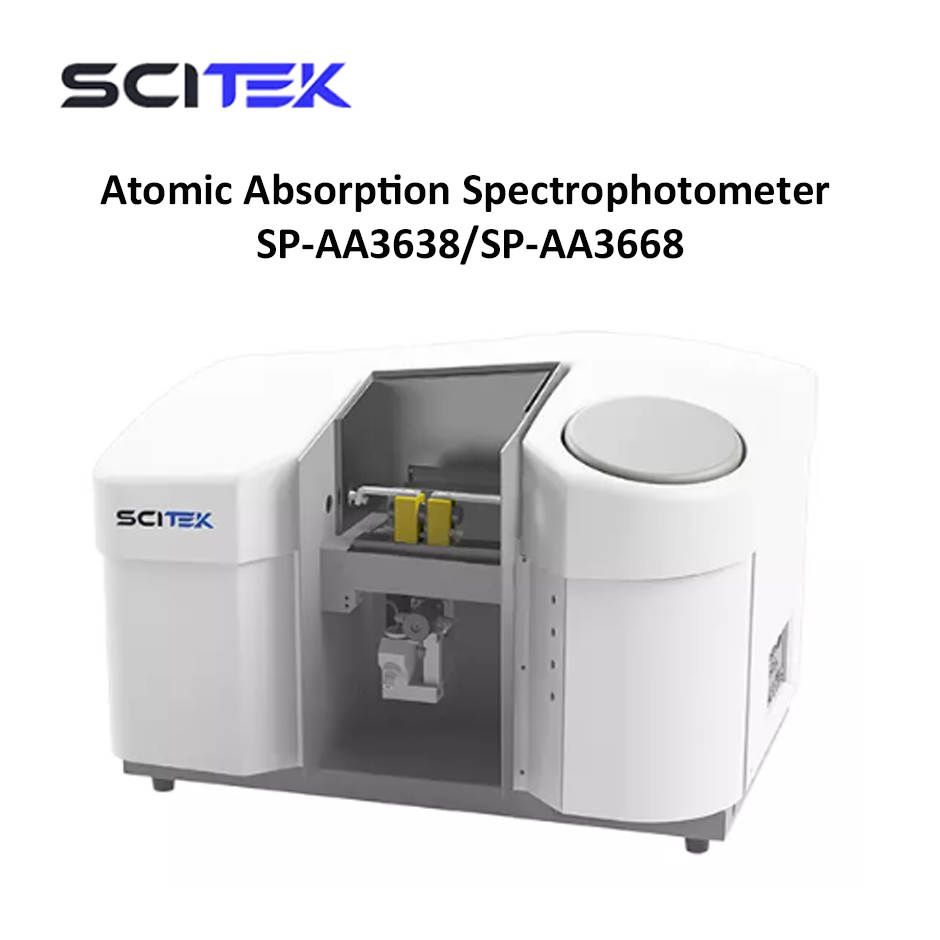

Atomic Absorption Spectrophotometer SP-AA3638 / SP-AA3668 AAS Scitek
The atomic absorption spectrophotometer is widely used in the analysis of major and trace elements in metallurgy, geology, mining, petroleum, light industry, agriculture, medicine, health, food and environmental monitoring.
Atomic Absorption Spectrophotometer Features:
1. Equipped with a complete software and hardware system. It is highly intelligent, easy to use and simple to operate, and meets the requirements of authority management, audit tracking and other requirements.
2. It has both flame and graphite furnace atomizers. The two test modes can be switched freely and matched automatically.
3. Fully automatic eight-lamp position rotating lamp stand, automatic switching, free setting of work lamp/preheating lamp, automatic call of optimal analysis parameters and analysis conditions.
4. Total reflection optical system, full-band achromatic, automatic wavelength scanning, automatic peak search.
5. Both the flame and graphite furnace systems have deuterium lamps and self-priming background subtraction to meet the detection needs of complex matrix samples.
6. Full titanium burner, stable combustion and fast heat balance.
7. Longitudinal heating graphite furnace technology achieves uniform temperature of the graphite tube.
8. Reliable multiple protection systems, real-time flame monitoring, acetylene leakage monitoring and protection, real-time monitoring of abnormal pressure, and cooling water monitoring.
9. The graphite furnace atomization system has alarm functions for insufficient cooling water flow, insufficient argon pressure, excessive temperature of the graphite furnace, abnormal power supply temperature, and poor contact during graphite tube installation, and automatically cuts off the temperature rise program to ensure the safety of the operation and use process.
---------------------------------------------------------------------------------------
|
Model |
SP-AA3638 |
SP-AA3668 |
|
|
Optical System |
Optical System |
Single Beam |
Double Beam |
|
Monochromator |
Czerny-Turner type, focal lengths at 350mm |
||
|
Grating |
Grating 1800 lines/mm, scintillation wavelength 250nm |
||
|
Spectral Bandwidth (nm) |
0.1, 0.2, 0.4, 0.7, 1.4, 2nm |
||
|
Automated slit selection |
|||
|
Wavelength Range (nm) |
185-900nm |
||
|
Wavelength Accuracy (nm) |
0.20 nm |
0.15nm |
|
|
Wavelength Repeatability (nm) |
≤0.10nm |
≤0.05nm |
|
|
Spectral Bandwidth Deviation |
±0.02 nm |
||
|
Lamp Stand |
8 |
||
|
Element Lamp Type |
Cu lamp, Cd lamp(Standard accessory) |
||
|
Other element lamp is optional accessory |
|||
|
Photometric Performance |
Reading Mode |
Transmittance, absorbance, concentration |
|
|
Photometric Range |
0-125%, -0.1-3.00A |
||
|
Static Baseline Drift (Cu) |
±0.003A/30min |
±0.003A/30min |
|
|
Dynamic Baseline Drift (Cu) |
±0.005A/15min |
±0.005A/15min |
|
|
Background Correction |
Deuterium lamp≥ 40x (1Abs), self-priming≥ 80x (1Abs) (optional) |
Deuterium lamp≥ 40x (1Abs), self-priming≥ 80x (1Abs) (optional) |
|
|
Flame System |
Characteristic Concentration (Cu) |
≤0.035ug/ml |
≤0.035ug/ml |
|
Detection Limit (Cu) |
≤0.006ug/ml |
≤0.004ug/ml |
|
|
Repeatability (Cu) |
RSD≤0.6% |
RSD≤0.5% |
|
|
Acetylene Flow Control |
Auto 12-Level |
||
|
Air Assist Control |
Auto 4-Level |
||
|
Burner Lift |
Automatic lifting |
||
|
Burner Head |
Titanium 100mm burner |
||
|
Nebulizer |
High efficiency glass nebulizer |
||
|
Spray Chamber |
Corrosion-resistant material spray chamber |
||
|
Safety Protection |
Automatically cut off gas in case of low pressure, power failure, flame out, or burner mismatched |
||
|
Graphite Furnace |
Characteristic Amount |
Cd≤0.8pg,Cu≤20pg |
Cd≤0.8pg,Cu≤20pg |
|
Detection Limit |
Cd≤1.0pg,Cu≤10pg |
Cd≤0.8pg,Cu≤5pg |
|
|
Repeatability (Cd) | RSD≤3% |
RSD≤2.5% |
|
|
Heating Range of Graphite Furnace |
Room temperature-3000℃ |
||
|
High Power Heating Range |
1500-3000℃ |
||
|
Slope and Holding Time |
1s-255s |
||
|
Heating Rate |
Maximum heating rate 2000°C/s |
||
|
Atomization Heating Mode |
Light-controlled heating, Time-controlled heating, General heating |
||
|
Protective Gas Flow Outside Pipe |
1 L/min |
||
|
Protective Gas Flow Inside Pipe |
4-speed adjustable (0, 50, 200, 250ml/min flow) |
||
|
Safety Protection |
Cooling water flow, Protective gas pressure, Furnace body temperature, Power supply temperature, Graphite furnace installation alarm |
||
|
Data Processing |
Measuring Method |
Measuring method |
|
|
Concentration Calculation Method |
Concentration calculation method |
||
|
Repeat Measurement Times |
Repeat measurement times |
||
|
Report Printing |
Report printing |
||
|
Other |
Computer |
External connect |
|
|
Ambient Temp |
10℃-30℃ |
||
|
Ambient Humidity |
40%-85% |
||
|
Power Supply |
220V, 50/60HZ |
||
|
External Size (W x D x H) (mm) |
830x650x560 |
||
|
Shipping Size (W x D x H) (mm) |
1000x780x810 |
||
|
N.W./G.W. (kg) |
110/130 |
||
|
Standard Accessory |
Software, Cd Hollow cathode lamp, Pipette |
||
|
Optional Accessory |
Computer, Printer, Autosampler, Recirculating cooling water system |
||
