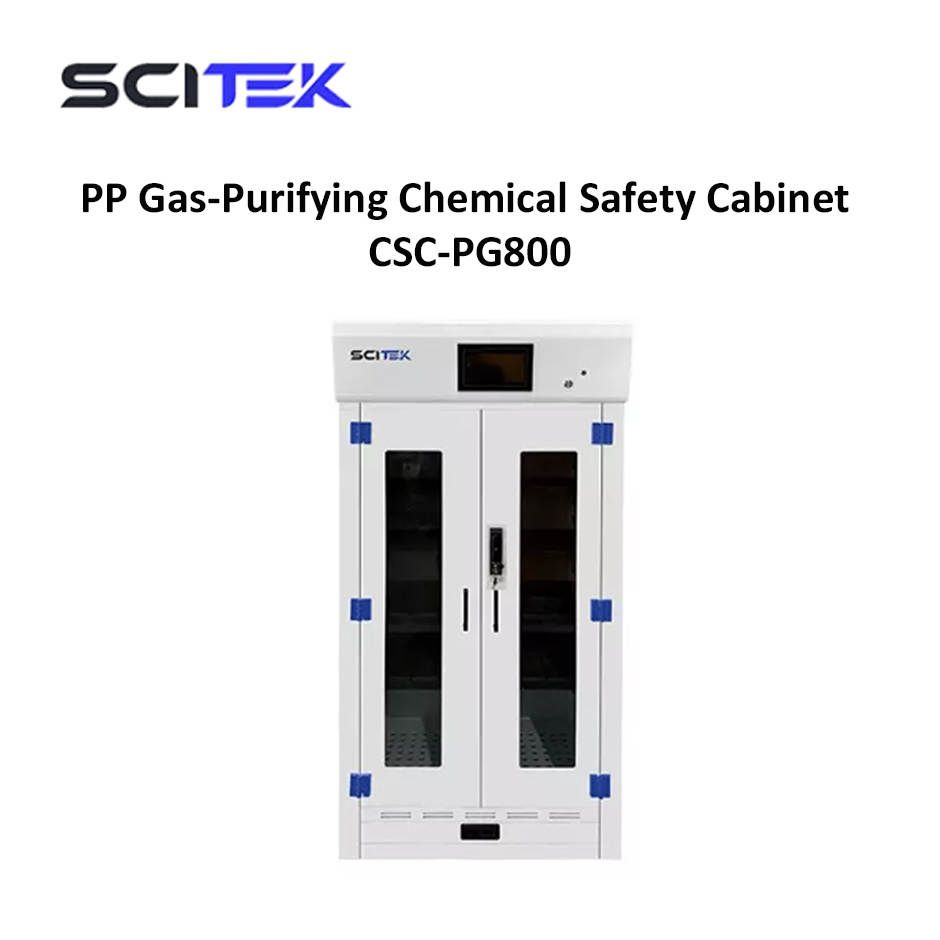

PP Gas-Purifying Chemical Safety Cabinet CSC-PG800

Hanya Tersisa 1 lagi




Working principle of PP Gas-Purifying Chemical Safety Cabinet:

1. Fan: The top-mounted fan generates negative pressure by drawing air from the laboratory into the cabinet.

2. Gas Filtration: Harmful gases from stored reagents are filtered by the module, with toxic molecules intercepted and clean air returned to the room.

3. Air Purification: Ensures filtered air is safe for personnel, improving indoor air quality.

4. 24/7 Operation: Recommended to keep the cabinet running continuously to maintain laboratory air quality.


PP Gas-Purifying Chemical Safety Cabinet Advantage:

1. Easy installation without complex pipelines, no waste gas discharge, eco-friendly.

2. Customizable top filtering module for various chemical categories.

3. Advanced filtration technology absorbs harmful gases, dust, and other substances.

4. No air conditioning needed, efficient energy savings.

5. Portable and convenient for nearby storage, enhancing access and work efficiency.


Model

CSC-PG800

External Size (W×D×H)

800×500×1800 mm

Internal Size (W×D×H)

784×409×1350 mm

Molecular Filter Size (W×D×H)

400×370×50 mm

Primary Filter Size (W×D×H)

400×370×46 mm

Display

7-inch LCD touch screen

Layer Board

3

Load Bearing

30 kg for each floor

Air Handling Capacity

260 m³/h

Cabinet Volume

0.43 m³

Storage Capacity

160 bottles (500 mL)

Voice

60 dBA

Power Supply

AC 220/110 V, 50/60 Hz

Consumption

100 W

Standard Accessory

1. Molecular filter: 2 sets;
2. Primary filter: 1 unit;
3. Fan: 1 unit;
4. Layer board: 3 pieces;
5. Control system: 1 set;
6. VOC alarm system: 2 sets;
7. Temperature and humidity alarm system: 1 set;
8. Item list function: 1 set;

9. Power cord: 1 piece;

10. Locks: Double lock

Optional Accessory

1. OG: Organic filter;
2. AG: Inorganic Filter;
3. AM: Ammonia filter;
4. FO: Formaldehyde filter;
5. HEPA H14: Efficient HEPA Filter;

Shipping Size (W×D×H)

860×630×2050

G.W.

135 kg
