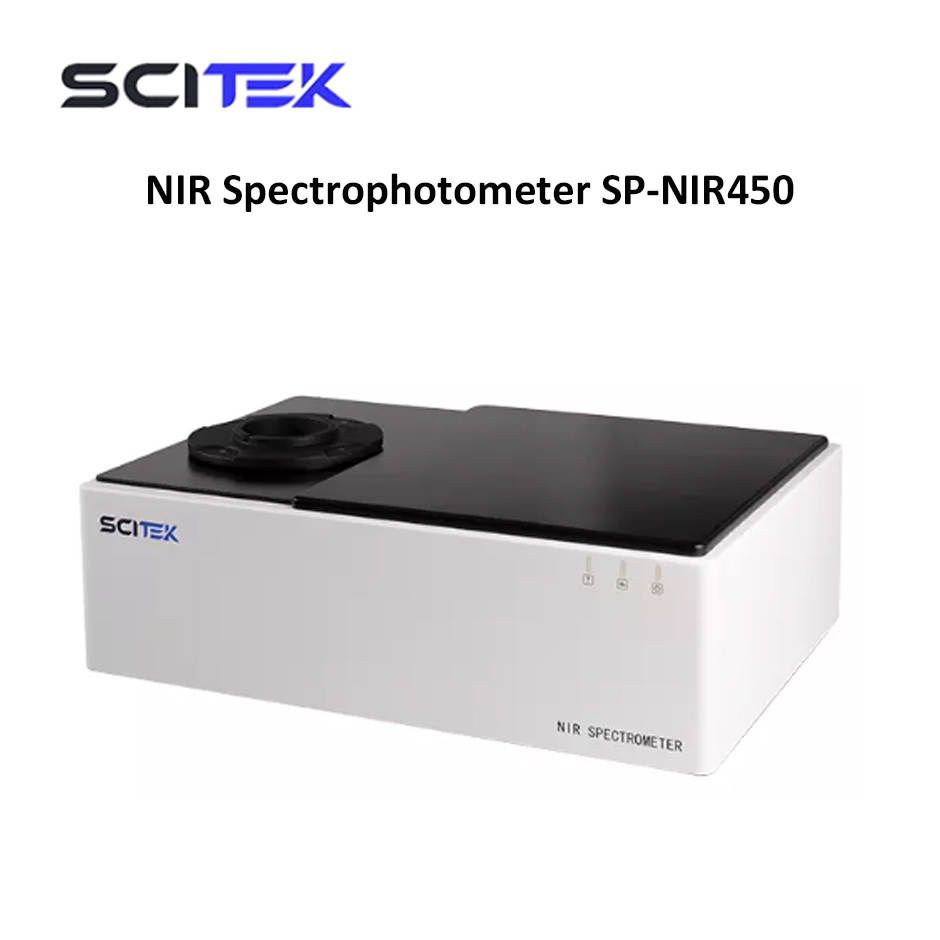

NIR Spectrophotometer SP-NIR450 Scitek

Hanya Tersisa 1 lagi




NIR Spectrophotometer Features:

1. There is no need to treat the sample before testing to protect the integrity of the sample.

2. 900nm-2500nm ultra-wide spectral range, fast analysis speed.

3. Core parts are all internationally famous brands

4. Built-in high-quality PTFE reference module automatic reference calibration to ensure the accuracy of measurement results.

5. Equipped with integrating sphere diffuse reflection system, large sampling spot and sample turntable

6. All tests use NIST traceable standards.

7. Liquid, powder, support particles, film and other forms of sample detection.

8. The instrument's real-time environmental temperature and humidity monitoring allows users to optimize the measurement conditions.

9. Simple operation and intuitive user interface.

10. Can establish authoritative and professional near-infrared quantitative and qualitative analysis models.

 ---------------------------------------------------------------------------------------------------------------------

Model

SP-NIR450

Measurement Mode

The diffuse reflection sample cell

Detector

Japan hamamatsu cooled InGaAs

Spectral Bandwidth(nm)

12

Wavelength Range(nm)

900-2500 nm

Wavelength Accuracy(nm)

≤0.2

Wavelength Repeatability(nm)

≤0.05

Stray Light(%)

≤0.1

Absorbance Noise(Abs)

≤0.0005

Analysis Time

1min (adjustable)

Data Transmission Mode

USB2.0

Calibration Technology

MPLS Modified least squares regression calibration technology

DPLS Spectrum identification and qualitative analysis technology

Item

Content

Electricity

90-250V50Hz (or 60Hz)

Ambient Temperature ()

5-35

Ambient Humidity (%RH)

5-85

Size(W×D×H)(mm)

540×380×220
