1. LCD display with bright illumination
2. Automatic defrost function
3. High precision speed and temperature control
4. Door open protection
5. Memorized and protected operating parameters
6. Function of encrypted and locked operating parameters
7. Continuously running or timing
8. Unique slow-start design, unique drive system and advantaged air duct design
9. High quality servo motor
10. Multi-steps rotate speed, temperature and time control systems
11. Slow accelerate and decelerate design

Auxiliary Functions

Ultra-low speed start, Adjustable start speed, Overspeed auto-protection, Watch dog timer, Parameters Storage, Encryption parameters, Electricity incoming recovery, Refrigeration unit overload protection, Sound and light alarm when upper and lower overtemperature, Function of lighting (optional) and UV disinfection (optional), Automatically stop when opening the door

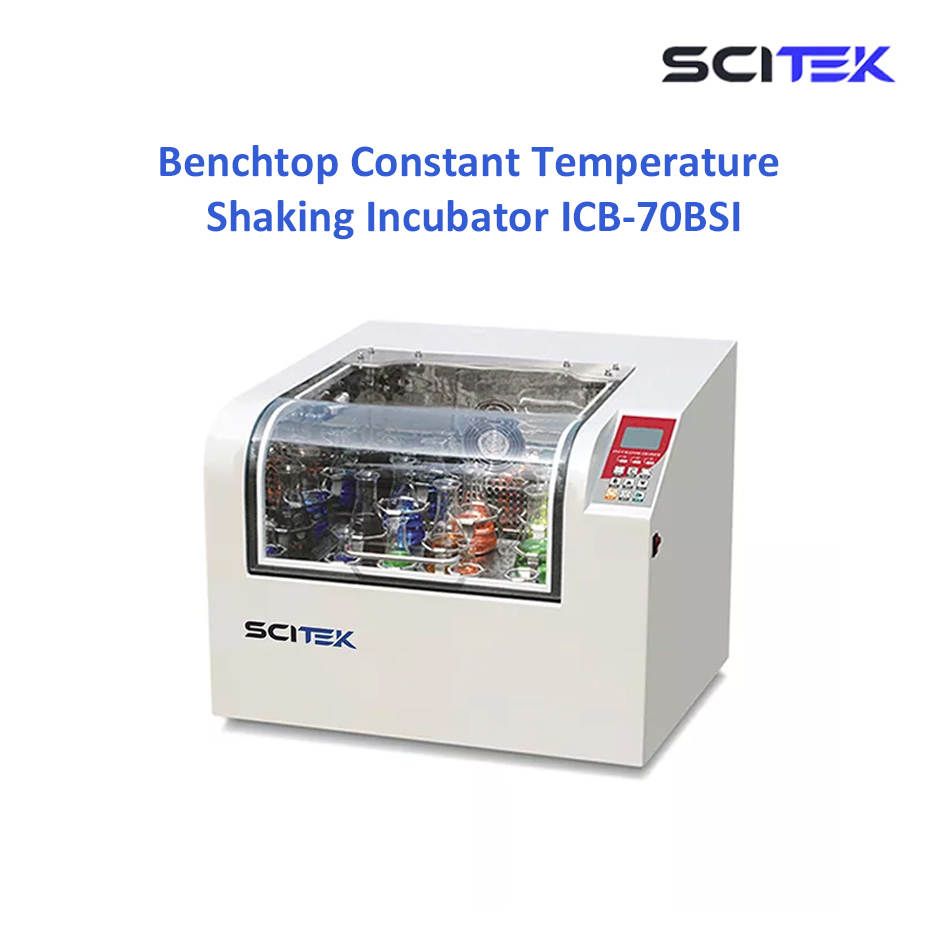

Model ICB-70BSI

Display: LCD display

Controller: PID

Circulation Mode: Forced convection

Shaking Mode: Convolution

Drive Mode: Unidimensional drive

Capacity(L): 70L

Temperature Range: 4~65℃

Temperature Accuracy: ±0.1℃

Temperature Uniformity: ±0.5℃(at 37℃)

Cyclotron Frequency Range: 20-450(r/min)(To do static culture)

Cyclotron Frequency Sensitivity: ±1 r/min

Orbit Range: Φ26 mm

Refrigerant: Environmentally friendly refrigerant

Timing Range: 0-9999h or min

Standard Capacity

Clamp flask: 50mlx4+100mlx4 + 250mlx3+500mlx3

Max. Capacity: Clamp flask:100ml x23 or 250ml x15 or 500ml x9 or 1000ml x6 or 2000ml x4

External and Internal Material: Stainless steel

Power Supply: AC220V±10%, 50/60Hz;110V, 60Hz

Consumption: 650W

Shaking Plate Size: 450x410 mm

Size: 750(W) x 710(D) x 520(H) mm

Shipping Size: 900(W) x 895(D) x 725(H) mm

Unit Weight: 110kg

Gross Weight: 145kg
