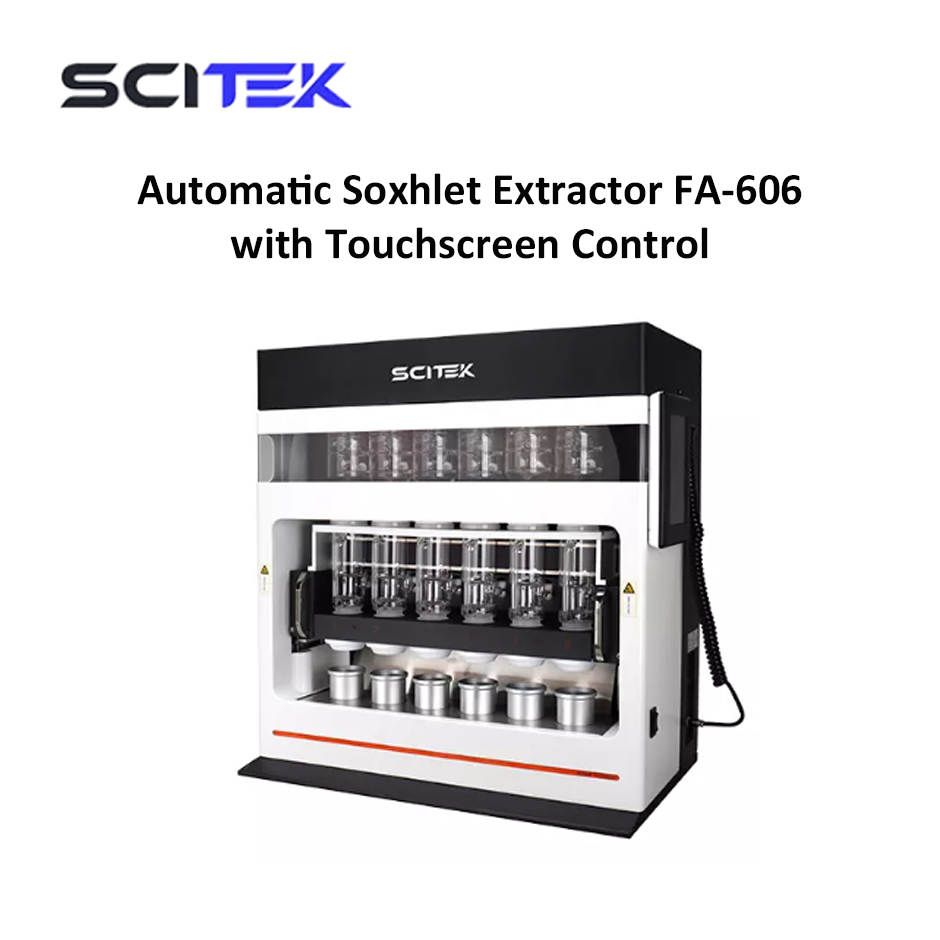

Automatic Soxhlet Extractor FA-606 with Touchscreen Control

Hanya Tersisa 1 lagi




Automatic Soxhlet Extractor Feature:

FA-606 automatic soxhlet extractor adopts an all-metal heating module widely used in agriculture, chemical industry, environmental testing, etc. It is especially suitable for extracting soluble organic compounds in soil, drugs and detergents.

There are 5 extraction methods: continuous flow extraction, thermal extraction, Soxhlet thermal extraction, Soxhlet extraction and CH standard method.

1. It is highly intelligent and supports one-button automatic extraction, preheating, dilution, solvent recovery, etc.

2. The fat analyzer is customized with PTFE and glass to block all impurities for high accuracy.

3. Comprehensive temperature and flow control, reducing condensate consumption and being more environmentally friendly.

4. Suitable for all organic solvents to meet the user's various needs

5. All-metal integral heating module, fast temperature rise and good results

6. Built-in ether leakage detection device to ensure experimental safety

7. An efficient solvent recovery system reduce the cost of experiments

-------------------------------------------------------------------------------------------

Model

FA-606

Display

7 inches color touch screen

Temperature Range

RT+5300

Measuring Range

0.1100%

Temperature Accuracy

±1

Reproducibility

Relative error 1%

Sample Weight

0.515g

Capacity Per Batch

6pcs/batch

Solvent Cup Volume

150mL

Solvent Recovery

≥85%

Controller

External via cable

Power Supply

AC220V±10%, 50Hz

Power

2.6KW

Size(W×D×H)(mm)

650×380×720

Shipping Size(W×D×H)(mm)

880x590x980

N.W./G.W. (kg)

50/100
